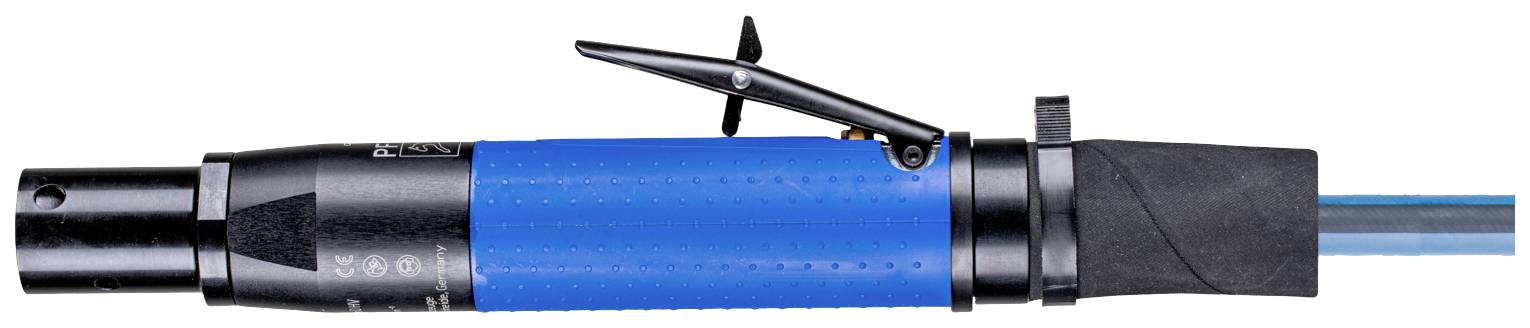

PFERD TOOLS PMA 10/200 HV 80703135 Pneumatic motor 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DL-Mach. And accessories PMA 10/200 HV
- No dust on the workpiece sideThe compressed air drive with DIN 10 connection is suitable for variable use with different rigid extensionsSafe working by dead man switching
Technical specifications
- Exhaust outlet: RearSpeed: 20000 RPMHeight: 46 mmInner Ø Inlet air hose: 13 mmAir consumption (idling): 1.38 m³/min.Air consumption (under load): 1.1 m³/min.Valve version: LeverPower 1000 watts
- Product type
Pneumatic motor
- External thread
1/2" (12.5 mm)
- (Ø)
13 mm
- Length
283 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632126 PFERD TOOLS PMA 10/200 HV 80703135 Pneumatic motor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2632126 PFERD TOOLS PMA 10/200 HV 80703135 Pneumatic motor 1 pc(s)
Description
The compressed air motor has a DIN 10 connection. The air outlet duct of the compressed air drive is located at the rear. The powerful compressed air motor is suitable for rigid extensions with motor connection DIN 10. It may only be used with oil. Suitable extensions: STV 9, STV 13, STV 20, STV 27, STV 33. 1 m from and 2.5 m supply air hose with 1/2" external thread connection, 2 clamping wrenches. The drive is equipped with a dead man circuit through the lever valve.
