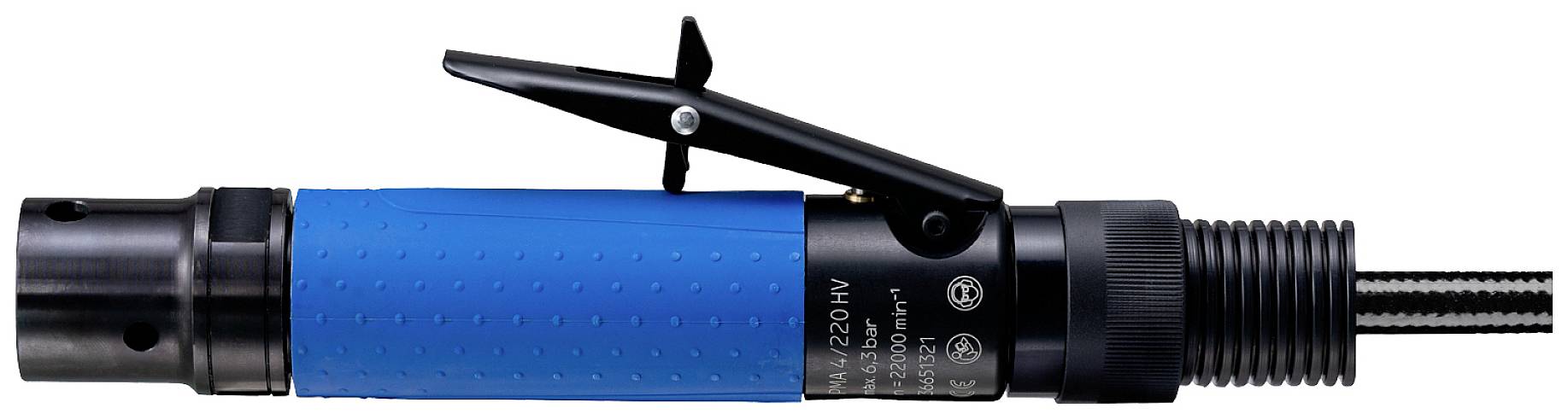

PFERD TOOLS PMA 4/220 HV 80703306 Pneumatic motor 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DL-Mach. And accessories PMA 4/220 HV
- No dust on the workpiece sideThe compressed air drive with DIN 10 connection is suitable for variable use with different rigid extensionsVery powerful in a compact designSafe working by dead man switchingEasy to run at medium power
Technical specifications
- Exhaust outlet: RearSpeed: 22000 RPMHeight: 39 mmInternal Ø Supply air hose 8 mmAir consumption (idling): 0.98 m³/min.Air consumption (at load): 0.87 m³/min.Valve version: LeverPower 440 Watts
- Product type
Pneumatic motor
- External thread
1/4" (6.3 mm)
- (Ø)
8 mm
- Length
215 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632129 PFERD TOOLS PMA 4/220 HV 80703306 Pneumatic motor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2632129 PFERD TOOLS PMA 4/220 HV 80703306 Pneumatic motor 1 pc(s)
Description
The compressed air motor has a DIN 10 connection. The air outlet duct of the compressed air drive is located at the rear. The powerful compressed air motor is suitable for rigid extensions with motor connection DIN 10. Suitable extensions: STV 9, STV 13, STV 20, STV 27. 1 m from and 2.5 m supply air hose with 1/4" external thread connection, 2 clamping wrenches. The drive is equipped with a dead man circuit through the lever valve.
This text is machine translated.
This text is machine translated.
