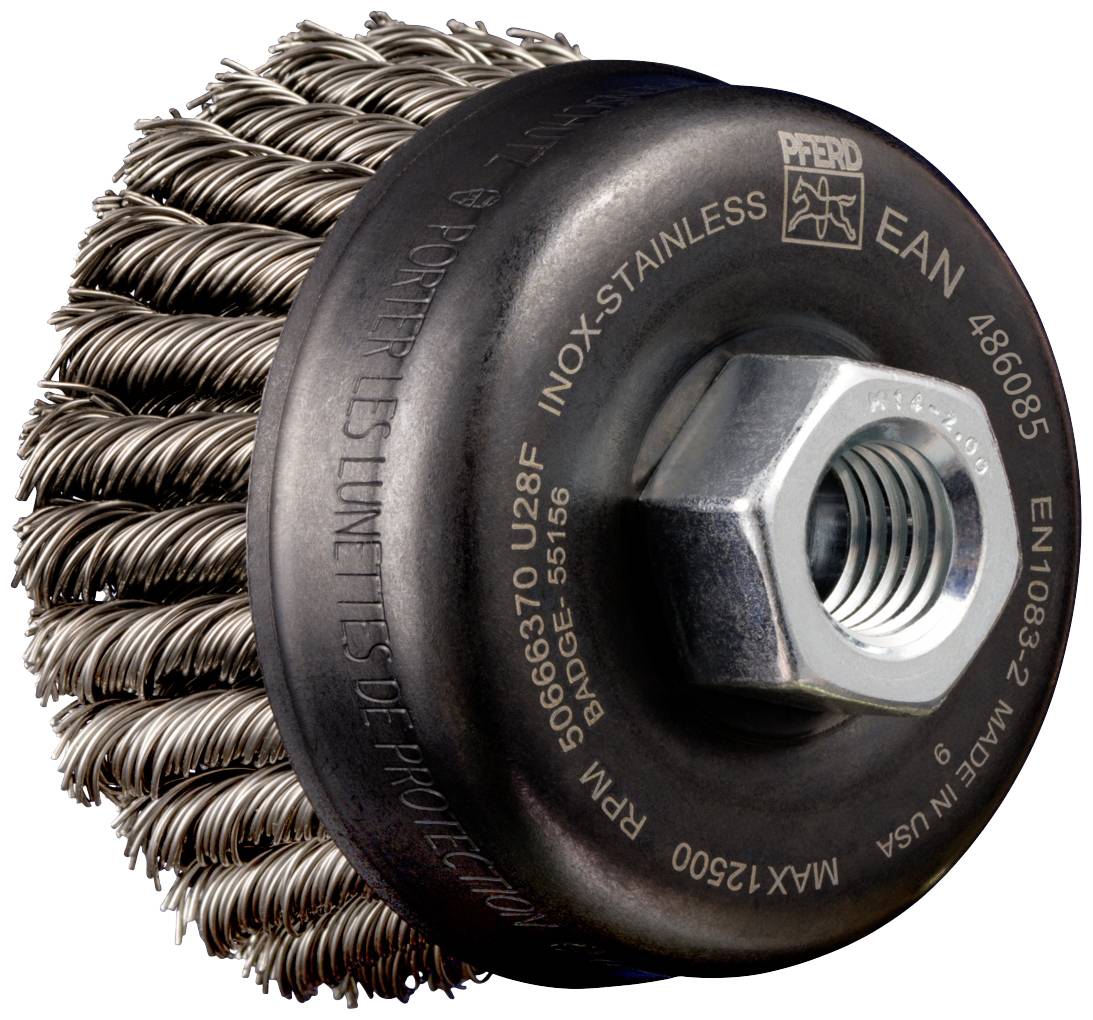

PFERD TOOLS POS 2-row potted TBG HD Ø 65 mm M14 stainless steel wire Ø 0.50 mm angle grinder POS TBG 65/M14 INOX 0,50 2R
EAN:
Part number:
Item no:
Highlights & Details
POS 2-row potted TBG HD Ø 65 mm M14 stainless steel wire Ø 0.50 mm angle grinder
- The brush is degreased and leaves no oil residue on the workpiece
- Extremely high stocking density for optimal service life
- Two-row construction enables fast brush results thanks to a larger crew width
- Very comfortable to work thanks to smooth operation on corners and edges
- Aggressive brush effect thanks to the high rigidity of the wire heads
- Very good corrosion resistance
Technical specifications
- Number of pots: 48 pieces
- RPM, 12500 RPM max.
- RPM, opt., from: 5000 RPM
- RPM, opt., up to 12500 RPM
- Ø Crew material: 0.5 mm
- ø Outer metric: 65 mm
- Length, fitting 22 mm
- Uses
Cleaning
Deburr
Dust Collection
Be amazed
Remove the start-up colors
Remove oxide layers
Expenses
Root seam working
Welding processing
Fillet weld processing
- Product type
Cup
- (Ø)
65 mm
- Thread size
M14
- Material
Stainless steel V2A
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3047744 PFERD TOOLS POS 2-row potted TBG HD Ø 65 mm M14 stainless steel wire Ø 0.50 mm angle grinder POS TBG 65/M14 INOX 0,50 2R
Information
Information 3047744 PFERD TOOLS POS 2-row potted TBG HD Ø 65 mm M14 stainless steel wire Ø 0.50 mm angle grinder POS TBG 65/M14 INOX 0,50 2R
Description
Two-row, very aggressive and stable brush that can withstand high mechanical loads. Excellently suitable for heavy brush work such as deburring, cleaning, removing rust and reducing dusting as well as for removing welding spatter. In order to meet the special requirements for the machining of stainless steel (INOX), PFERD uses wire quality 1.4310 (V2A) on all INOX brushes. Practical experience from the industrial environment confirms that it has a very good corrosion resistance with optimal service life. All HORSE brushes with INOX finish are marked in blue and suitable for use on all stainless steel (INOX) such as V4A. The wire quality 1.4310 tends to ferromagnetic behavior when cold-solidification is used, i.e. it is attracted by magnets. This is due to a structural change caused by deformation, e.g. during wire pulling. This does not affect the quality and corrosion resistance of the INOX trim. It retains its corrosion resistant properties. Stainless steel wire (INOX) can withstand temperatures of up to 450 °C.
Application recommendations
Please observe the recommended speeds.
For optimum results, use high-performance angle grinders.
Materials
Aluminium
Bronze
Cobalt base alloys
Non-ferrous metal, hard
High-temperature resistant materials
Nickel-based alloys (e.g. Inconell and Hasteloy)
Nickel or titanium super alloys
Other non-ferrous metals
Soft titanium alloys (tensile strength 500 N/mm²)
Stainless steel
Titanium
Titanium alloys
Drive types
Angle grinder
