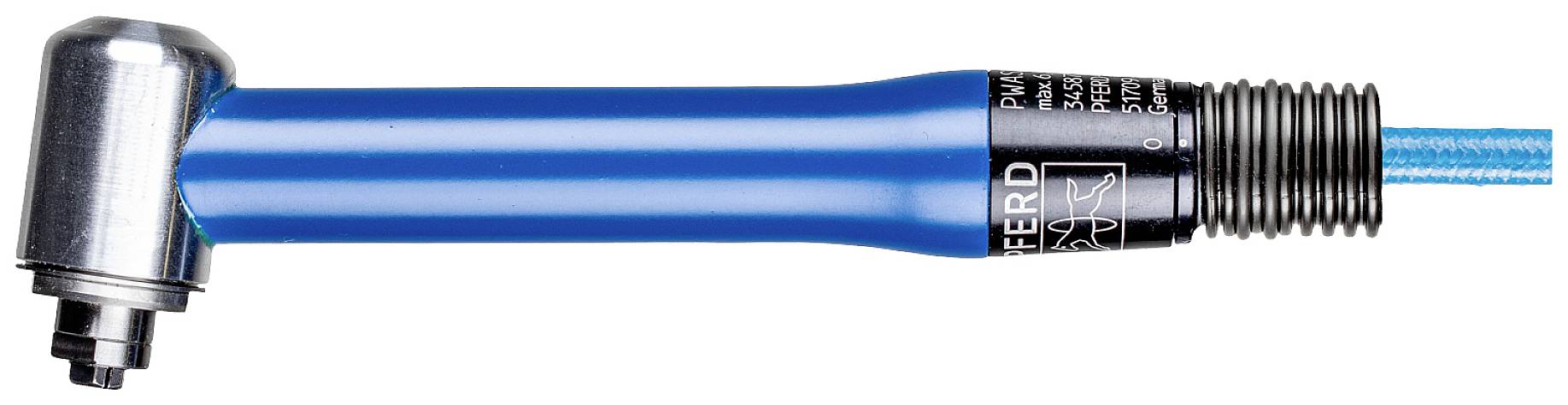

PFERD TOOLS PWAS 1/800 DV 80205010 Pneumatic angle grinder 75 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compressed air pneumatic angle grinder
- No dust on the workpiece sideThanks to the collet chuck holder, it is optimally suitable for the recommended shank toolsThe drive is suitable as a rotary valve version for continuous use
Technical specifications
- Exhaust outlet: RearSpeed: 80000 RPMCollet chuck Ø: 3 mmHeight: 40 mmInner Ø Supply air hose 4.8 mmAir consumption (idle): 0.15 m³/min.Air consumption (at load): 0.14 m³/min.
- Product type
Pneumatic angle grinder
75 W
- Recess diameter
3 mm
- Length
139 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632112 PFERD TOOLS PWAS 1/800 DV 80205010 Pneumatic angle grinder 75 W
User & Safety Instructions
User & Safety Instructions 2632112 PFERD TOOLS PWAS 1/800 DV 80205010 Pneumatic angle grinder 75 W
Description
The drive is equipped with a collet chuck tool holder for shank tools. The air outlet duct of the compressed air drive is located at the rear. The robust compressed air drive without angle gear is light and handy. It is the smallest, high-speed angle grinder. The drive must be used with oil. 0.75 m starting and 1.5 m supply air hose with thread connection 1/4" outside and plug-in socket with thread (STGI), collet chuck 3 mm, 2 clamping keys. The drive has a rotary valve version.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x clamping key
- 1x collet chuck 3 mm
- 0.75 m from and 1.5 m supply air hose
