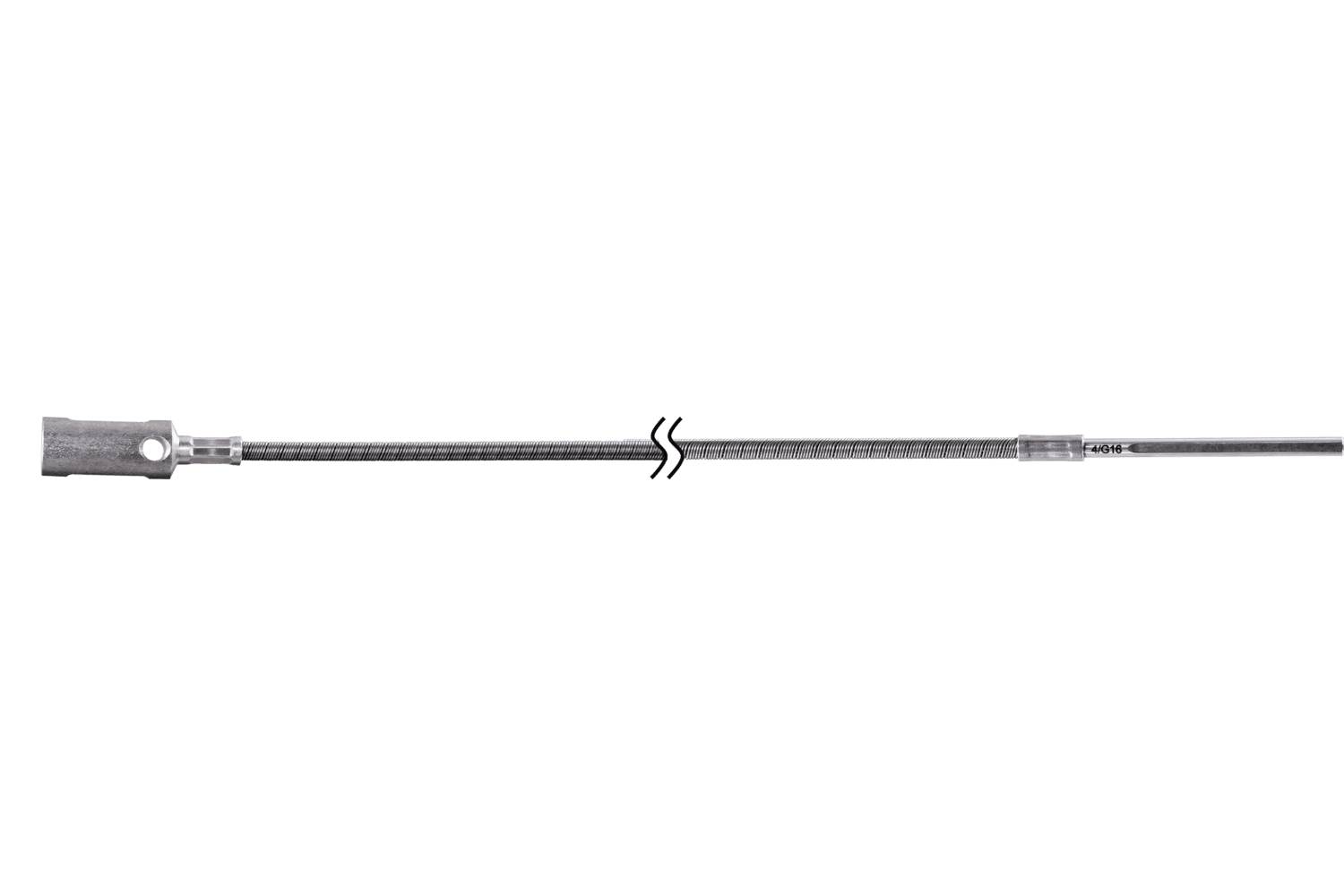

PFERD TOOLS SE 4 DIN10/G16 86200305 Soul 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS soul SE 4 DIN10/G16
- Design: System flexible shaft 4
Technical specifications
- - PFERD TOOLS type: SE 4 DIN10/G16
- - Speed range, from: 18000 RPM
- - Speed range, up to: 40000 RPM
- - Design: System flexible shaft 4
- - Metric width: 4 mm
- - Drive-side coupling, DIN: 10
- - Workpiece-side coupling Ø metric: 3.5 mm
- - Handpiece coupling G: 16
- - Length metric: 1329 mm
- - Net weight: 0.12 kg
- - Ø drive-side coupling [mm]: M10
- - Hand-side coupling Ø [mm]: 3.5/2.45
- - ø Outer metric: 4 mm
- - Height: 4 mm
- Product type
Soul
- Length
1329 mm
- Weight
0.12 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773079 PFERD TOOLS SE 4 DIN10/G16 86200305 Soul 1 pc(s)
Description
Flexible shafts consist of three components that can be combined in different ways: The flexible core (SE), the protective hose (SCH), the handle (HA). The flexible core consists of four to ten layers of wire according to DIN 2076, specially for high-speed clockwise rotation. The soul coupling is firmly pressed on. After approx. 100 hours of operation, the flexible shaft core must be re-lubricated. The protective hose is made from oil-resistant rubber, inside from a flat steel spiral and outside from solid rubber. The connecting couplings are tightly pressed and covered with rubber sleeves for reinforcement. The handpieces are light and handy and cover a large speed range.;In continuous operation with low running noise a fatigue-free working is possible. Exchangeable collets enable the use of various tools. The sliding connection enables a quick change of the hand piece. Replacement core for BW 4 DIN 10/16.
Application recommendations:
- Speed and power range should not be exceeded.
- It is not possible to repair the soul and the protective hose. We recommend as replacement fully assembled new parts.
- When using flexible shafts, it is essential to ensure that the shafts are not bent beyond the specified radius of curvature. The smallest possible radius of curvature is given for each flexible shaft.
This text is machine translated.
Application recommendations:
- Speed and power range should not be exceeded.
- It is not possible to repair the soul and the protective hose. We recommend as replacement fully assembled new parts.
- When using flexible shafts, it is essential to ensure that the shafts are not bent beyond the specified radius of curvature. The smallest possible radius of curvature is given for each flexible shaft.
This text is machine translated.
Hints
Special lengths on request.
Souls and hoses with double-sided sliding connection upon request.
