Phaesun CST-M10/54BH415 Monocrystalline solar panel 415 W 31.46 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar Module 415 W full range (36 modules )
- Maximum power: 415 W
- Connection:Standard 4
- 108 helped cells; mono
- Aluminium frame (black)
Technical specifications
- Product type
Monocrystalline solar panel
415 W
- Nominal voltage
31.46 V
- Dim
(L x W x H) 1134 x 1723 x 30 mm
- Efficiency
21.5 %
- Connector
MC-PV-4
- Weight
20.8 kg
- Cable length
0.28 m
- Short-circuit current
13.8 A
- Open circuit voltage (OCV)
37.23 V
- Nominal current
13.19 A
- Width
1723 mm
- Height
30 mm
- Length
1134 mm
- Voltage (max.)
37.23 V AC
- No. of cells
108
Documents & Downloads
Datasheet
Datasheet 3024397 Phaesun CST-M10/54BH415 Monocrystalline solar panel 415 W 31.46 V
User & Safety Instructions
User & Safety Instructions 3024397 Phaesun CST-M10/54BH415 Monocrystalline solar panel 415 W 31.46 V
Description
Up to 415 W and 21.3% module efficiency with half-cut and MBB (Multi Busbar) technology for more BOS savings.
The low resistance of the half-cut and the good reflection effect of the MBB guarantee a high performance.
This text is machine translated.
The low resistance of the half-cut and the good reflection effect of the MBB guarantee a high performance.
This text is machine translated.
Features
- Hardened glass
- Black back
- Connection cable 280 mm/4 mm²
Scope of delivery
- Solar Modules
- User manual.
Hints

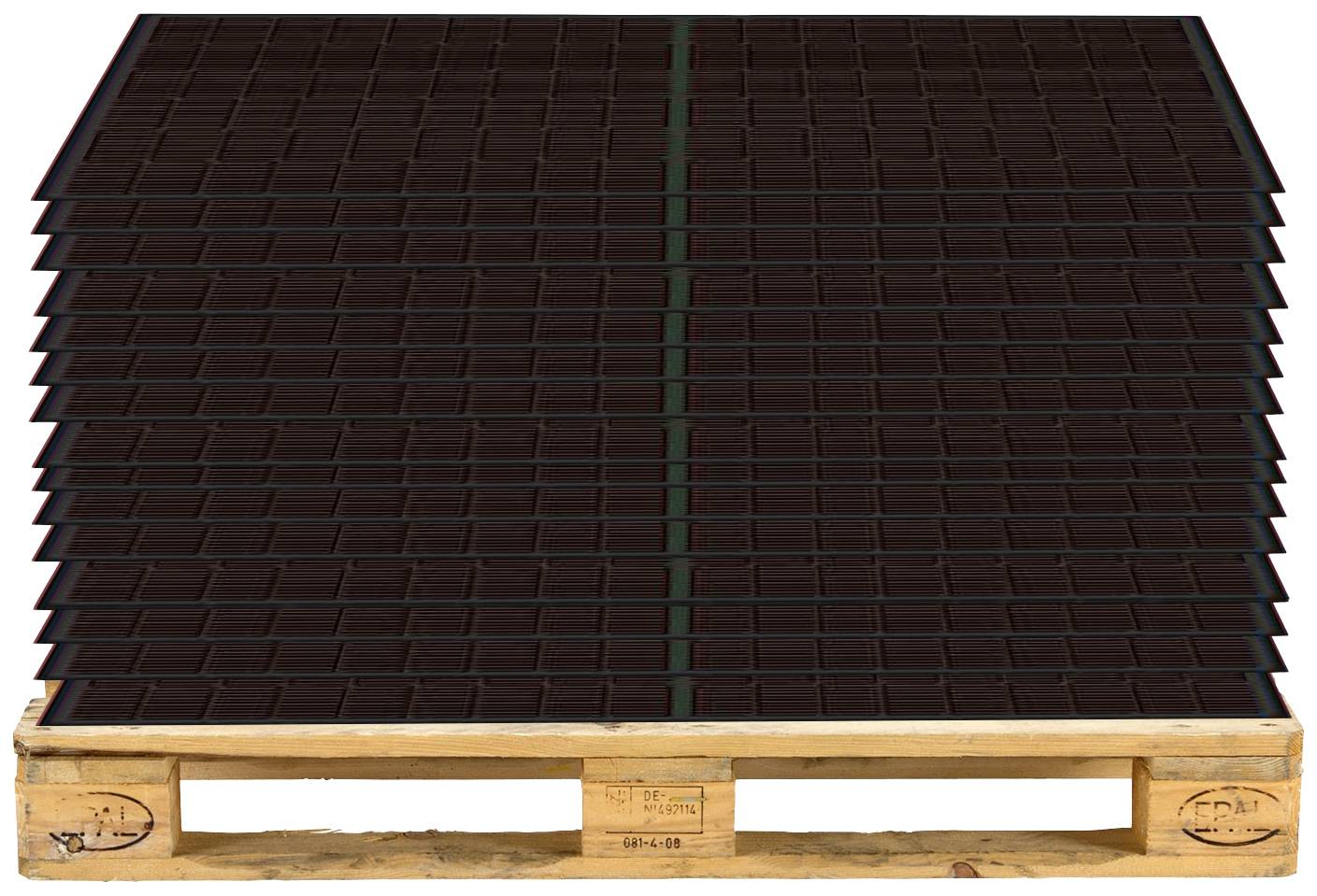

Delivery takes place only in 36 pallets. Not available individually!
