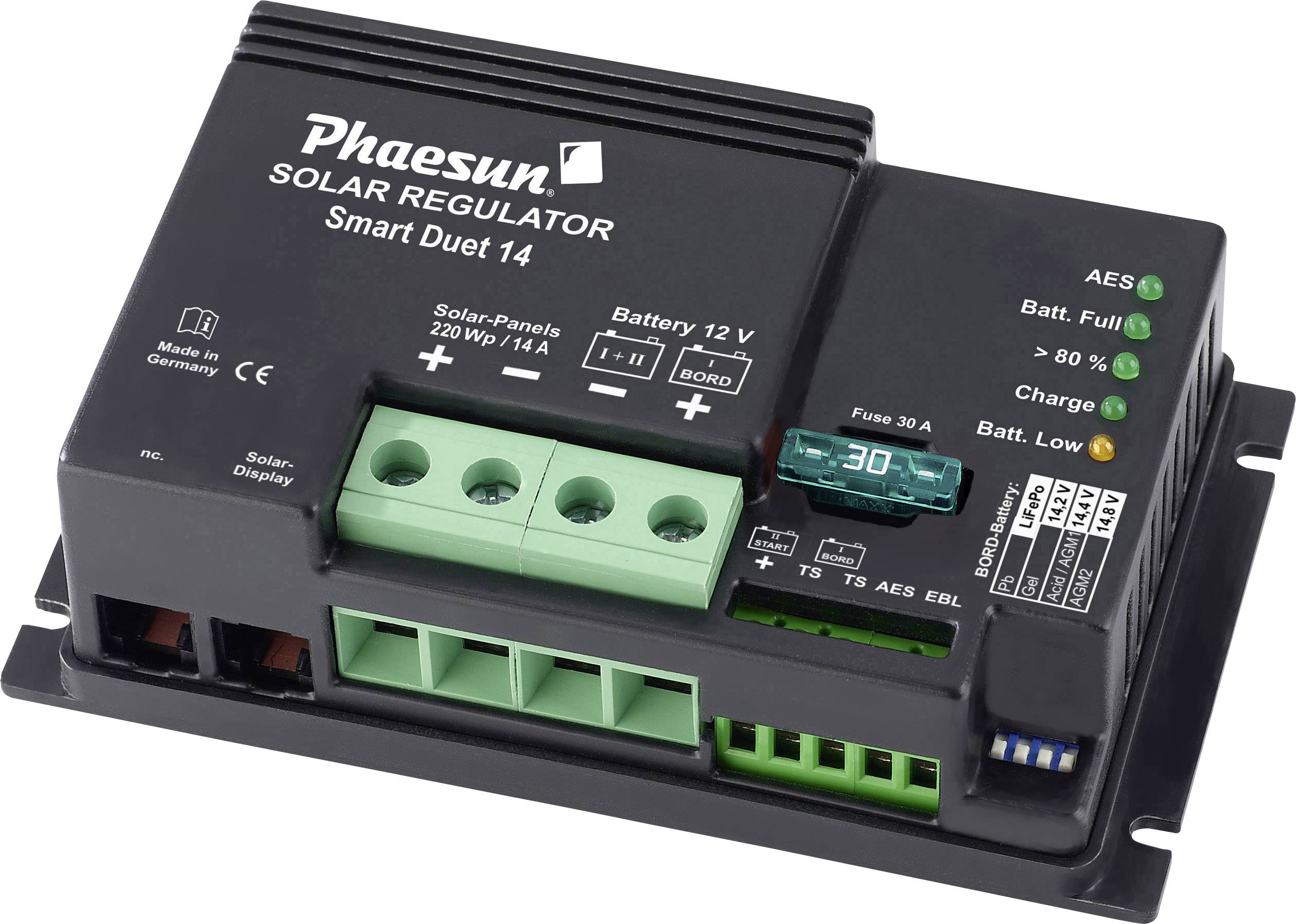

Phaesun Smart Duet 14 Charge controller Serial 12 V 14 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Duo-Solarladeregler Smart Duet 14
- Charges 2 batteries simultaneously.
- USB-charging port.
- Control of an AES refrigerator
Technical specifications
- USB charging current 2000 mA
- Product type
Charge controller
- Nominal voltage
12 V
- Module power (max.)
220 Wp
- Temperature range
-20 °C to +45 °C
- Charging current (max.)
14 A
- Own power consumption
<22 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
LiFePO
- Control type
Serial
- Dim
(W x H x D) 131 x 77 x 40 mm
- Weight
155 g
- Current load
14 A
- Module load (max.)
14 A
- Width
131 mm
- Height
77 mm
- Depth
40 mm
Documents & Downloads
Datasheet
Datasheet 1667335 Phaesun Smart Duet 14 Charge controller Serial 12 V 14 A
User & Safety Instructions
User & Safety Instructions 1667335 Phaesun Smart Duet 14 Charge controller Serial 12 V 14 A
Description
On the move in the caravan, boat or far away from any civilisation.
The amenities of the elktrifizierung to have a solar power system. With a solar system, it is possible self-sufficient and independent of the power connections to move. The solar charge controller provides the link between the solar module and the on-board battery and ensures that it is automatically loaded properly.
The Duo charge controller Smart Duet of phaesun is specially designed for the charge two batteries have been developed. Thus, it is suitable for applications in mobile homes to living room and the starter battery independently with the solar panel to charge.
Through the USB-output USB-enabled devices with environment-friendly and free solar energy can be charged.
This text is machine translated.
The amenities of the elktrifizierung to have a solar power system. With a solar system, it is possible self-sufficient and independent of the power connections to move. The solar charge controller provides the link between the solar module and the on-board battery and ensures that it is automatically loaded properly.
The Duo charge controller Smart Duet of phaesun is specially designed for the charge two batteries have been developed. Thus, it is suitable for applications in mobile homes to living room and the starter battery independently with the solar panel to charge.
Through the USB-output USB-enabled devices with environment-friendly and free solar energy can be charged.
This text is machine translated.
Features
- Charges 2 batteries simultaneously.
- USB-charging port.
- 8 preset charging programs
- Simple and compact
- High reliability through micro-controller
- Charging programs.
- Temperature compensation
- Trickle charging
- Equalising charge
- Control of an AES refrigerator
- Continuous adjustment.
- 3-way charge timer
- LED display
- Graphical LCD remote display can be connected (Conrad no. 1410344) Smart Duet
Scope of delivery
- Duo-Solarladeregler Smart Duet
- User manual.
