Phanteks EX5 MAX Midi tower PC casing Black
EAN:
Part number:
Item no:
Highlights & Details
Phanteks EX5 MAX Midi tower PC casing
- Midi tower with separate hardware chambers
- Pre-installed 360 mm AiO with 6" LCD
- Graphics cards up to 358 mm
- ATX power supplies up to 210 mm
- Motherboards from Mini-ITX to ATX
Technical specifications
- max. CPU-cooler height 78 mm
- max. Graphics card length 358 mm
- max. Power supply length / depth 210 mm
- Fan slots (side): 120mm fan (4x)
- max. Radiator compatibility 1x Triple (360 mm)
- Display included: Yes
- Display size in inches: 6"
- Display resolution 1480 x 720 pixels
- Refresh rate 60 Hz
- Panel type IPS
- Brightness SDR: 250 cd/m²
- Product type
PC casing
- Case type
Midi tower
- Factory colour
Black
- Interfaces (front)
Audio line in
Audio line out
USB type A
USB C®
- 6.4 cm (2.5") internal slots
1
- 8.9 cm (3.5") internal slots
1
- Width
234 mm
- Height
474 mm
- Depth
449 m
- Weight
9560 g
- Form factor
ATX
- No. of USB type A 3.0 ports
2 x
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 234 x 474 x 449 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3808119 Phanteks EX5 MAX Midi tower PC casing Black
Description

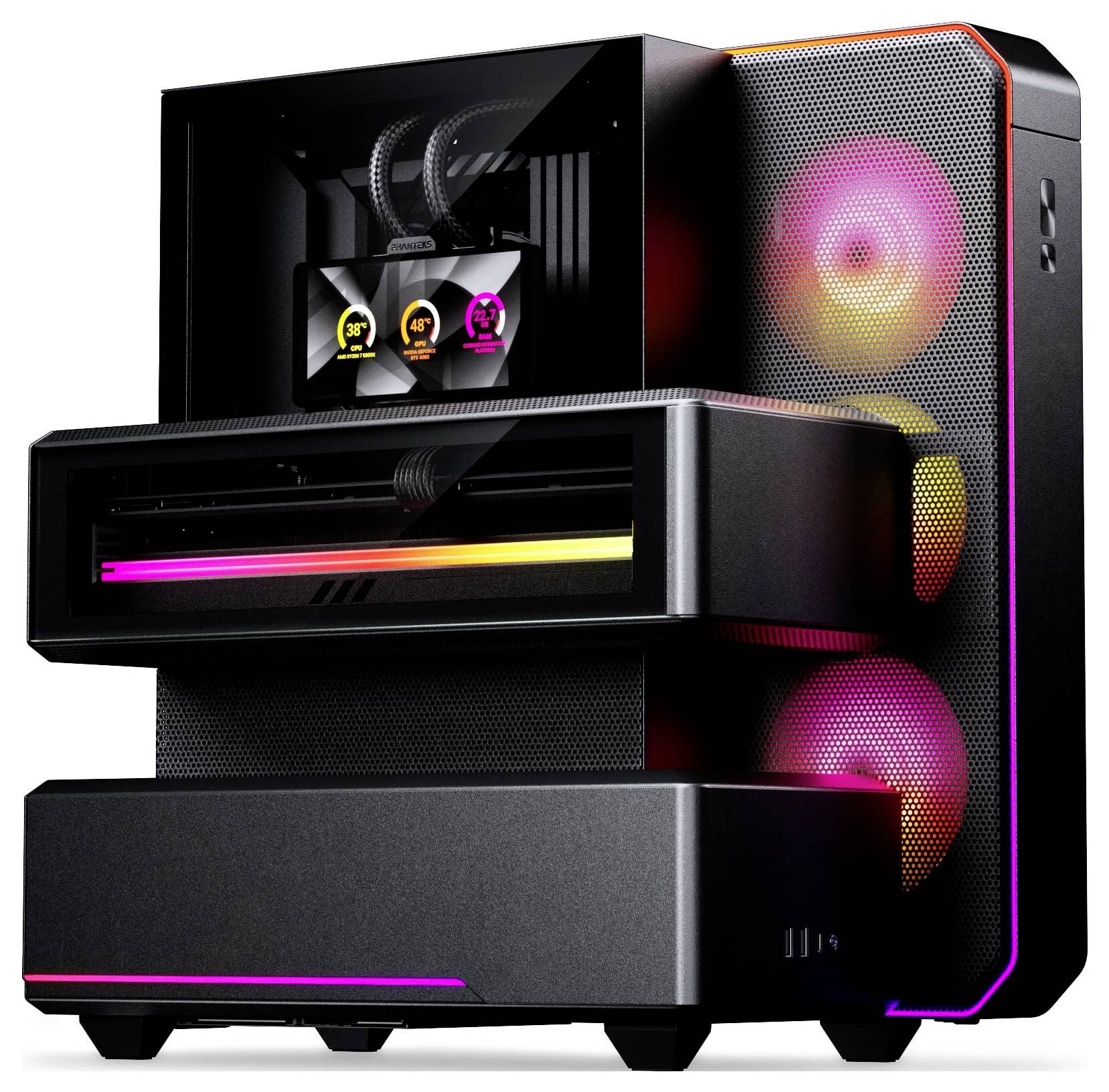

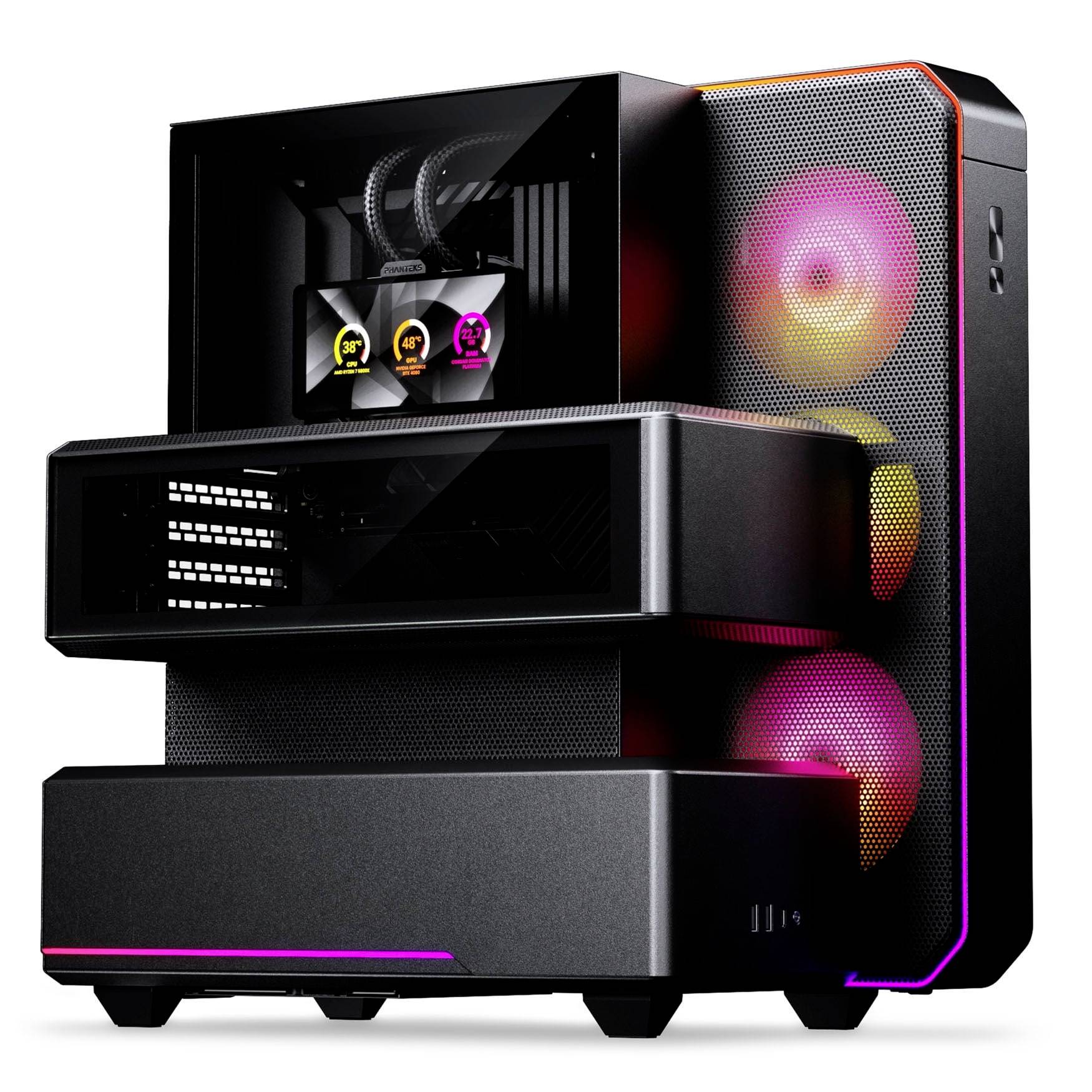

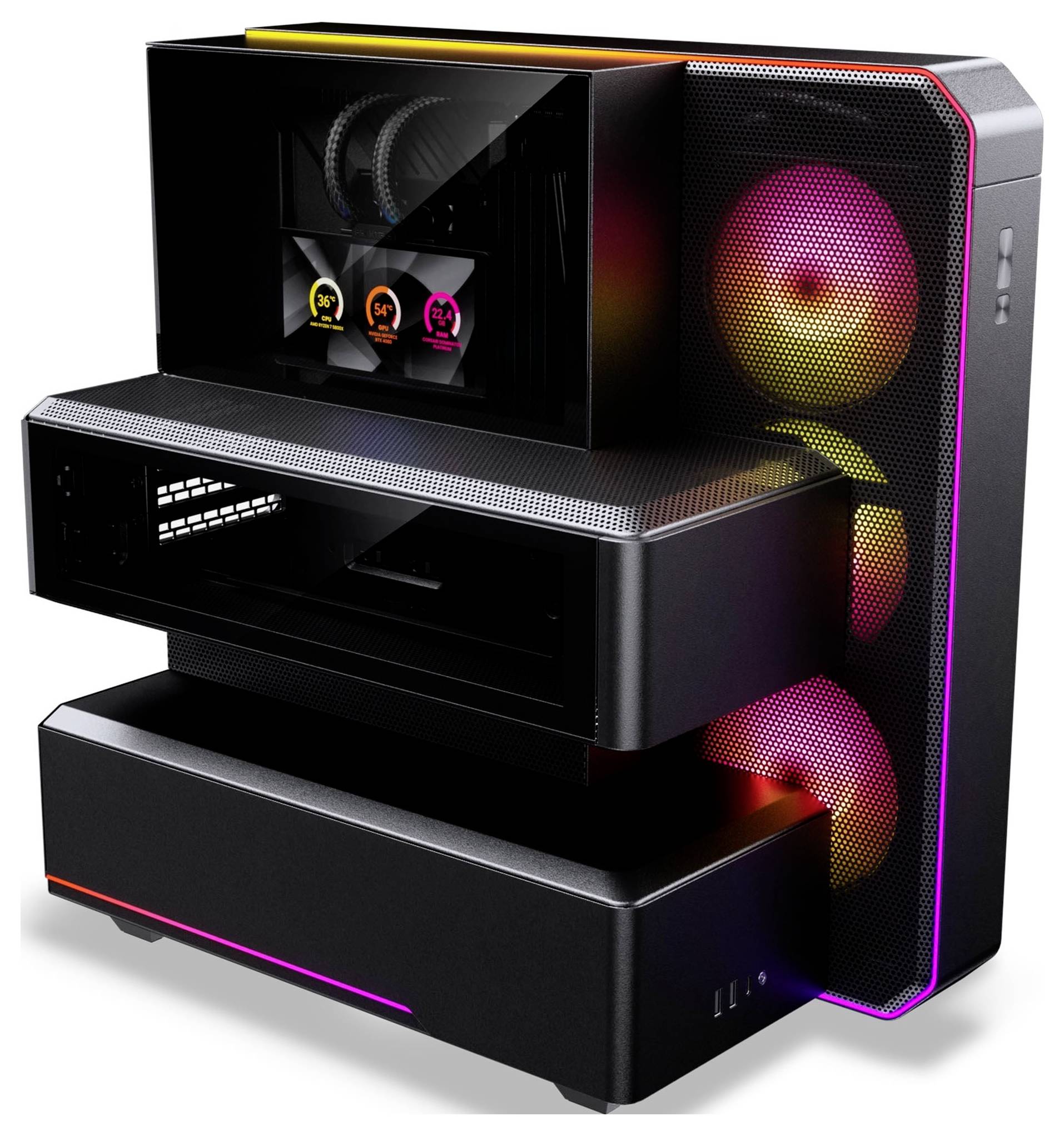

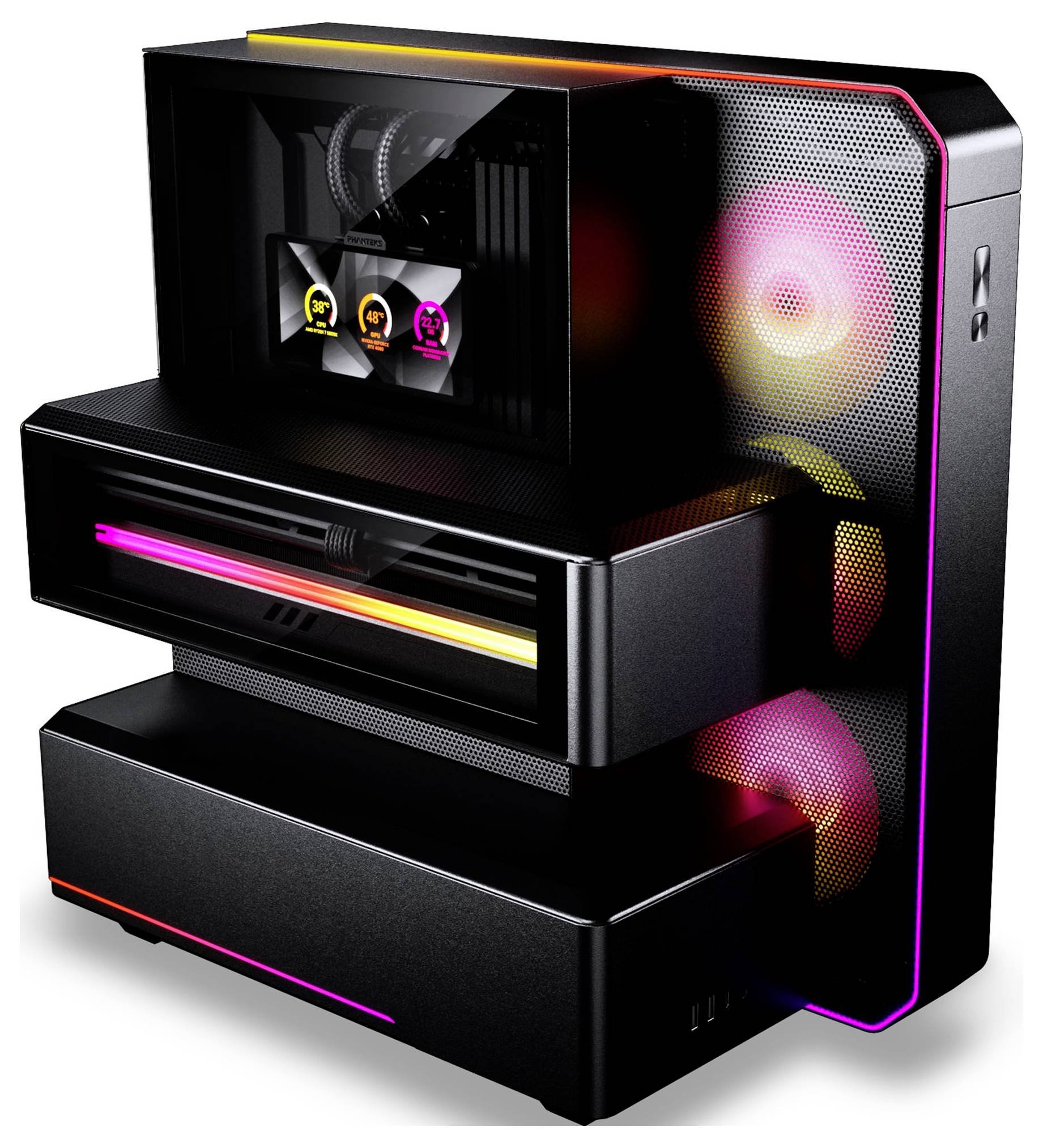

The Phanteks EX5 MAX comes with a pre-installed 360 mm AiO with a 6" LCD. The motherboard, graphics card and power supply are located in separate areas. Fresh air can then be fed directly to the individual components. AiO displays system information or personal content.
· 360-mm-AiO included: Water cooling with three 120-mm-S25-fans is already installed
· 6-inch LCD—displays system information or personal content
· Separate hardware chambers: Motherboard, graphics card and power supply are separated from each other
· Space for large GPUs: Graphics cards with up to 3.5 slots and 358 mm in length
· Mainboard-support: Suitable for Mini-ITX, Micro-ATX and ATX
The Phanteks EX5 MAX: 360 mm AiO with 6" display

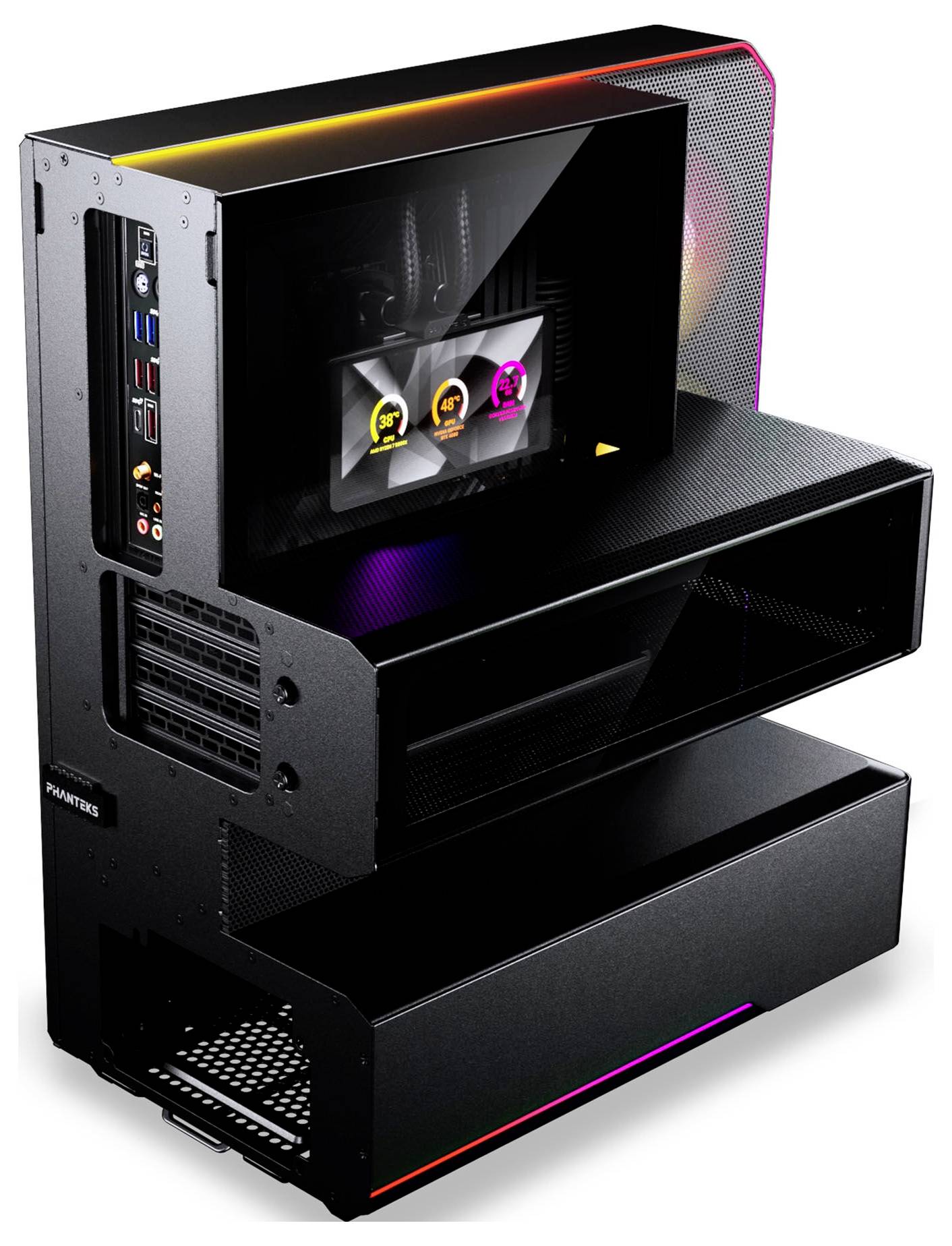

The Phanteks EX5 MAX divides your hardware into several areas. Motherboard and CPU hardware are located in the main chamber. Your graphics card will have its own GPU chamber. Power supply and drives are below. This clear separation of the components supports the direct air flow and at the same time provides for an unusual appearance.
CPU cooling including display
The pre-installed 360-mm AiO is located at the side next to the main board. Three combined 120-mm S25 fans carry fresh air through the radiator and cool with it your CPU. There is a 6" LCD on the pump cover. There you can display system information or personal content.
The graphics card and power supply also have their own areas with air-permeable mesh surfaces. Your integrated cooling solutions access thereby directly to fresh air. This reduces the dependence on additional case fans.
Holds large graphics cards securely
Three PCIe slots are available for your GPU and a length of up to 358 mm. Thus, the chamber also holds large graphic cards. Two brackets fix the GPU and counteract a drop. Aluminium and Tempered Glass form the outer shell of the chamber.
Clean optics with ARGB lighting
· AiO hoses can be routed behind panels
· Cable management behind the mainboard
· Power supply chamber provides space for excess cable
· Two ARGB strips already integrated
The EX5 MAX hides cables and AiO hoses, where they do not disturb the view of your hardware. The AiO cables run over the upper area to the radiator. Extra cables are placed behind the motherboard or in the power supply chamber. Two integrated ARGB-strips provide colored accents.
Space for power supply and drives
In the lower chamber you install an ATX power supply unit up to 210 mm long. It also accommodates a 2.5" SSD and a 3.5" hard disk. This keeps the power supply, drives, and excess cables disconnected from the visible main area.
This text is machine translated.
