Phihong PSAC12R-240 Mains PSU (fixed voltage) 24 V DC 0.5 A 12 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Only 9 Piece(s) available

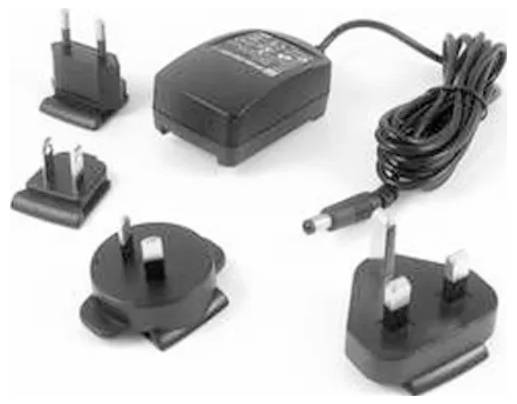

12 watt plug power supply EU/International
Highlights & Details
- 10-12 watt plug power supply with universal input 90-264 VAC.
- Thanks to the one to four easily exchangeable AC clips this power supply is ready for use all over the world!
- Overvoltage and short circuit protection
- DC-output: Hollow plug 2.1 x 5.5 x 10
- CE / UL / cUL
- New version DOE VI
Technical specifications
- Overload protection
- Circuit breaker
- Product type
Mains PSU (fixed voltage)
- Used at
Indoors
Portable
- Type
Plug power supply EU/International
- Max. output current
0.5 A
- Output voltage
24 V DC
- Output current (max.) - rounded
500 mA
- Output
5.5/2.1 coaxial connector
12 W
- Dim
(L x W x H) 71 x 50 x 31 mm
- Connection
Plug
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Width
50 mm
- Height
31 mm
- Length
71 mm
- Type
PSAC12R-240
Documents & Downloads
Datasheet
Datasheet 3443359 Phihong PSAC12R-240 Mains PSU (fixed voltage) 24 V DC 0.5 A 12 W
User & Safety Instructions
User & Safety Instructions 3443359 Phihong PSAC12R-240 Mains PSU (fixed voltage) 24 V DC 0.5 A 12 W
Description
Plug-in power supply with interchangeable connector for wireless communication devices, peripheral devices, network technology and telecommunications.
This text is machine translated.
This text is machine translated.
Hints
Contains only adapter on Euro plug - please order additional input plugs separately (PSA CLIP-KIT)
