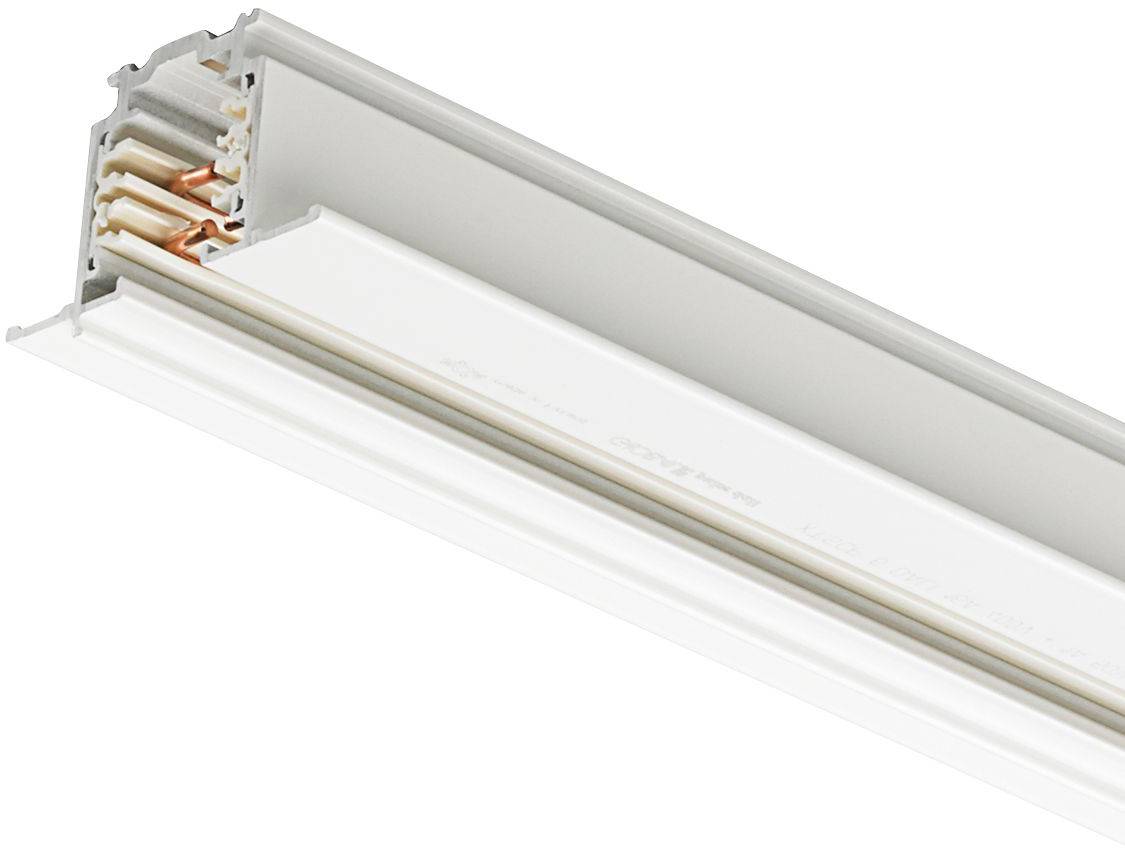

Philips 06551800 RBS750 #06551800 High voltage mounting rail
EAN:
Part number:
Item no:
Technical specifications
- Height: 33 mm
- Width 56 mm
- Material: Aluminium
- Colour, black
- Mounting width 32 mm
- Protection class: I
- Length: 1000 mm
- Design of surface: Matt
- Nominal voltage 200..250 V
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for suspended engine mounting: No.
- Installation height/depth 31 mm
- Shape: Rectangular
- Bendable: No.
- Number of groups/phases: 3
- Bus-enabled: Yes
- Max. Electrical load capacity per phase 3700 W.
- Product type
High voltage mounting rail
n.rel.
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544419 Philips 06551800 RBS750 #06551800 High voltage mounting rail
Description
For the use of DALI spotlights with a special adapter, DALI Ideal busbars are suitable for users who want flexible lighting in order to create a special atmosphere in their showroom and reduce energy consumption. The system consists of extruded aluminum busbars, which are available in different lengths and colors, and a wide range of accessories with different feeding options. With this, any desired configuration can be implemented horizontally or vertically, in or at the ceiling mounted, mounted on the wall or suspended. All lamps have a separate power supply and can be switched selectively. You can easily change your positioning to flexibly adjust the lighting and presentation. In this way a multi-functional track system for accent lighting can also be used as advertising material or decoration material.
