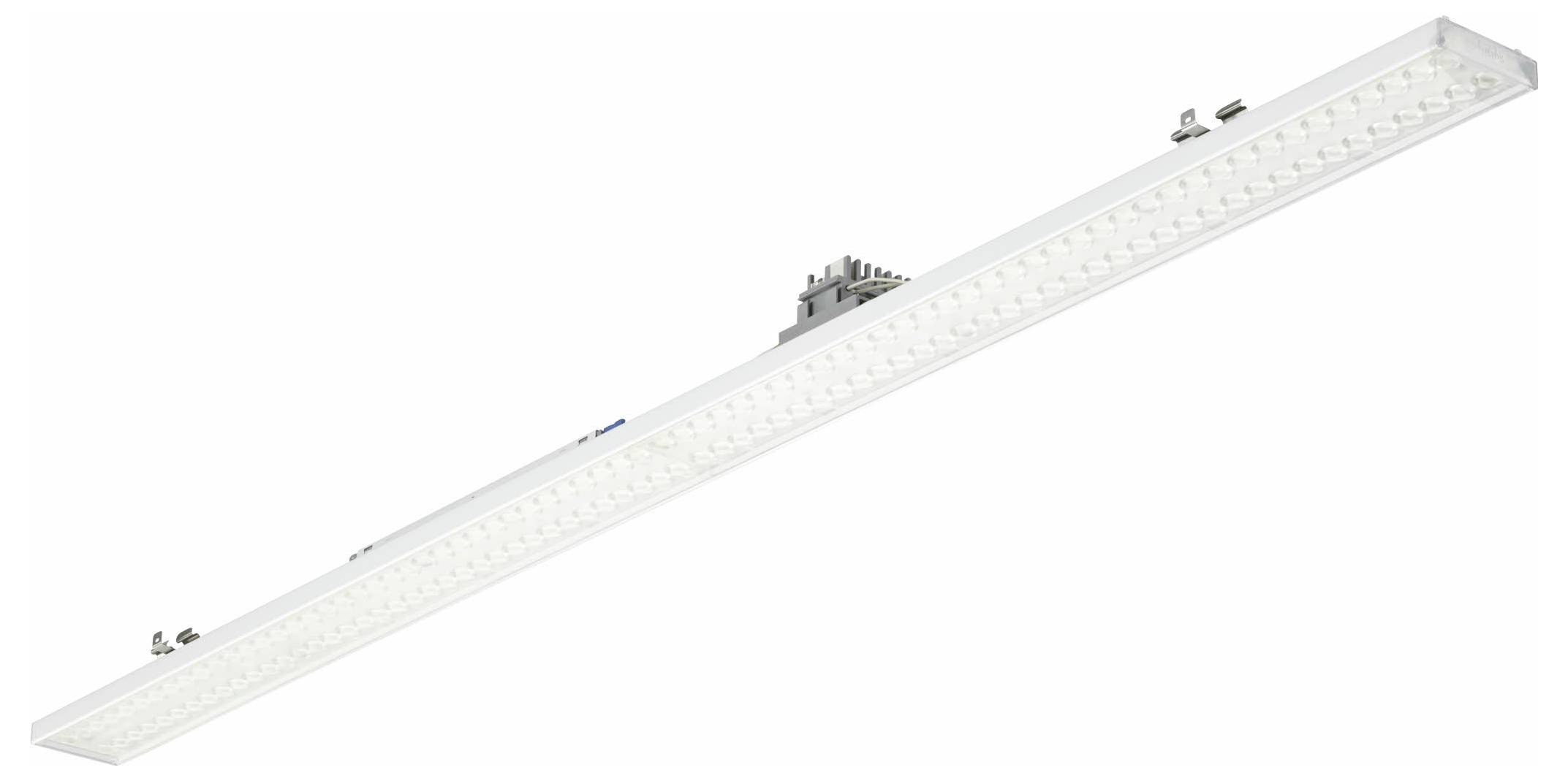

Philips 18110600 LL512X LED #18110600 LED tape light system 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Width 62 mm
- Number of pins: 5
- Protection class (IP) IP20
- Protection class: I
- Material of housing: Steel
- Length: 1138 mm
- Nominal voltage 220..240 V
- Rated current: 79 mA
- Connection type: Other
- Voltage type AC
- Bulb: LED not replaceable
- Radiation angle: Wide radiation 41-80°
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 14 mm
- Type of wiring: Finish
- With bulb: Yes
- Housing color: White
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 18 W
- Max. System power 18 W
- Rated light current according to IEC 62722-2-1: 3150 lm
- Light distributors: Refractor lens
- Color consistency (McAdam ellipse): SDCM3
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- Light output 175 lm/W
- Power factor 0.97
- Conductor cross-section: 0.5 mm²
- Version: Other
- Light current decline at medium. Service life 50,000 h at 25 °C surrounding temperature: 90 %
- Failure rate at medium. Service life 50,000 h at 25 ° C surrounding temperature (tq): 0.05%
- Glow wire test according to IEC 60695-2-11: Without
- Rated life L70/B50 at 25 °C: 90000 h
- Light current decline at medium. Service life 100,000 h at 25 °C surrounding temperature: 80 %
- Failure rate at medium. Service life 100,000 h at 25 ° C surrounding temperature (tq): 0.1%
- Product type
LED tape light system
IP20
n.rel.
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3540792 Philips 18110600 LL512X LED #18110600 LED tape light system 1 pc(s)
Description
MaxOS fusion is an adjustable LED light band system that provides excellent light quality while more than halving energy costs compared to fluorescent lamps. For retail applications, the StoreSet surface light, light carriers and various spotlights can be integrated into the rail mounting system. This flexibility allows the lighting to be adapted to any situation. For industrial applications, the focus is on reducing installation and maintenance costs by using fewer light beams. The integrated power rail with up to 13 conductors provides the possibility to position the lights as needed and to integrate other services/hardware from third parties. This allows subsequent layout changes to be considered at any time.
