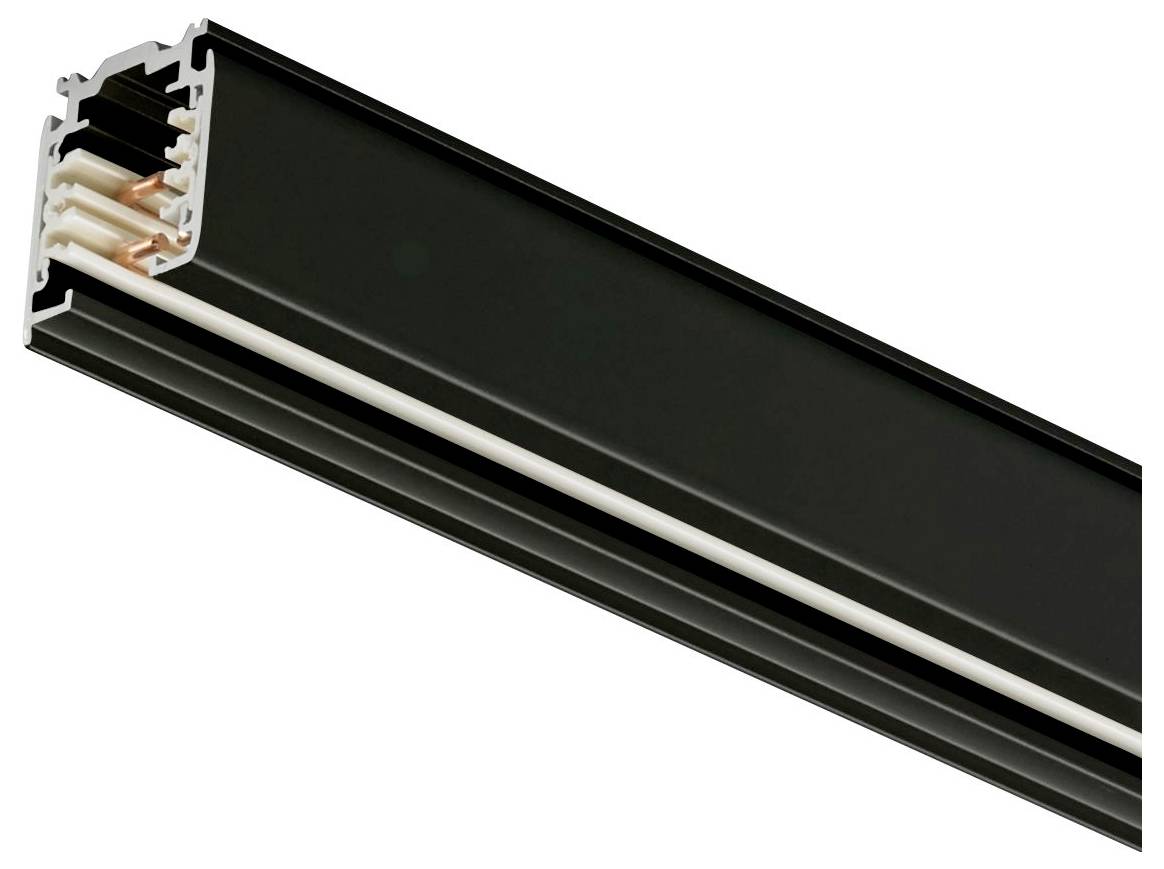

Philips 79852300 RCS750 3C L2000 BK High voltage mounting rail
EAN:
Part number:
Item no:
Technical specifications
- Height: 33 mm
- Width 32 mm
- Material: Aluminium
- Colour, black
- Protection class: I
- Length: 2000 mm
- Design of surface: Matt
- Nominal voltage 200..250 V
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for suspended engine mounting: No.
- Installation height/depth 31 mm
- Shape: Rectangular
- Bendable: No.
- Number of groups/phases: 3
- Bus-enabled: Yes
- Max. Electrical load capacity per phase 3700 W.
- Product type
High voltage mounting rail
n.rel.
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543889 Philips 79852300 RCS750 3C L2000 BK High voltage mounting rail
Description
The 3-phase busbar system consists of an aluminum profile with a length of 1, 2, 3 or 4 m and four electrical conductors. Thus each desired configuration can be realized very easily: Horizontal or vertical, mounted on or in the ceiling or attached to the wall. The system can also be used as a suspended version. All lamps have a separate power supply and can be switched separately. They allow with that a simple change of lighting and presentation. This creates a functional busbar system that is suitable for accent lighting as well as for lighting hanging billboards and decorative materials. In addition, various adapters, power supply connectors and accessories are available for installation.
