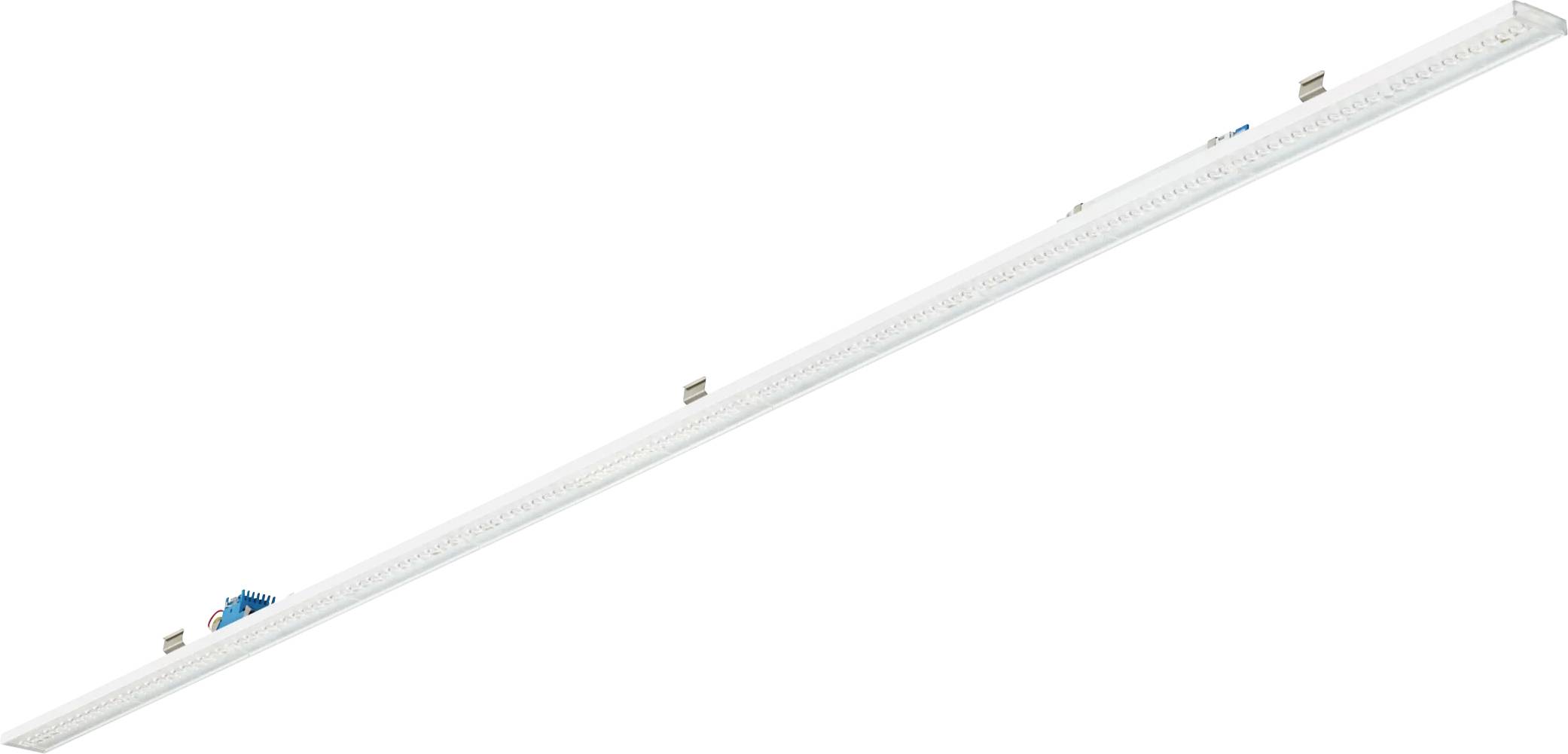

Philips 910925871033 LL552X 200S/840 UE DIA WB WH LED tape light 108 W LED (monochrome) White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Switch-on time 0.0215 ms
- Power surge 17.5 A
- Radiation angle 57° x 76°
- Product type
LED tape light
- Operating voltage
220 V
240 V
- Bulb type
LED (monochrome)
108 W
4000 K
- Colour
Neutral white
- Total luminous flux
20000 lm
- Light features
Dimmable
Incl. ballast
Indirect light emission
IP20
IK03
- Protection class
I
- Factory colour
White
- Material
Steel
PMMA
- Dim
(L x W x H) 2215 x 62 x 14 mm
n.rel.
- Colour rendering index
>80
- Colour temperature range
4000 K
- Width
62 mm
- Height
14 mm
- Length
2215 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3805345 Philips 910925871033 LL552X 200S/840 UE DIA WB WH LED tape light 108 W LED (monochrome) White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3805345 Philips 910925871033 LL552X 200S/840 UE DIA WB WH LED tape light 108 W LED (monochrome) White 1 pc(s)
Description
Trunking light unit, UltraEfficient, 2215 mm, steel, white, Signal white (RAL9003), DALI dimming Interact System Ready, 20000 lm, 108 W, 185 lm/W, 4000 K, (0.34. 0.35) SDCM <3, wide beam (WB), textured, polymethyl methacrylate, IP20 | Keep fingers away, IK03 | 0.3 J, Protection Class I, 7-pin connector block
