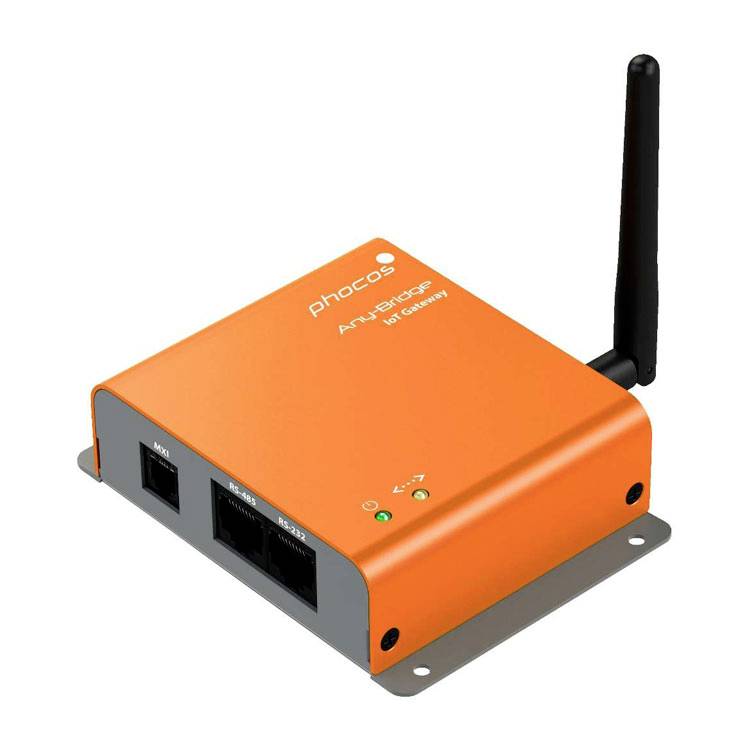

Phocos AB-PLC-CAN Fernüberwachung Phocos Any-Bridge+CAN Wi-Fi access point 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Remote control Phocos any-bridge+can
- Complimentary launch access to PhocosLink Cloud Service
- Compatible with all Any-Grid™ PSW-H inverters/chargers
- Connects up to 3 units of any grid PSW-H
- RS-232, RS-485, CAN bus, Ethernet, Wi-Fi and BLE interfaces
Technical specifications
- Product type
Wi-Fi access point
- Type
Fernüberwachung Phocos Any-Bridge+CAN
- Wi-Fi standard
IEEE802.11b
IEEE802.11g
IEEE802.11n
- Wi-Fi frequency band
2.4 GHz
- Interfaces
RS232
RS485
RJ45
- No. of LAN ports
3 x
- No. of serial ports
1 x
- Width
77 mm
- Height
105 mm
- Depth
28.2 mm
Documents & Downloads
Datasheet
Datasheet 3024590 Phocos AB-PLC-CAN Fernüberwachung Phocos Any-Bridge+CAN Wi-Fi access point 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3024590 Phocos AB-PLC-CAN Fernüberwachung Phocos Any-Bridge+CAN Wi-Fi access point 2.4 GHz
Description
The Any-Bridge™ AB-PLC-CAN Monitoring & Control Gateway enables access to your Phocos Power system via the PhocosLink cloud portal. Remote monitoring via the PhocosLink Cloud allows for quick and easy system diagnostics, improving system reliability and minimizing the need for costly on-site visits.
This text is machine translated.
This text is machine translated.
Features
- RS-232, RS-485, CAN bus, Ethernet, Wi-Fi and BLE interfaces
- No external power supply required
- External antenna for extended radio range
Scope of delivery
- Remote Monito
- User manual.
Hints
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
