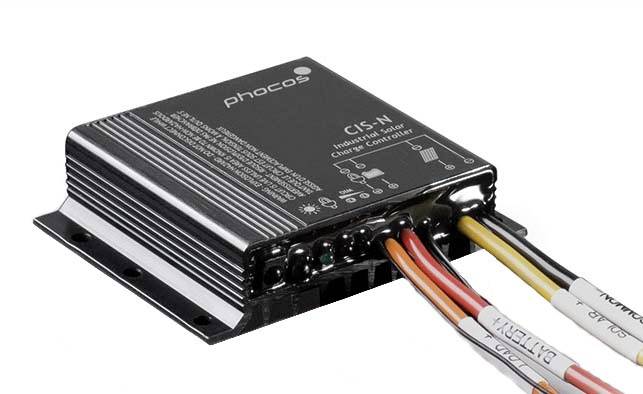

Phocos CIS-N-20 Charge controller PWM 12 V, 24 V 20 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge controller Phocos CIS-N-20
- Developed for demanding, harsh operating conditions, especially for the oil and gas industry
- Fully enclosed housing (protection class IP68) for longer service life and cost savings
- Intelligent timer and dimming function for optimum light control
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Charging current (max.)
20 A
- Matching rechargeable battery
SLA
Lead-acid
- Control type
PWM
- Dim
(L x W x H) 64 x 82 x 20 mm
- Weight
150 g
- Width
82 mm
- Height
20 mm
- Length
64 mm
Documents & Downloads
Datasheet
Datasheet 3024596 Phocos CIS-N-20 Charge controller PWM 12 V, 24 V 20 A
User & Safety Instructions
User & Safety Instructions 3024596 Phocos CIS-N-20 Charge controller PWM 12 V, 24 V 20 A
Description
The CIS-N Charge regulator is a new member of the CIS series.
It was developed to ensure that the excellent performance characteristics and the numerous functions of the popular positively earthed CIS charge regulator can now be used in negatively earthed applications. Thanks to its robust design, this charge controller is therefore particularly suitable for demanding applications, such as in the oil and gas industry or in traffic technology (for traffic control systems, signal lights, etc.) and for all applications, in which solar systems are used under extreme weather and ambient conditions
This text is machine translated.
It was developed to ensure that the excellent performance characteristics and the numerous functions of the popular positively earthed CIS charge regulator can now be used in negatively earthed applications. Thanks to its robust design, this charge controller is therefore particularly suitable for demanding applications, such as in the oil and gas industry or in traffic technology (for traffic control systems, signal lights, etc.) and for all applications, in which solar systems are used under extreme weather and ambient conditions
This text is machine translated.
Features
- Self-protection function: Two voltage shut-down processes for longer system operating time and higher reliability
- Control via the infrared remote control (CIS-CU)
- Fits in smallest applications due to its compact size
- Negative earthing connection
- Configure the CIS-N with MXI-IR and CISCOM software
Scope of delivery
- Solar charge regulator
- User manual.
