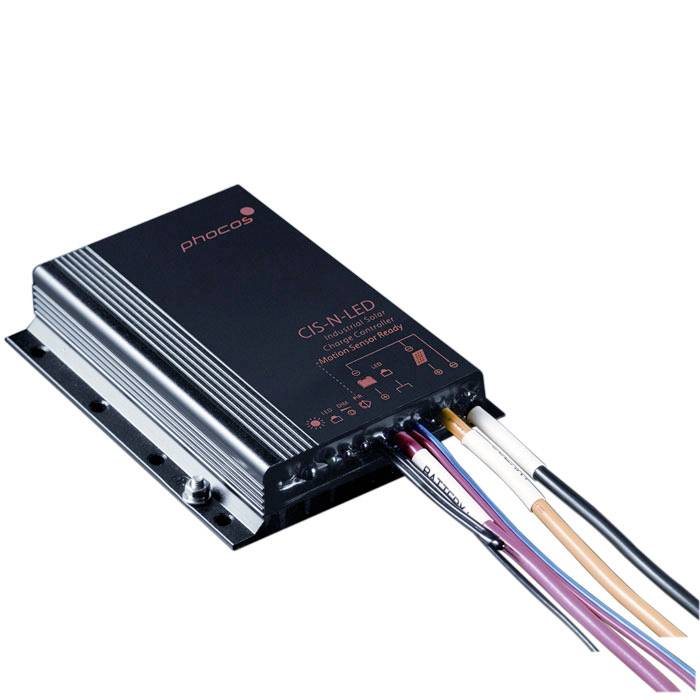

Phocos CIS-N-LED-1050 20A Charge controller PWM 12 V, 24 V 20 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge regulator Phocos CIS-N-LED-1050 20A
- Combines three functions in a single device: Charge regulator + flexible timer + LED driver
- Developed for demanding, harsh usage conditions, solar LED-lamps and solar street lighting
- Fully cast casing (protection type IP68) for longer service life, higher reliability and cost reduction
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Charging current (max.)
20 A
- Matching rechargeable battery
SLA
Lead-acid
- Control type
PWM
- Dim
(L x W x H) 99 x 92 x 22 mm
- Weight
250 g
- Width
92 mm
- Height
22 mm
- Length
99 mm
Documents & Downloads
Datasheet
Datasheet 3024597 Phocos CIS-N-LED-1050 20A Charge controller PWM 12 V, 24 V 20 A
User & Safety Instructions
User & Safety Instructions 3024597 Phocos CIS-N-LED-1050 20A Charge controller PWM 12 V, 24 V 20 A
Description
The CIS N LED charge controller has been specially designed for use under harsh weather and ambient conditions
And specifically adapted to the needs of users of LED lamps and solar street lighting. The special advantage of the CIS N LED charge controller: The controller contains three devices in one. The robust, fully enclosed housing offers good protection for a charge controller, a flexible timer and an LED driver integrated. Using the on/off timer and the freely adjustable dimming timer, the light intensity can be adjusted flexibly according to time. The CIS-N LED has a fully automatic protection function: The two deep discharge protection thresholds ensure that the light is automatically dimmed if the charging power or the battery charge falls below a certain level. There is also an input for a motion detector.
This text is machine translated.
And specifically adapted to the needs of users of LED lamps and solar street lighting. The special advantage of the CIS N LED charge controller: The controller contains three devices in one. The robust, fully enclosed housing offers good protection for a charge controller, a flexible timer and an LED driver integrated. Using the on/off timer and the freely adjustable dimming timer, the light intensity can be adjusted flexibly according to time. The CIS-N LED has a fully automatic protection function: The two deep discharge protection thresholds ensure that the light is automatically dimmed if the charging power or the battery charge falls below a certain level. There is also an input for a motion detector.
This text is machine translated.
Features
- Flexible DIMM functions
- Self-protection function: Under-and over-voltage switch
- Small size, fits even in the smallest applications
- Colour true PWM brightness control (dimming, true color)
- Input for motion detector
Scope of delivery
- Solar charge regulator
- User manual.
