Phocos CIS-N-MPPT 85/15 Charge controller MPPT 12 V, 24 V 15 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

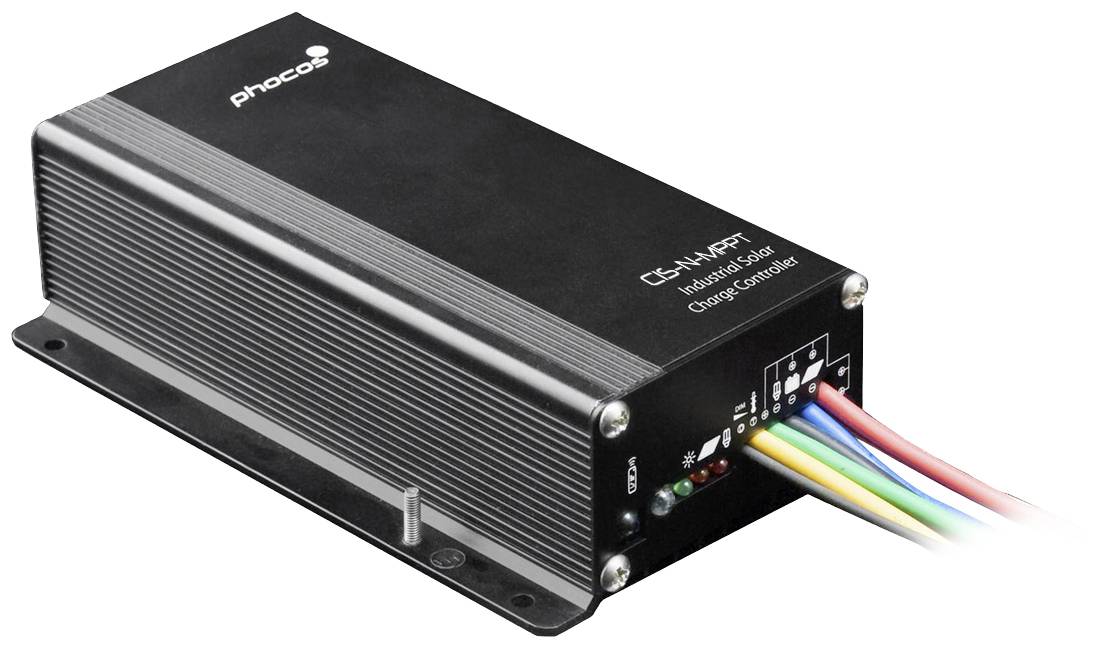

Solar charge controller Phocos CIS-N-MPPT 85/15
- Over infrared-programmable timer function with dimming
- Ideal for lighting systems
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
450 W
- Temperature range
-40 - +60 °C
- Charging current (max.)
15 A
- Matching rechargeable battery
SLA
Lead-acid
- Control type
MPPT
- Dim
(L x W x H) 150 x 88.5 x 41.4 mm
- Weight
780 g
- Width
88.5 mm
- Height
41.4 mm
- Length
150 mm
Documents & Downloads
Datasheet
Datasheet 3024598 Phocos CIS-N-MPPT 85/15 Charge controller MPPT 12 V, 24 V 15 A
User & Safety Instructions
User & Safety Instructions 3024598 Phocos CIS-N-MPPT 85/15 Charge controller MPPT 12 V, 24 V 15 A
Description
The PhocosCIS N-MPPT 85/15 industrial solar charging regulator with lighting control has been developed to withstand extreme weather/environmental conditions and ensure reliable battery protection. It includes convenient and advanced light control that lets you decide whether automatic light control with LED dimming should be time or low voltage activated.
This text is machine translated.
This text is machine translated.
Features
- A 2-year protocol of system performance data is accessible via the MXI-IR interface adapter and PC software (CISCOM)
- Up to 98% power conversion efficiency
- The 4-stage charging process increases the battery life
- The I/V or I/U sweep algorithm increases the performance of the
- Solar panels when these are in the shade Completely enclosed anodized aluminum housing prevents damages through corrosion, insects and dust
- Connection cable, 20 cm
- Compatible with 60 cell modules
- Protection class: IP68
Scope of delivery
- Solar charge regulator
- User manual.
