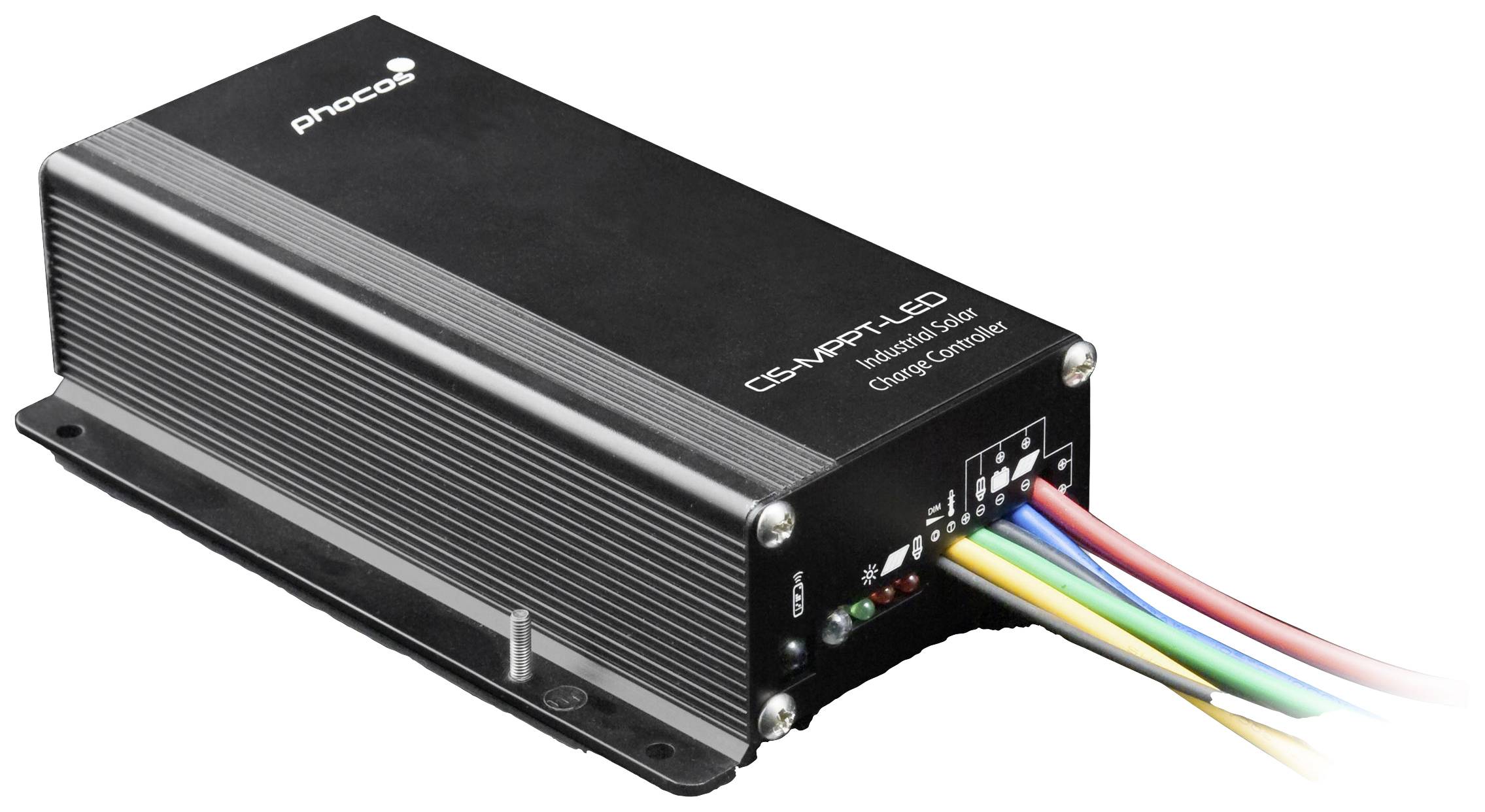

Phocos CIS-N-MPPT-LED Charge controller MPPT 12 V, 24 V 15 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar Charge Regulator Phocos CIS-N-MPPT-LED
- Three functions in one: Solar charge regulator + light timer + LED driver
- Operates in 12 or 24 V systems
- Up to 30% additional power output in comparison with conventional PWM charge controllers
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Charging current (max.)
15 A
- Matching rechargeable battery
SLA
Lead-acid
- Control type
MPPT
- Dim
(L x W x H) 150 x 88.5 x 41.4 mm
- Weight
780 g
- Width
88.5 mm
- Height
41.4 mm
- Length
150 mm
Documents & Downloads
Datasheet
Datasheet 3024599 Phocos CIS-N-MPPT-LED Charge controller MPPT 12 V, 24 V 15 A
User & Safety Instructions
User & Safety Instructions 3024599 Phocos CIS-N-MPPT-LED Charge controller MPPT 12 V, 24 V 15 A
Description
The CIS N MPPT LED is a multi-functional solar charging controller with built-in LED boost driver for solar outdoor lighting systems.
The CIS-N-MPPT-LED is equipped with a extensively adjustable automatic light timer that uses the solar input voltage to determine day and night. The CIS-N-MPPT LED adjusts to make changes. The built-in LED driver also has time and low-voltage dimming of LED strings.
Like all products in the CIS family, the CIS-N-MPPTLED has been developed for the toughest industrial environments and has a robust, fully cast (IP68) housing, which prevents damage from dust, insects and water.
The infrared communication interface enables complete control of the light timer settings and low voltage cut-off via the remote control (CIS-CU) as well as complete adjustment of the battery charge level. Access to system data (2 years) via the USB adapter (MXI-IR) and our free PC software (CISCOM) is also possible.
This text is machine translated.
The CIS-N-MPPT-LED is equipped with a extensively adjustable automatic light timer that uses the solar input voltage to determine day and night. The CIS-N-MPPT LED adjusts to make changes. The built-in LED driver also has time and low-voltage dimming of LED strings.
Like all products in the CIS family, the CIS-N-MPPTLED has been developed for the toughest industrial environments and has a robust, fully cast (IP68) housing, which prevents damage from dust, insects and water.
The infrared communication interface enables complete control of the light timer settings and low voltage cut-off via the remote control (CIS-CU) as well as complete adjustment of the battery charge level. Access to system data (2 years) via the USB adapter (MXI-IR) and our free PC software (CISCOM) is also possible.
This text is machine translated.
Features
- protection class IP68
- Passive infrared input for motion sensors (PIR)
- Infrared programmable load time control and dimming, Ideal for lighting systems
- 2-year data logger memory
- Compatible with 60-cell PV modules
- Programmable for LFP batteries with a BMS under use
- From CISCOM in expert mode
Scope of delivery
- Solar charge regulator
- User manual.
