Phocos CIS-N-N-MPPT 100/30 Charge controller MPPT 12 V, 24 V 30 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

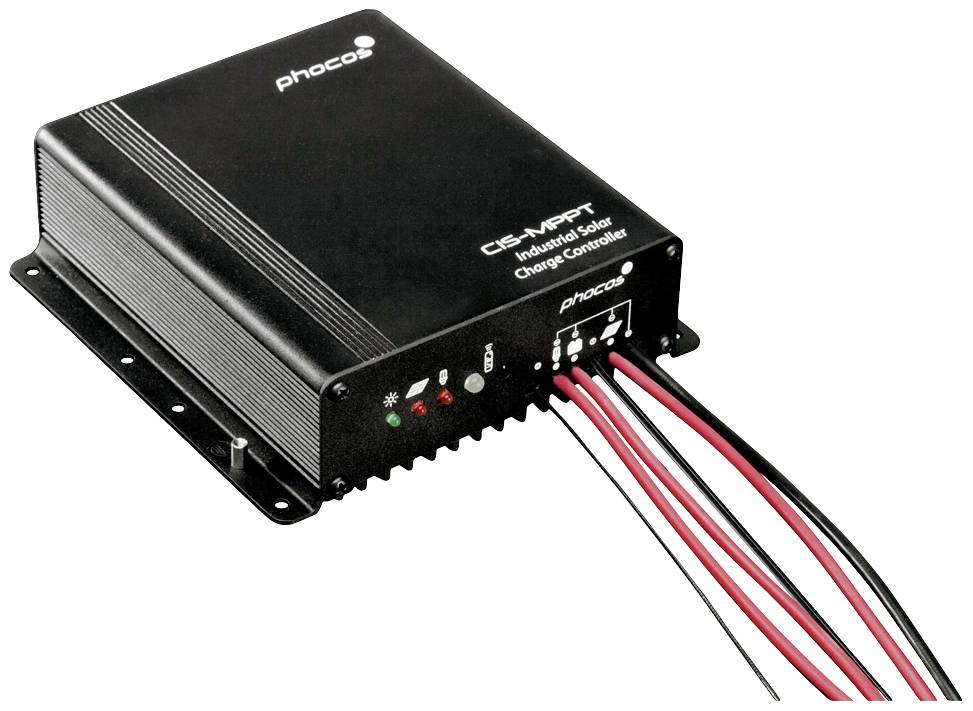

Solar charge regulator Phocos CIS-N-N-MPPT 100/30
- Via infrared-programmable timer function with dimming Ideal for lighting systems
- Up to 98% power conversion efficiency
- The 4-stage charging process increases the battery life
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
900 W
- Charging current (max.)
30 A
- Own power consumption
16 mA
- Matching rechargeable battery
SLA
Lead-acid
Li-ion
- Control type
MPPT
- Dim
(W x H x D) 128 x 152 x 43 mm
- Weight
1.3 kg
- Features
Nightlight
Selectable end-of-charge voltage
- Current load
30 A
- Width
128 mm
- Height
152 mm
- Depth
43 mm
Documents & Downloads
Datasheet
Datasheet 3024594 Phocos CIS-N-N-MPPT 100/30 Charge controller MPPT 12 V, 24 V 30 A
User & Safety Instructions
User & Safety Instructions 3024594 Phocos CIS-N-N-MPPT 100/30 Charge controller MPPT 12 V, 24 V 30 A
Description
The Phocos CIS-N-MPPT 100/30 industrial solar charging regulator with lighting control has been developed to withstand extreme weather/environmental conditions and ensure reliable battery protection. It includes convenient and advanced light control that lets you decide whether automatic light control with LED dimming should be time or low voltage activated.
This text is machine translated.
This text is machine translated.
Features
- A 2-year protocol of system performance data is accessible via the MXI-IR interface adapter and PC software (CISCOM)
- The I/V or I/U sweep algorithm increases the performance of the
- Solar panels if they are in the shade
- Completely enclosed anodized aluminum casing is prevented
- Damage caused by corrosion, insects and dust
- 20/30 CM CONNECTION CABLE (CIS-N-MPPT 85/15 / CIS-N-MPPT 100/30)
- Compatible with 60 cell modules
- Compatible with lithium batteries (no BMS communication)
Scope of delivery
- Solar charge regulator
- User manual.
