Phocos CXNup 10 Charge controller PWM 12 V, 24 V 10 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

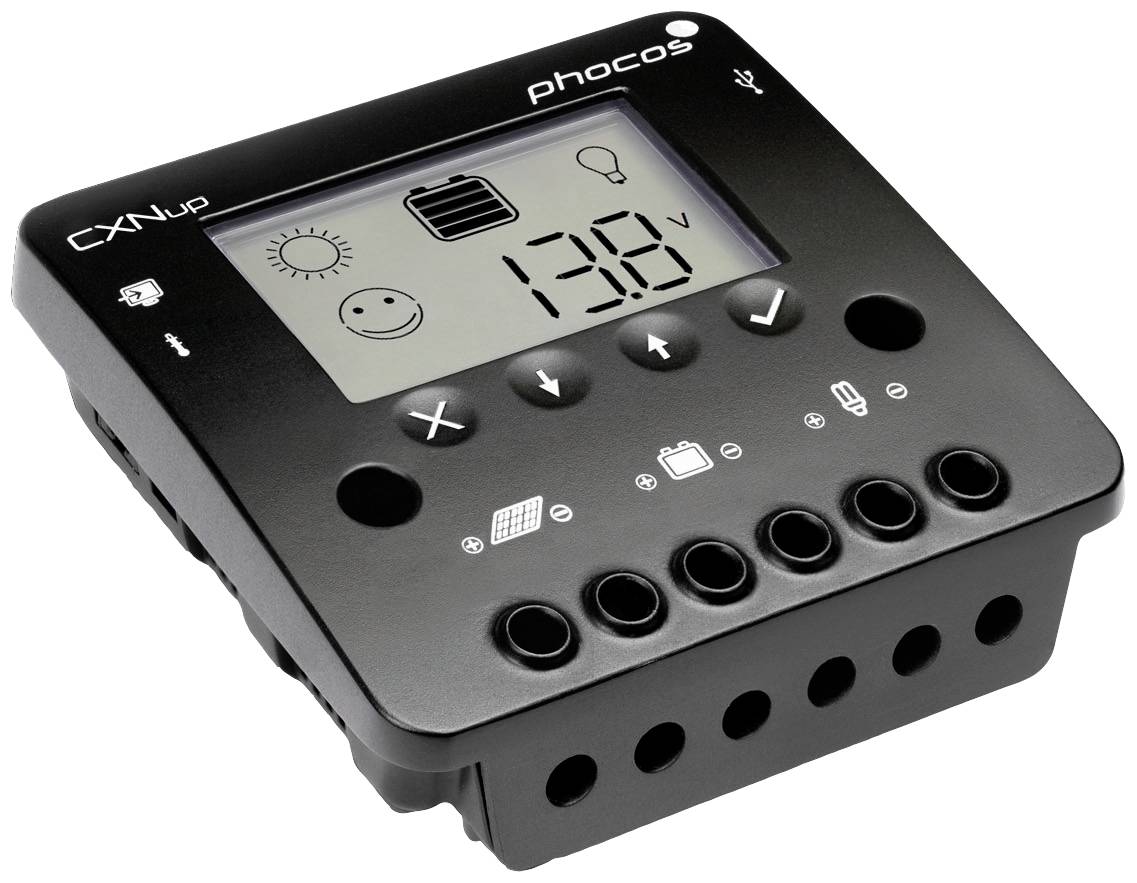

Solar charge regulator Phocos CXNup 10
- Prepared for 12 or 24 V battery charging
- Suitable for charging systems up to 1.4 kW
- Load status-display
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Temperature range
-40 to +50 °C
- Charging current (max.)
10 A
- Own power consumption
12 mA
- Matching rechargeable battery
LiFePO4
Lead-acid
SLA
- Control type
PWM
- Dim
(W x H x D) 101 x 103 x 32 mm
- Weight
168 g
- Features
LCD
Data logger
- Current load
10 A
- Module load (max.)
10 A
- Width
101 mm
- Height
103 mm
- Depth
32 mm
Documents & Downloads
Datasheet
Datasheet 3024591 Phocos CXNup 10 Charge controller PWM 12 V, 24 V 10 A
User & Safety Instructions
User & Safety Instructions 3024591 Phocos CXNup 10 Charge controller PWM 12 V, 24 V 10 A
Description
The CXNup series is an innovative family of charge regulators and is suitable for a variety of applications. The CXNup has an intuitive user interface and stores up to two (2) years of valuable system performance data that can be accessed via the LCD and PhocosLink software.
Real-time battery voltage, charge status (%), charge/load current and system status are clearly displayed on the large backlit LCD. Selectable acoustic battery alarms and a programmable street lighting setting are also standard.
This text is machine translated.
Real-time battery voltage, charge status (%), charge/load current and system status are clearly displayed on the large backlit LCD. Selectable acoustic battery alarms and a programmable street lighting setting are also standard.
This text is machine translated.
Features
- USB charging port
- Data logger information can be exported
- Touch buttons ensure continuous operation and avoid mechanical errors
- 2 years data readout
- User-friendly LCD displays extensive system information
- Four-stage PWM charging algorithm with integrated temperature compensation
- Fully electronically protected
- Programmable load function for solar street lamps
- Corrosion-resistant cable clamps with setting screws
- Adjustable battery type
Scope of delivery
- Solar charge regulator
- User manual.
