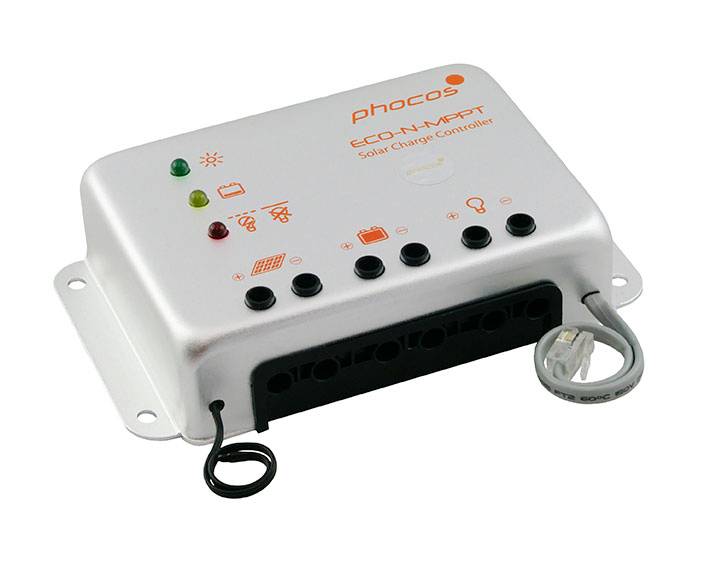

Phocos ECO-N-MPPT 85/15 Charge controller MPPT 12 V, 24 V 15 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Solar charge controller Phocos ECO-N-MPPT 85/15
- Four-stage charging ensures maximum battery life
- Adjustable battery type
- Compatible with lithium batteries
Technical specifications
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
450 W
- Charging current (max.)
15 A
- Own power consumption
10 mA
- Matching rechargeable battery
SLA
Lead-acid
Li-ion
- Control type
MPPT
- Dim
(W x H x D) 147 x 90 x 31 mm
- Weight
1.1 kg
- Features
Selectable end-of-charge voltage
Nightlight
- Current load
15 A
- Module load (max.)
15 A
- Width
147 mm
- Height
90 mm
- Depth
31 mm
Documents & Downloads
Datasheet
Datasheet 3024592 Phocos ECO-N-MPPT 85/15 Charge controller MPPT 12 V, 24 V 15 A
User & Safety Instructions
User & Safety Instructions 3024592 Phocos ECO-N-MPPT 85/15 Charge controller MPPT 12 V, 24 V 15 A
Description
The ECO-N-MPPT is an innovative, cost-effective solution for applications with low power consumption that require maximum charging efficiency. The powerful Maximum Power Point tracking algorithm from Phocos ensures optimum charging current from your panel / solar system under all conditions. This results in a 30% higher power yield than the conventional PWM charge regulator. This additional efficiency, coupled with the precise 4-stage (external temperature sensor included), temperature-compensated charging by Phocos, significantly extends the battery life and reduces the number of battery changes over the lifetime of the system.
The enclosed housing and corrosion-resistant cable connections protect the ECO-N-MPPT from the most adverse environmental conditions. An intuitive 3-LED display shows basic system status data.
This text is machine translated.
The enclosed housing and corrosion-resistant cable connections protect the ECO-N-MPPT from the most adverse environmental conditions. An intuitive 3-LED display shows basic system status data.
This text is machine translated.
Features
- Operation in 12 or 24 V battery systems (automatic detection)
- Up to 98% power conversion efficiency
- Compact size fits in narrow spaces
- Robust, cast design resists vibrations, dust, insects and water inlet
- Installation requires only one flat head screwdriver
- Built-in low voltage switch-off function
- Programmable night light, battery type, charging voltage and deep discharge protection limit (MXI accessories required)
Scope of delivery
- Solar charge regulator
- User manual.
