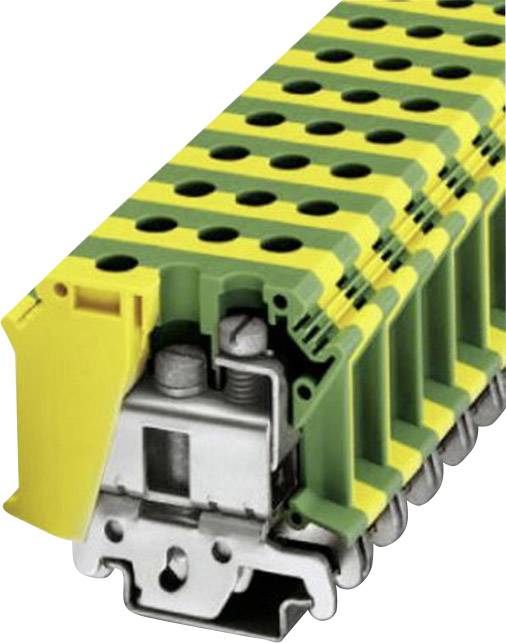

Image similar
Image similar
Phoenix Contact 0443065 PG terminal 15 mm Screws Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Highlights & Details
PE protective conductor terminal
- UISLKG 35
Technical specifications
- Closed housing.
- Product type
PG terminal
- Features
closed
- Connection
Screws
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
18
- AWG max.
2
- Clamp width
15 mm
- No. of rows
1
- Pins per row
1
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Stripping length (max.)
16 mm
- Manufacturer part #
0443065
- Content
1 pc(s)
- Industrial packaging
No
- Type
UISLKG 35
- Dim
(L x W x H) 55 x 15 x 51 mm
- Width
15 mm
- Height
51 mm
- Length
55 mm
- Weight
0.07
- Flammability rating
V2
- Insulation material
PA
- Insulation
PA
- Connection
-
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 743332 Phoenix Contact 0443065 PG terminal 15 mm Screws Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 743332 Phoenix Contact 0443065 PG terminal 15 mm Screws Green, Yellow 1 pc(s)
Description
Hints
Check the current rating of the supporting rails
