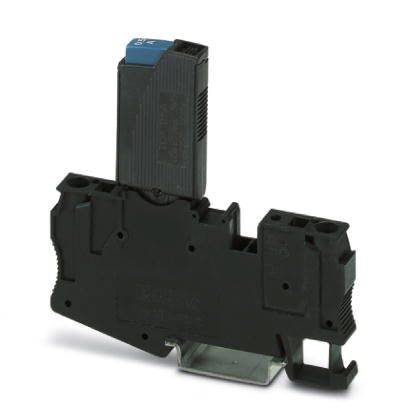

Phoenix Contact 0712107 TCP 0,1A RCCB 1 pc(s)
EAN:
Part number:
Item no:
Product type
RCCB
Type
Thermal device protection switch
Connection
Jack connector
Factory colour
Black
Min. temperature
+60 °C
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Mounting type: On base element
- Number of poles: 1
- Dimensioning surge voltage: 2.5 kV
- Rated voltage 250 V AC
- Rated current in 0.1 A.
- Dielectric strength 3000V AC (operating range)
- Product type
RCCB
- Type
Thermal device protection switch
- Connection
Jack connector
- Factory colour
Black
- Min. temperature
+60 °C
- Max. temperature
-20 °C
IP40

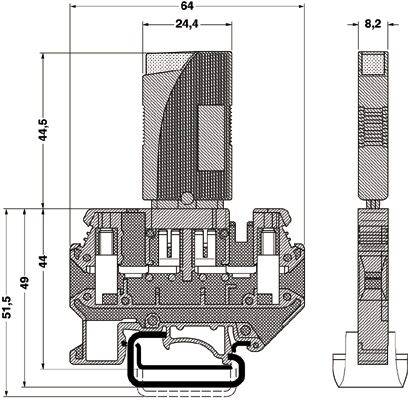

- Length
44.5 mm
- Width
8.2 mm
- Height
24.4 mm
- Content
1 pc(s)
- Type
TCP 0,1A
- Dim
(L x W x H) 44.5 x 8.2 x 24.4 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2208745 Phoenix Contact 0712107 TCP 0,1A RCCB 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2208745 Phoenix Contact 0712107 TCP 0,1A RCCB 1 pc(s)
Description
A version with screw or tension spring connection is used as the basic terminal. The re-switchable thermal circuit breaker is available in ten fine nominal current ratings from 0.1 to 10 A.
