Phoenix Contact 0903045 EC-E 4A DC24V RCCB 1 pc(s)
EAN:
Part number:
Item no:
Product type
RCCB
Type
Electronic device protection switch
Connection
Screws
Factory colour
Black
Min. temperature
+50 °C
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Mounting type: Mounting rail 35 mm
- Number of poles: 1
- Dimensioning surge voltage: 0.5 kV
- Operating voltage: 24 V DC
- Required pre-fuse: Not required, integrated fail-safe element
- Electrical strength: Max. 32 V DC (load circuit)
- Product type
RCCB
- Type
Electronic device protection switch
- Connection
Screws
- Factory colour
Black
- Min. temperature
+50 °C
- Max. temperature
0 °C
IP20
- Length
80 mm
- Width
12.5 mm
- Height
83 mm
- Content
1 pc(s)
- Type
EC-E 4A DC24V
- Dim
(L x W x H) 80 x 12.5 x 83 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2208884 Phoenix Contact 0903045 EC-E 4A DC24V RCCB 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2208884 Phoenix Contact 0903045 EC-E 4A DC24V RCCB 1 pc(s)
Description

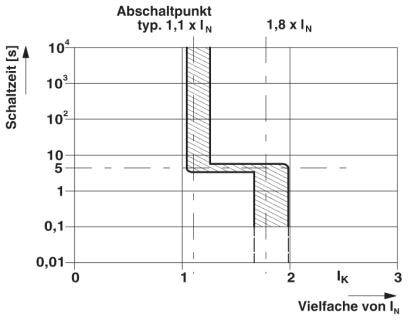

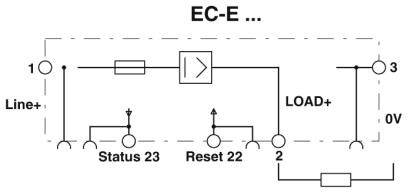

Combination of active electronic current limitation for the short-circuit case and an overload cut-off ensure that the circuit breaker can react faster to overload cases than the switching power supply. Selective protection of all 24 V DC load circuits on switched-mode power supplies.
