Phoenix Contact 1011977 TTC-EX-PP Separator Piece 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Width: 1.6 mm
- Height: 150 mm
- Depth: 76 mm
- Colour: Blue (RAL 5015)
- Flammability class according to UL 94 V-0
- Material housing FR 4-21
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 2000 m (amsl)
- Mounting type: Mounting rail: TH 35 - 7.5 mm
- Permissible air humidity (operation): 5 % ... 95 %.
- Product type
Separator
- Manufacturer part #
1011977
- Dim
(W x H x D) 1.6 x 150 x 76 mm
- Width
1.6 mm
- Height
150 mm
- Depth
76 mm
- Content
10 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3561516 Phoenix Contact 1011977 TTC-EX-PP Separator Piece 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3561516 Phoenix Contact 1011977 TTC-EX-PP Separator Piece 10 pc(s)
Description

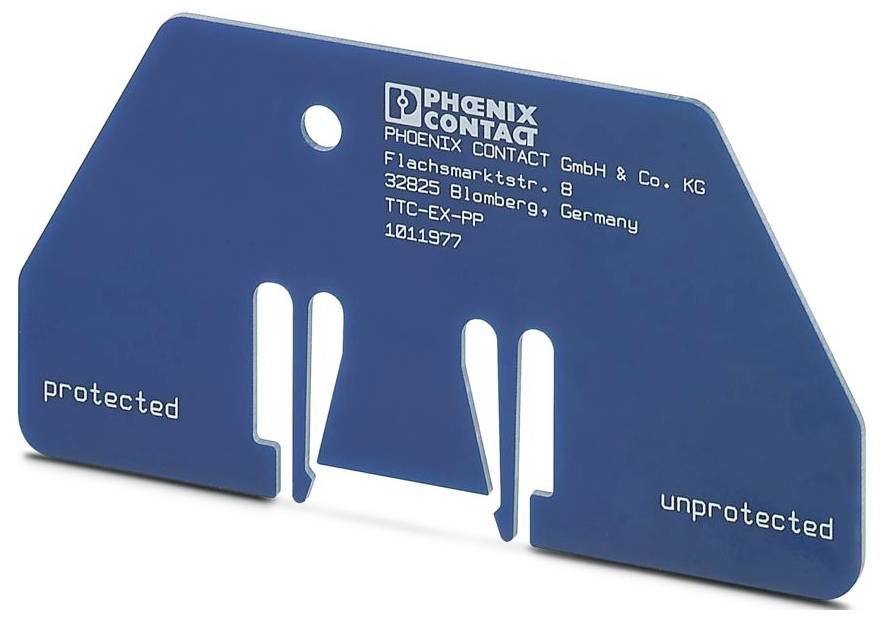

Separation plate for NS-35/7.5 mounting rails for ensuring the thread dimension of 50 mm between telecommunication module and surge protection in TTC-EX systems.
