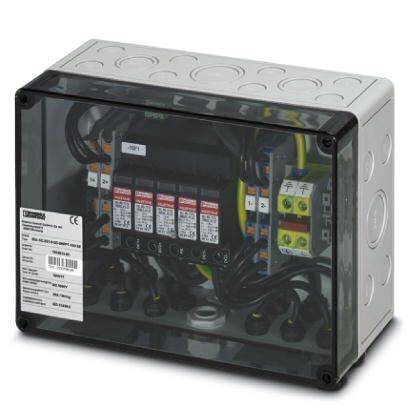

An electrical distribution board with multiple fuses, cables, and a nameplate, mounted in a grey enclosure.

Image similar

An electrical distribution board with multiple fuses, cables, and a nameplate, mounted in a grey enclosure.

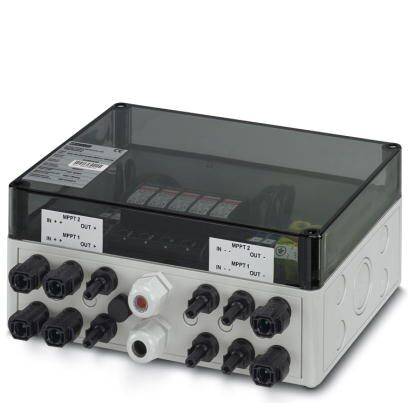

A rectangular, grey electronics distribution box with multiple black connections and a transparent lid.

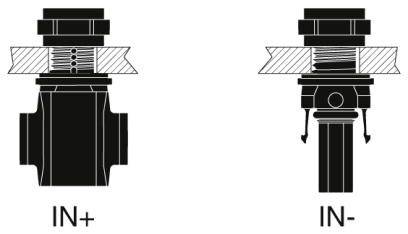

Two valve diagrams: On the left with marking 'IN+' showing the positive inlet, on the right with marking 'IN-' showing the negative inlet.

A green and yellow striped rectangular area with two grey circles and a grey rectangle in the centre. Below it, an earthing symbol.

Earth/ground connection with a green and yellow striped protective sleeve marked with an earthing symbol at the bottom.

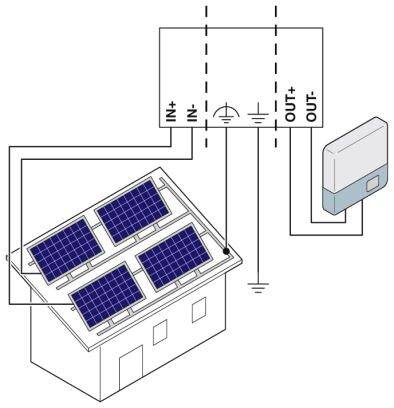

Diagram of a Solar Installation: A house roof with solar panels, connected to an inverter. Cables show electricity flow to and from the device.

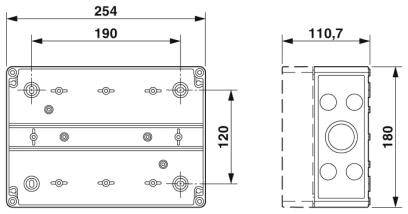

Technical drawing of a rectangular enclosure with dimensions: 254 mm x 120 mm x 110.7 mm. Contains mounting points.

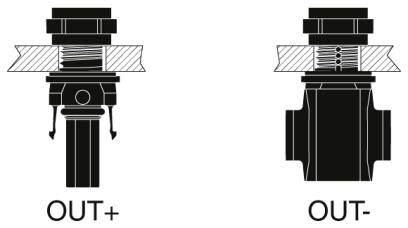

Two technical diagrams show valves with labels 'OUT+' and 'OUT-'. The left-hand one has additional components, the right-hand one does not.

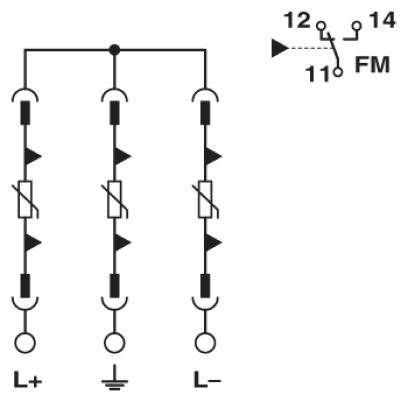

Electrical Circuit Diagram: Three parallel electrical circuits with diodes and a switch symbol in the top right corner with labels '12', '11', '14', 'FM'.

1/9

Image similar

Phoenix Contact

Datasheet (PDF)

European union

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

IP65 rating
Ambient temperature (operation): -20 °C - +55 °C.
Cover/door material: Polycarbonate (transparent)
Number of string inputs: 2 (per MPP tracker)
Current per string: 20 A.
Number of outputs: 1 (per MPP tracker)
Number of MPP trackers supported: 2
Type of cable entry: SUNCLIX
Cable cross-section String input: 2.5 mm² - 6 mm²
Cable cross-section output: 2.5 mm² - 6 mm²

Product type: Generator junction box

Dim: (W x H x D) 254 x 180 x 111 mm

Content: 1 pc(s)

Width: 254 mm

Height: 180 mm

Depth: 111 mm

System voltage: 1000 V

UKCA: yes

Documents & Downloads

Datasheet

European union

Datasheet 2208955 Phoenix Contact 1016813 SOL-SC-2ST-0-DC-2MPPT-1001SE Generator junction box

Datasheet 2208955 Phoenix Contact 1016813 SOL-SC-2ST-0-DC-2MPPT-1001SE Generator junction box

User & Safety Instructions

User & Safety Instructions 2208955 Phoenix Contact 1016813 SOL-SC-2ST-0-DC-2MPPT-1001SE Generator junction box

Description

Standard-compliant switching device combination thanks to the application of DIN EN 61439.
