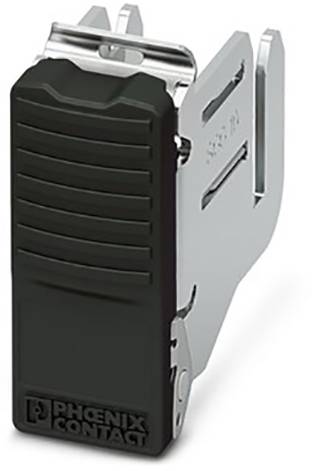

Phoenix Contact 1019420 Black/silver 10 pc(s)
EAN:
Part number:
Item no:
Factory colour
Black/silver
Stripping length (max.)
40 mm
Dim
(L x W) 26.80 mm x 9 mm
Manufacturer part #
1019420
Content
10 pc(s)
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 4.20 / piece)
€ 96.64
-57 %
€ 42.01
plus VAT.
Only 1 Set(s) available
Technical specifications
- Cable diameter 2-5 mm
- Factory colour
Black/silver
- Stripping length (max.)
40 mm
- Dim
(L x W) 26.80 mm x 9 mm
- Manufacturer part #
1019420
- Content
10 pc(s)
- Width
9 mm
- Length
26.80 mm
- Type
SCC 5
Documents & Downloads
Datasheet
Datasheet 2435740 Phoenix Contact 1019420 Black/silver 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2435740 Phoenix Contact 1019420 Black/silver 10 pc(s)
Description
The screen clamps SCC enable you to mount the device without tools.
A simple and low-fatigue shield connection can be carried out thanks to the comfortable clamping bracket and the non-pressurized contact spring. The design of the contact spring guarantees a reproducible and long-term stable contact quality and compensates for possible setting effects of the conductor.
For the flexibility of the shield connection, the terminals are available for direct mounting, NLS mounting and rail mounting.
For better clarity and assignment of the individual shield terminals, the terminals have large marking surfaces on the clamp bracket. This facilitates the assignment of the cable according to the circuit diagram.
This text is machine translated.
A simple and low-fatigue shield connection can be carried out thanks to the comfortable clamping bracket and the non-pressurized contact spring. The design of the contact spring guarantees a reproducible and long-term stable contact quality and compensates for possible setting effects of the conductor.
For the flexibility of the shield connection, the terminals are available for direct mounting, NLS mounting and rail mounting.
For better clarity and assignment of the individual shield terminals, the terminals have large marking surfaces on the clamp bracket. This facilitates the assignment of the cable according to the circuit diagram.
