Phoenix Contact 1031673 FL SWITCH 2316 PN Industrial Ethernet switch
EAN:
Part number:
Item no:
Highlights & Details

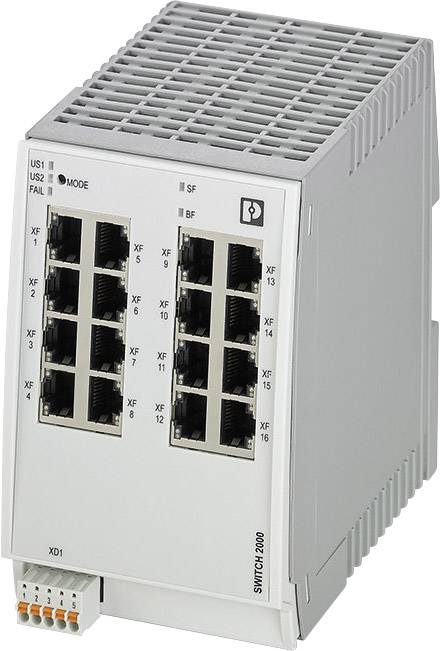

Industrial Ethernet Switch FL SWITCH 2316 PN
- For universal use.
Technical specifications
- PROFINET preset, status LEDs
- Product type
Industrial Ethernet switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Working principle
Managed switch
- Ethernet ports
16
- Weight
445.000 g
- Width
85 mm
- Height
130 mm
- Depth
115 mm
- Type
FL SWITCH 2316 PN
IP20
- Operating voltage
24 V DC
- Current consumption
455 mA
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1827380 Phoenix Contact 1031673 FL SWITCH 2316 PN Industrial Ethernet switch
Information
Information 1827380 Phoenix Contact 1031673 FL SWITCH 2316 PN Industrial Ethernet switch
Description
For increasing networks
The Managed Switches2000 offers clear configuration and diagnostic possibilities as well as an automatic error detection and elimination. The 2200 and 2300 versions along with an extended function range and glass fiber communication as well as approvals for the process industry.
This text is machine translated.
The Managed Switches2000 offers clear configuration and diagnostic possibilities as well as an automatic error detection and elimination. The 2200 and 2300 versions along with an extended function range and glass fiber communication as well as approvals for the process industry.
