Buy Phoenix Contact 1038567 TC MOBILE I/O X200-4G SMS relay

Industrial network device with DIN rail mounting. Front shows connections and digital displays, suitable for industrial applications.

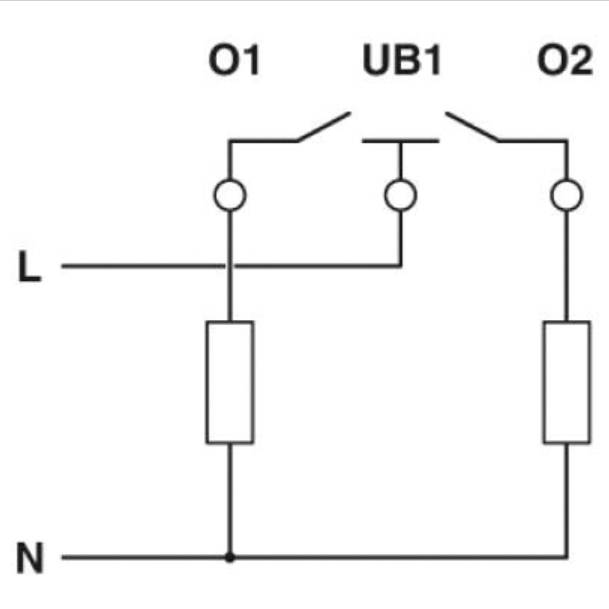

'Circuit diagram shows two switches O1 and O2 connected in series with a voltage source UB1, linked to a circuit with live (L) and neutral (N) conductors.'

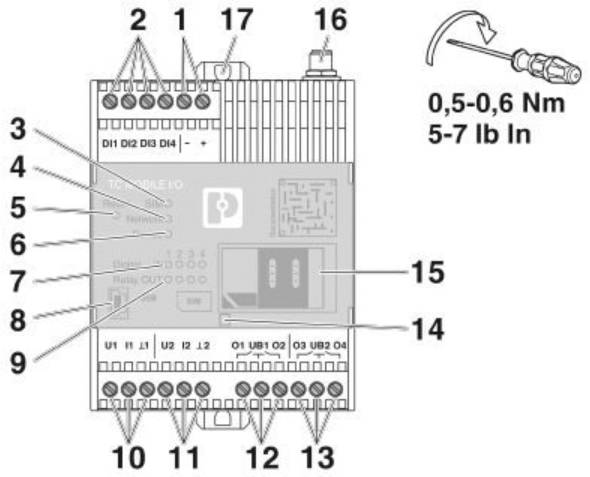

'Diagram of an electronic control unit with numbered connections from 1 to 17 and a torque indication of 0.5–0.6 Nm (5–7 lb in).'

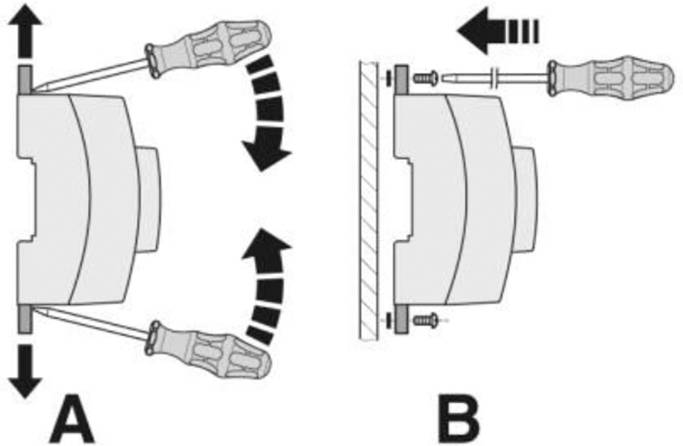

'Diagram shows the adjustment of a mechanism with a screwdriver. Part A moves vertically, part B rotates horizontally.'<br><br>Note: The translation maintains the original meaning and structure while using British English terminology.

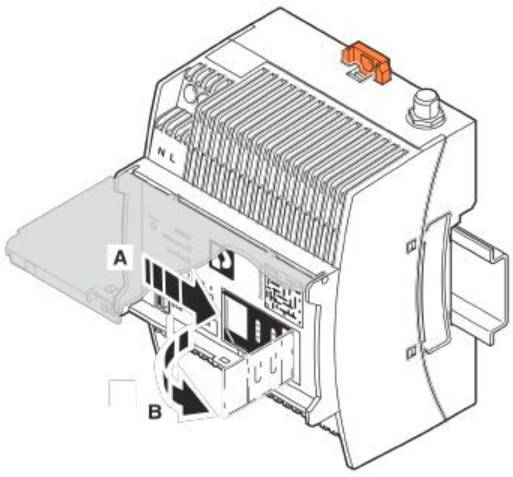

Drawing of an electrical switch with 'A' and 'B' markings, showing connections and an orange switch on top.

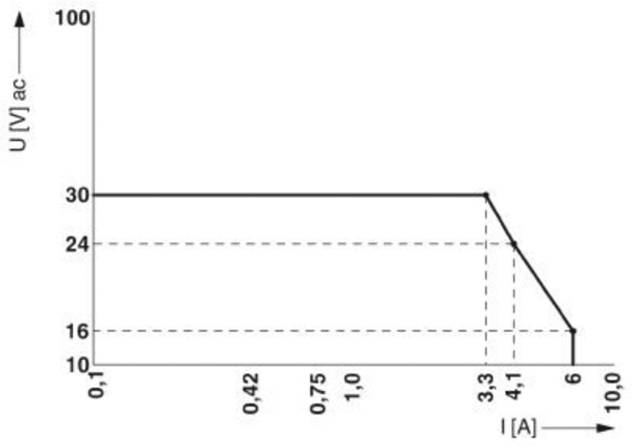

'Diagram shows voltage-current curve. Voltage (U) in volts on Y-axis, current (I) in amperes on X-axis. Important: constant until approximately 4.1 A, then decreasing. Values marked at 0.42, 0.75, 1.0, 3.3 A.'

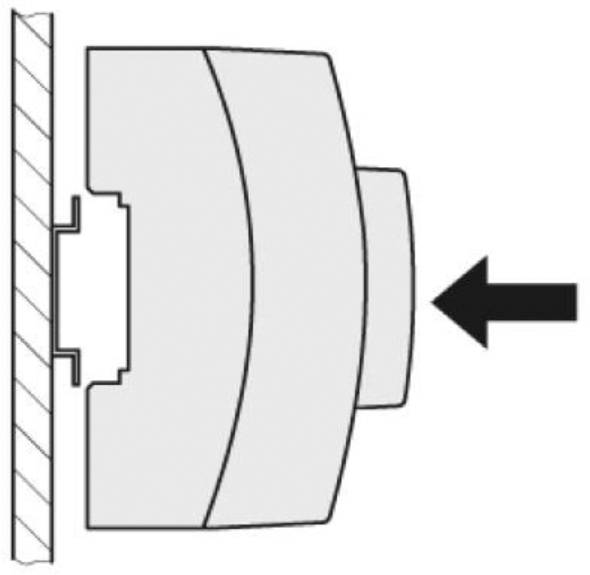

Diagram shows a side view of a mounted lens, with an arrow pointing to the right indicating its placement.

A device with built-in connections, marked with 'N' and 'L'. Arrows A and B point to different socket positions.

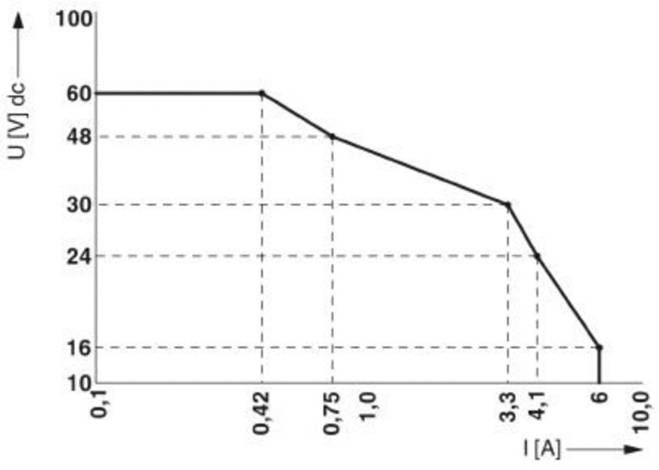

Diagram shows the curve of a photovoltaic module characteristic: Voltage (U) rises to 60V, Current (I) up to 6A.

1/9

13 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 436.13 / piece)

€

Report legal concerns

Highlights & Details

SMS RELAY - TC MOBILE I/O X200-4G

Monitor SMS relays and signaling module, European version, analogue and digital values over mobile network
Future-proof 4G technology (LTE CAT1)
Supply voltage 10 V ... 60 V DC
Alarm via SMS in the field and, for example, via e-mail in the control room

Technical specifications

Switch performance: 100 W
Switching voltage minimum: 100 mV
Maximum switching voltage 60 V/DC; 30 V/AC

Type: TC MOBILE I/O X200-4G

Operating voltage: 10 V/DC...60 V DC

Current consumption: 80 mA

Manufacturer part #: 1038567

Dim: (L x W x H) 62 x 72 x 90 mm

Height: 90 mm

Length: 62 mm

Width: 72 mm

Outputs: 4 relay outputs

Max. operating temperature: +85 °C

Inputs: 4 x digital, 2 x analogue

Min. operating temperature: -40 °C

Operating temperature: -40 up to +85 °C

UKCA: not relevant

Product type: SMS relay

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2236721 Phoenix Contact 1038567 TC MOBILE I/O X200-4G SMS relay

Description

The compact alarm system monitors digital and analogue values over the mobile network. In addition, the device switches relay outputs from a distance. The device offers many useful software functions, such as SMS message chain, SMS in the event of voltage drop, logbook dispatch via e-mail and different user roles. To configure, you only need a USB connection to a computer with a web browser.
