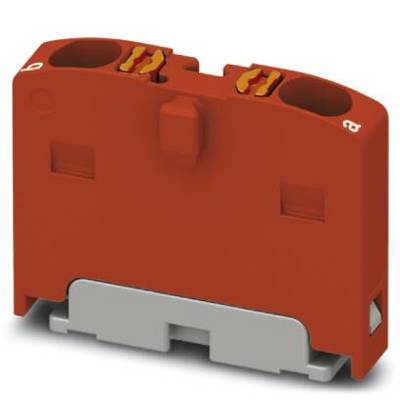

Phoenix Contact 1045929 Red 50 pc(s)
EAN:
Part number:
Item no:
Factory colour
Red
AWG max.
14
Stripping length
8 mm
Stripping length (max.)
10 mm
Dim
(L x W) 21.6 mm x 4.2 mm
Datasheet (PDF)
Technical specifications
- Flammability class according to UL 94: V0
- Width: 4.2 mm
- Number of floors: 1
- Number of ports: 2
- Potential: 1
- Insulating material: PA
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Over voltage category III
- Insulating material group: I
- Maximum power loss at rated condition: 0.56 W.
- Maximum load current 21 A (at 2.5 mm² cross section)
- Open side wall: No.
- Total current max. 21 A.
- Factory colour
Red
- AWG max.
14
- Stripping length
8 mm
- Stripping length (max.)
10 mm
- Dim
(L x W) 21.6 mm x 4.2 mm
- Connection
Push-in connector
- Manufacturer part #
1045929
- Content
50 pc(s)
- Nominal voltage
450 V
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Width
4.2 mm
- Length
21.6 mm
- Type
PTFIX 2X1,5 RD
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209021 Phoenix Contact 1045929 Red 50 pc(s)
Datasheet 2209021 Phoenix Contact 1045929 Red 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2209021 Phoenix Contact 1045929 Red 50 pc(s)
Description
Distributor block, base terminal, nominal voltage: 450 V, nominal current: 17.5 A, connection type: Push-in connection, number of connections: 2, cross-section: 0.14 mm² - 2.5 mm², AWG: 26 - 14, width: 4.2 mm, height: 17.7 mm, color: Red, mounting type: Snap-on mounting rail adapter
