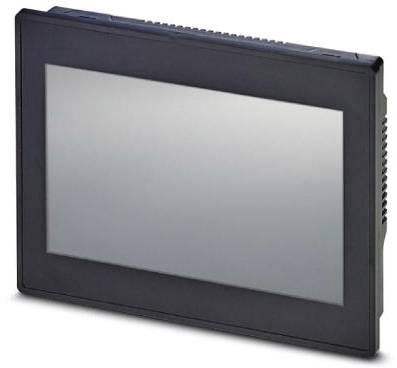

Phoenix Contact 1046666 BTP 2070W PLC touch panel 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Weight 400 g
- Material casing: Plastic
- Typical power consumption 0.4 A.
- Power supply 24 V/DC ± 15 %
- Display: 17.8 cm / 7" TFT
- Touch technology: analogueue resistive (polyester)
- Brightness: 300 cd/m² typical (adjustable)
- Colors: 262144 colors
- MTBF background lighting 20000 h
- Left reading angle 70 °
- Reading angle right: 70 °
- Upper reading angle: 50 °
- Reading angle lower: 70 °
- Background lighting: LED
- Manufacturer part #
1046666
- Type
BTP 2070W
- Product type
PLC touch panel
- Interfaces
2x COM (RS-232/422/485), 1x USB 2.0 type A, 1x USB 2.0 type B.
- Display
Yes
- Resolution
800 x 480 p
- Max. ambient temperature
+50 °C
- Min. ambient temperature
0 °C
- Operating voltage
24 V DC
- Height
138 mm
- Length
5 mm
- Width
186 mm
IP66
IP20
- Assembly dimensions
175 mm x 127 mm x 31 mm
- Content
1 pc(s)
- Dim
(L x W x H) 5 x 186 x 138 mm
- Fitting type (details)
Front installation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137513 Phoenix Contact 1046666 BTP 2070W PLC touch panel 24 V DC
User & Safety Instructions
User & Safety Instructions 2137513 Phoenix Contact 1046666 BTP 2070W PLC touch panel 24 V DC
Description
Visu+ RT is integrated as standard in all BTP 2000 devices. Connection to all relevant control systems thanks to a variety of available drivers.
