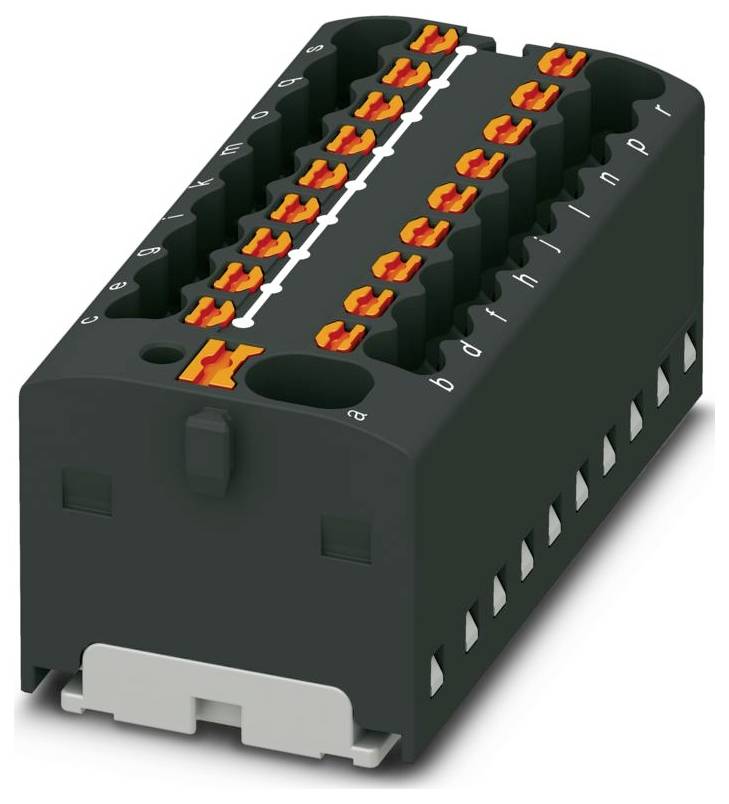

Image similar

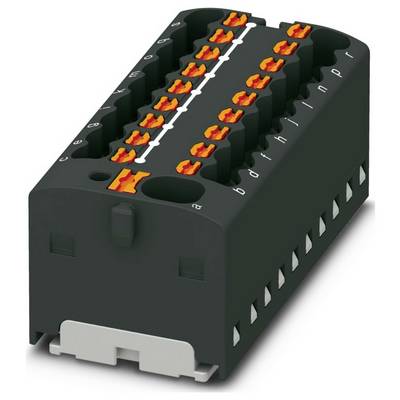

Image similar
Phoenix Contact 1047424 Distribution block Black 20 pc(s)
EAN:
Part number:
Item no:
Product type
Distribution block
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
17.5 A
Content
20 pc(s)
Datasheet (PDF)
Technical specifications
- Cover plate required: No.
- Number of clamping points per level: 19
- Rated current In:17.5 A.
- Flammability class of insulation material according to UL94: V0
- Floors bridged: Yes
- Material of the insulating body: Other
- Product type
Distribution block
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- Number of pins
19
- Factory colour
Black
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
450 V
- Manufacturer part #
1047424
- Content
20 pc(s)
- Type
PTFIX 4/18X1,5 BK
- Dim
(W x H x D) 43.9 x 21.6 x 17.7 mm
- Width
43.9 mm
- Height
21.6 mm
- Flammability rating
V0
- Depth
17.7 mm
- Rated voltage
450 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562244 Phoenix Contact 1047424 Distribution block Black 20 pc(s)
User & Safety Instructions
User & Safety Instructions 3562244 Phoenix Contact 1047424 Distribution block Black 20 pc(s)
Description
Distributor block, basic terminal with infeed, nominal voltage: 450 V, nominal current: 17.5 A, number of connections: 19, tap , cross section: 0.14 mm² - 2.5 mm², push-in connection, collective connection , rated cross-section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting type: Snap-on mounting rail adapter, direct mounting with flange, flying, color: Black
