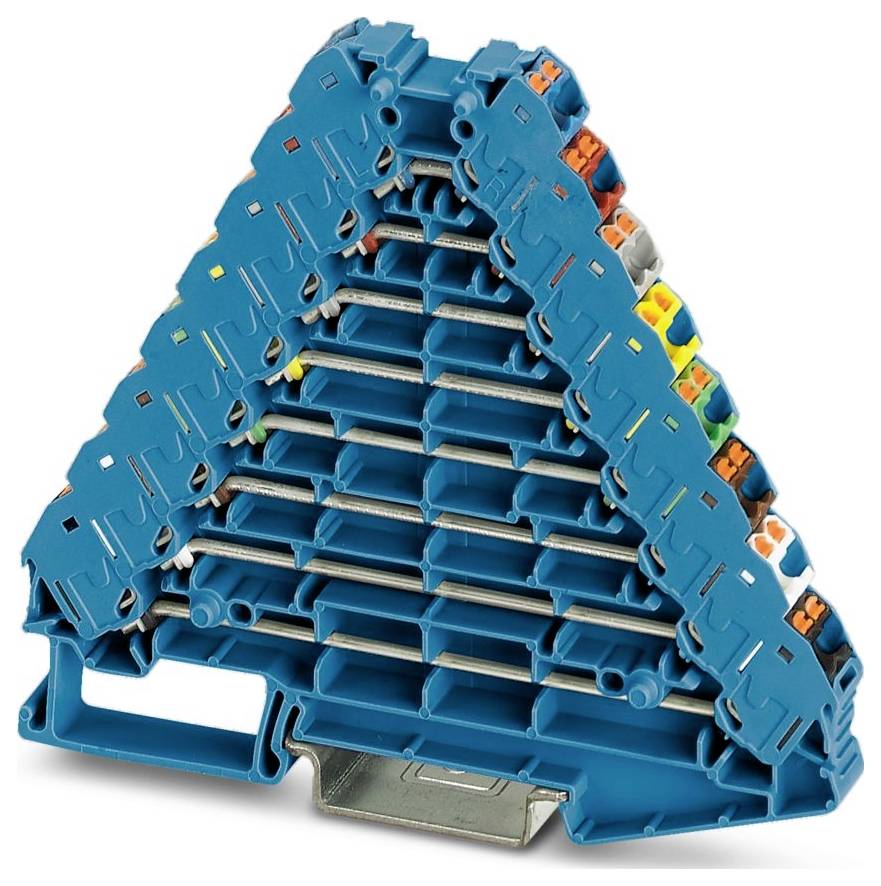

Phoenix Contact 1049773 Shunt distributor Push-in connector Blue 10 pc(s)
EAN:
Part number:
Item no:
Product type
Shunt distributor
Connection
Push-in connector
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
8 A
Datasheet (PDF)
Technical specifications
- Product type
Shunt distributor
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
8
- Factory colour
Blue
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Nominal voltage
250 V
- Manufacturer part #
1049773
- Content
10 pc(s)
- Type
PTRV 8 BU/VDE 0815
- Dim
(W x H x D) 8.3 x 100 x 87.5 mm
- Width
8.3 mm
- Height
100 mm
- Flammability rating
V0
- Connector colour
Blue
- Depth
87.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562192 Phoenix Contact 1049773 Shunt distributor Push-in connector Blue 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3562192 Phoenix Contact 1049773 Shunt distributor Push-in connector Blue 10 pc(s)
