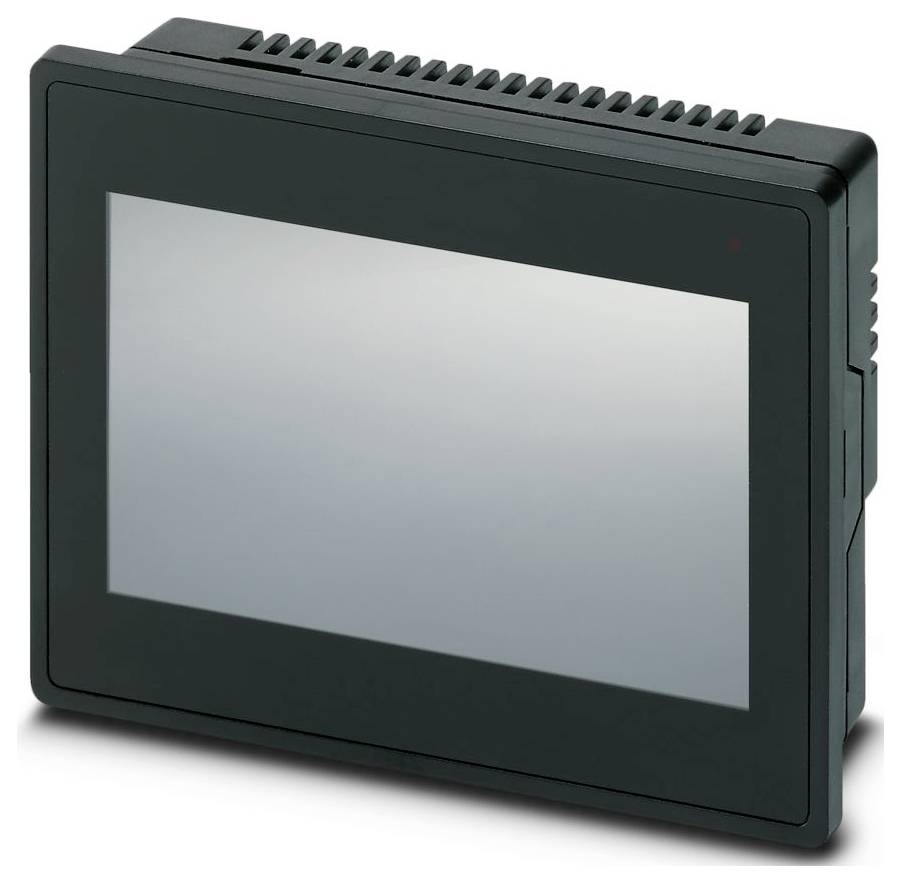

Phoenix Contact 1050387 BTP 2043W Touchpanel
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Material housing: Plastic
- Ambient conditions: Environmental conditions
- Protection class IP66 (on front), IP20 (on back)
- Ambient temperature (operation): 0 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 85 °C
- Mounting type: Front mounting
- Permissible air humidity (operation): 10 % ... 95% (no condensation)
- Vibration (operation): DIN EN 60068-2-6
- External dimensions: External dimensions
- Width / Height / Depth: 120 mm / 89 mm / 5 mm (front panel dimensions)
- Bus system: Without bus system
- Permissible humidity (storage/transport): 10 % ... 95% (no condensation)
- Note for application: Only for industrial use
- Mounting dimensions
- Shock DIN EN 60068-2-27
- Supply: Supply
- Power consumption typical 0.17 A.
- Width / Height / Installation depth: 111 mm / 80 mm / 31.5 mm (Installation cut-out)
- Interfaces: 2x COM (RS-232/422/485);1x USB 2.0, type A;1x USB 2.0, type B.
- MTBF 25000 h
- Operating system: Windows® Embedded Compact 7
- Screen resolution 480 x 272 pixels (WQVGA)
- Processor: Arm® Cortex®-A7, 528 MHz i.MX6 UL
- Data memory: EMMC, 4 GB
- SDRAM: 512 MB DDR3-RAM
- Display
- Display type 10.92 cm / 4.3" TFT
- Computer data: Computer data
- Slots: 1x SD
- Touch technology: Analog-resistive
- LED display lighting type
- Brightness: 350 cd/m² typical (adjustable)
- Colour palette: 16.7 MIO. Colours
- Reading angle left: 70.00 °
- Reading angle: Right: 70.00°
- Reading angle up: 50.00 °
- Reading angle: Bottom: 70.00 °
- Network: 1x Ethernet (10/100 MBit/s), RJ45
- User software: Visu+
- Power supply 24 V DC ±15 %
- Material front plate: Plastic
- Manufacturer part #
1050387
- Type
BTP 2043W
- Product type
Touchpanel
- Type
4.3" TFT Display
- Interfaces
2x COM (RS-232/422/485)
1x USB 2.0, type A
1x USB 2.0, type B
- Display
Yes
- Resolution
480 x 272 p
- Max. ambient temperature
50 °C
- Min. ambient temperature
0 °C
- Height
89 mm
- Length
5 mm
- Width
120 mm
IP66 (front)
IP20 (back panel)
- Content
1 pc(s)
- Dim
(L x W x H) 5 x 120 x 89 mm
- Fitting type (details)
Front mounting
- Recess depth
31.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562352 Phoenix Contact 1050387 BTP 2043W Touchpanel
User & Safety Instructions
User & Safety Instructions 3562352 Phoenix Contact 1050387 BTP 2043W Touchpanel
Description
Touch panel with 10.92 cm / 4.3" TFT display (analogue-resistive), 480 x 272 pixels (WQVGA), 16.7 MIO. Colours, Arm® Cortex®-A7, 528 MHz i.MX6 UL, 2x COM (RS-232/422/485), 1x USB 2.0, type A, 1x USB 2.0, type B, 1x Ethernet (10/100 MBit/s), RJ45, Windows® Embedded Compact 7 and user software: Visu+. (Bus system: Without)
