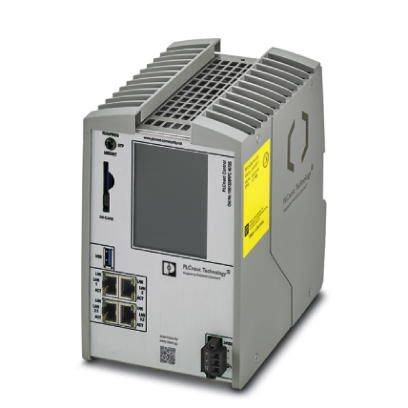

Phoenix Contact 1051328 RFC 4072S PLC controller 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): 0 °C ... 60 °C to 2000 m üNN (from 40 °C only with fan module)
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Permissible air humidity (operation): 10 % ... 95% (no condensation)
- Permissible humidity (storage/transport): 5 % ... 95% (no condensation)
- Air pressure (operating): 80 kPa ... 108 kPa (up to 3000 m üNN)
- Air pressure (storage/transport): 58 hPa ... 108 kPa (up to 4500 m üNN)
- Weight: 2850 g
- Interface: USB
- Connection type: USB type A, plug
- Transmission speed 10/100/1000 MBit/s (100 MBit/s (LAN 3.1 and LAN 3.2), 1000 MBit/s (LAN 1, LAN 2))
- Connection supply: Screw terminals, pluggable
- Typical current consumption 1 A.
- Power loss: Max. 24 W
- Number of supported subscribers: 256 max.
- Control redundancy: No.
- Engineering tool: PLCnext Engineer
- Program memory: 16 MB
- Data memory: 32 MB
- Retentive data memory: 2 MB
- Real-time clock: Integrated (battery-buffered)
- Supply voltage range: 19.2 V DC ... 30 VDC (including ripple)
- Processor Intel® Core™ i5-6300U 2x 2.4GHz (Standard)
- Product type
PLC controller
- Type
RFC 4072S
- Operating voltage
24 V DC
- Height
182 mm
- Length
173 mm
- Width
122 mm
IP20
- Dim
(L x W x H) 173 x 122 x 182 mm
- Display
Yes
- Manufacturer part #
1051328
- Max. ambient temperature
60 °C
- Min. ambient temperature
0 °C
- Real-time clock
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209053 Phoenix Contact 1051328 RFC 4072S PLC controller 24 V DC
Datasheet 2209053 Phoenix Contact 1051328 RFC 4072S PLC controller 24 V DC
User & Safety Instructions
User & Safety Instructions 2209053 Phoenix Contact 1051328 RFC 4072S PLC controller 24 V DC
Description
PLCnext Control with 4x 10/100/1000 Ethernet, PROFINET controller with integrated PROFIsafe safety control, PROFINET device, IP20 degree of protection, pluggable parameterization memory
