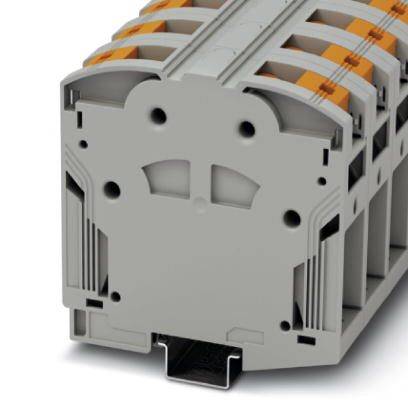

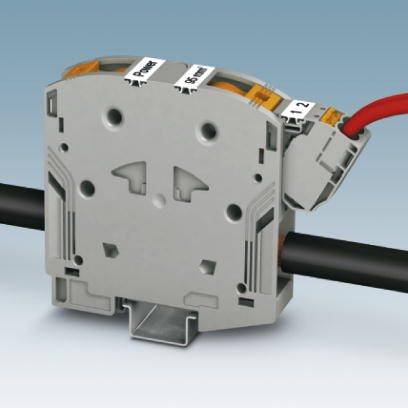

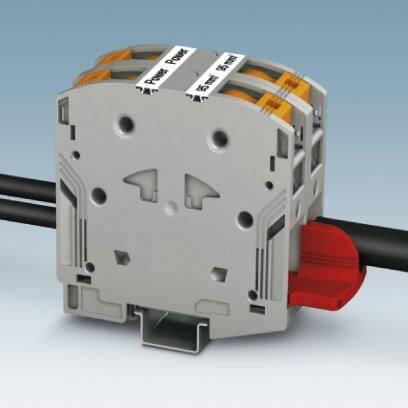

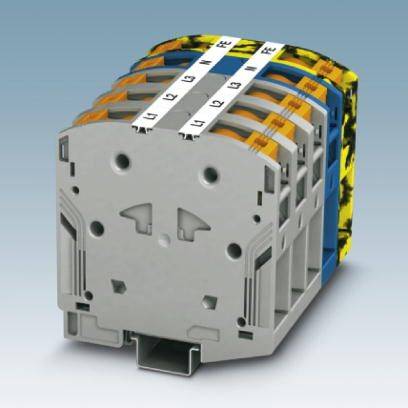

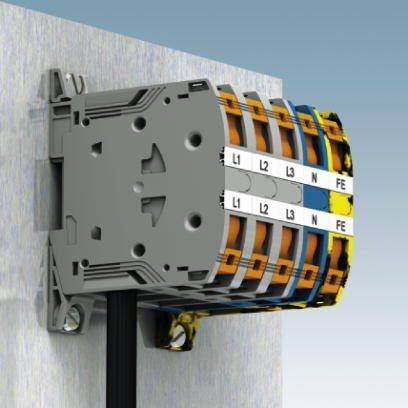

Phoenix Contact 1054722 High power terminal Plug & Clip Grey 3 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
High power terminal
Connection
Plug & Clip
Cross section (flexible) (max.)
185 mm²
Cross section (inflexible) (max.)
185 mm²
Datasheet (PDF)
Technical specifications
- Number of ports: 2
- Potential: 1
- Nominal cross-section 150 mm²
- Dimensioning surge voltage: 8 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 309 A (at 185 mm² conductor cross-section)
- Open side wall: No.
- Test specification touch protection: DIN EN 50274 (VDE 0660-514):2002-11
- Hand back safety: Guaranteed
- Target value: 15 N.
- Short time current: 18 kA
- Packaging type
Piece
- Product type
High power terminal
- Features
+ push-in spring bracket
- Connection
Plug & Clip
- Cross section (flexible) (min.)
95 mm²
- Cross section (flexible) (max.)
185 mm²
- Cross section (inflexible) (min.)
95 mm²
- Cross section (inflexible) (max.)
185 mm²
- No. of rows
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
309 A
- Nominal current - rounded value
309 A
- Nominal voltage
1000 V AC
1500 V DC
- Stripping length (max.)
40 mm
- Manufacturer part #
1054722
- Content
3 pc(s)
- Type
PTPOWER 185
- Dim
(L x W) 116.4 mm x 31 mm
- Width
31 mm
- Length
116.4 mm
- Rated surge voltage
8 kV
- Contamination level
3
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209066 Phoenix Contact 1054722 High power terminal Plug & Clip Grey 3 pc(s) Piece
Datasheet 2209066 Phoenix Contact 1054722 High power terminal Plug & Clip Grey 3 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2209066 Phoenix Contact 1054722 High power terminal Plug & Clip Grey 3 pc(s) Piece
Description

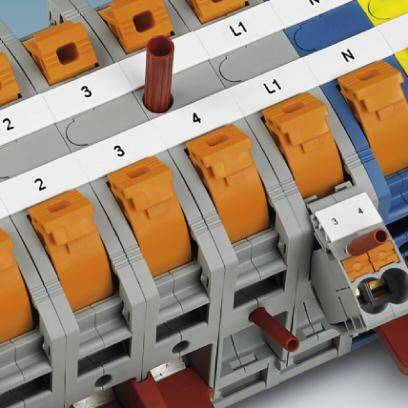

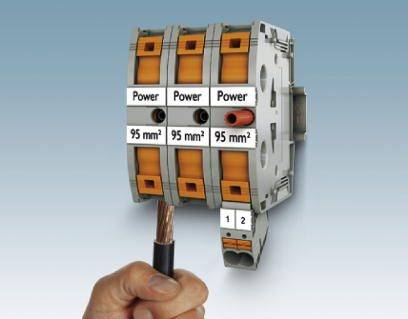

In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design enables wiring in the smallest possible space. Apart from the use of the existing test probe, you can connect terminal clips, which each offer the additional attachment of two test leads.
