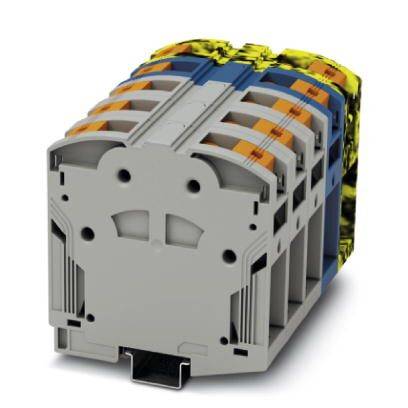

Phoenix Contact 1054731 High power terminal Plug & Clip Grey, Blue, Black, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
High power terminal
Connection
Plug & Clip
Cross section (flexible) (max.)
185 mm²
Cross section (inflexible) (max.)
185 mm²
Nominal current - rounded value
309 A
Datasheet (PDF)
Highlights & Details
High-current terminal
- PTPOWER 185-3L/N/FE
Technical specifications
- Number of connections: 10
- Potential: 5
- Nominal cross-section 150 mm²
- Dimensioning surge voltage: 8 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 309 A (at 150 mm² conductor cross-section)
- Open side wall: No.
- Pitch measured: 31 mm
- Product type
High power terminal
- Connection
Plug & Clip
- Cross section (flexible) (min.)
95 mm²
- Cross section (flexible) (max.)
185 mm²
- Cross section (inflexible) (min.)
95 mm²
- Cross section (inflexible) (max.)
185 mm²
- No. of rows
1
- Number of pins
5
- Factory colour
Grey
Blue
Black
Yellow
- Nominal current
309 A
- Nominal current - rounded value
309 A
- Nominal voltage
1500 V
- Stripping length (max.)
40 mm
- Manufacturer part #
1054731
- Content
1 pc(s)
- Type
PTPOWER 185-3L/N/FE
- Dim
(L x W) 116.4 mm x 155 mm
- Width
155 mm
- Length
116.4 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209068 Phoenix Contact 1054731 High power terminal Plug & Clip Grey, Blue, Black, Yellow 1 pc(s)
Datasheet 2209068 Phoenix Contact 1054731 High power terminal Plug & Clip Grey, Blue, Black, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2209068 Phoenix Contact 1054731 High power terminal Plug & Clip Grey, Blue, Black, Yellow 1 pc(s)
Description
In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design enables wiring in the smallest possible space. Apart from the use of the existing test probe, you can connect terminal clips, which each offer the additional attachment of two test leads.
