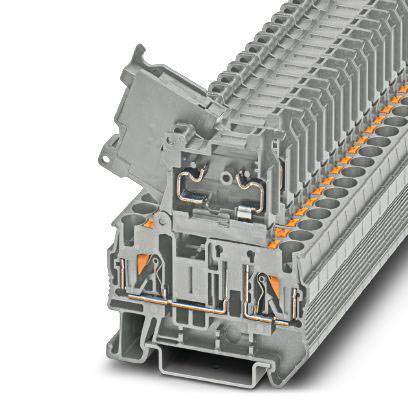

Phoenix Contact 1058940 Fuse serial terminal Push-in connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse serial terminal
Connection
Push-in connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
6.3 A
Datasheet (PDF)
Technical specifications
- Number of ports: 2
- Nominal cross-section: 4 mm²
- Dimensioning surge voltage: 6 kV
- Over voltage category III
- Insulating material group: I
- Maximum load current: 6.3 A (at 6 mm² conductor cross-section rigid)
- Open side wall: Yes
- Product type
Fuse serial terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- No. of rows
1
- Factory colour
Grey
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
500 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
1058940
- Content
50 pc(s)
- Type
PT 4-HESI (5X20) GY/GY
- Dim
(L x W) 56 mm x 6.2 mm
- Width
6.2 mm
- Length
56 mm
- Contamination level
3
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209079 Phoenix Contact 1058940 Fuse serial terminal Push-in connector Grey 50 pc(s)
Datasheet 2209079 Phoenix Contact 1058940 Fuse serial terminal Push-in connector Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2209079 Phoenix Contact 1058940 Fuse serial terminal Push-in connector Grey 50 pc(s)
Description
In addition to the system features of the CLIPLINE complete system, the push-in connection terminals are characterized by simple and tool-free wiring of conductors with ferrules or rigid conductors. The compact design and the front connection enable wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
