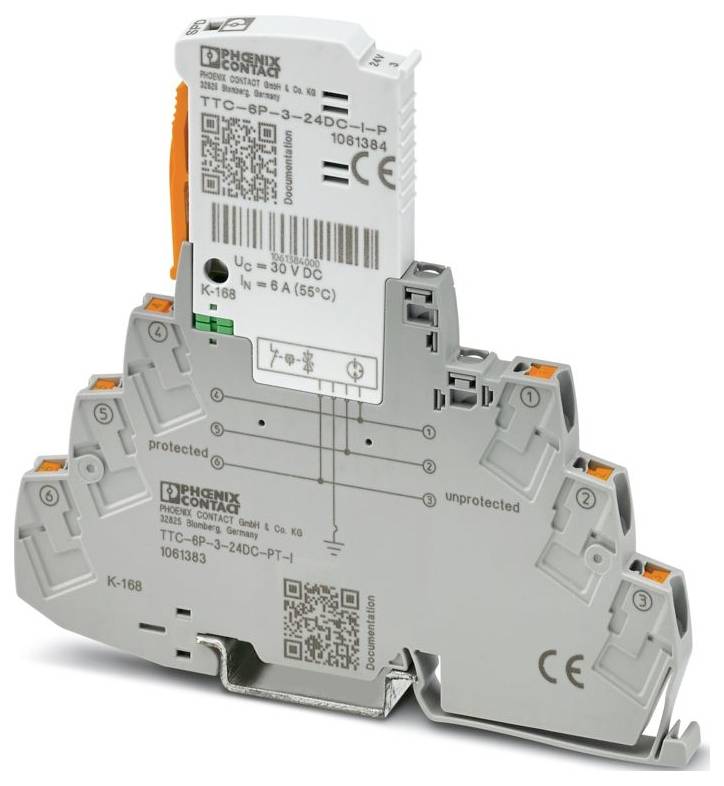

Phoenix Contact 1061383 TTC-6P-3-24DC-PT-I Surge protection device 10 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: TERMITRAB complete
- IEC TEST CLASS C1;C2;C3;D1
- Model: Two-part rail module can be plugged
- Message Surge Protection Faulty: Optical
- NOMINAL VOLTAGE 24 V DC
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 4 mm².
- Wire cross-section AWG: 24 ... 12
- Width 6.2 mm +0.1 mm
- Height: 1.8" (105.8 mm)
- Depth: 100 mm (including mounting rail 7.5 mm)
- Flammability class according to UL 94 V-0
- Material: housing: PBT
- Mechanical Data: Mechanical Data
- Open side wall: No.
- Direction of action: Line & Line signal Ground/Shield & optional signal Ground/Shield-Earth Ground
- Maximum continuous voltage UC: 30 V DC;21 V AC
- Rated current 5 A (55 °C)
- Operating current IC at UC ≤ 5 µA
- Earth current IPE ≤ 1 µA
- Total leakage surge current ITtotal (8/20) µs 10 kA
- Protection level Up (wire): ≤ 68 V (C1 - 1 kV / 500 A);≤ 50 V (C3 - 100 A);≤ 50 V (C3 - 25 A)
- Protection level Up (wire-earth): ≤ 700 V (C1 - 1 kV / 500 A);≤ 900 V (C2 - 10 kV / 5 kA)
- Capacity (wire-wire): Typ. 30 pF
- Capacity (wire-earth): Typ. 30 pF
- Resistance per path: < 0.1 Ω
- Required maximum backup fuse: 5 A (F)
- Surge current (Wire-Earth) C1 - 1 kV / 500 A; C2 - 10 kV / 5 kA; D1 - 500 A
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 4000 m (amsl)
- Standards/regulations: EN IEC 60079-7
- Note:2015 + A1:2018
- Mounting type: Mounting rail: TH 35 - 7.5 mm
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- Insulating material PBT
- Permissible air humidity (operation): 5 % ... 95 %.
- Nominal impulse surge current In (8/20) µs (wire-ground): 5 kA
- Impulse leakage surge current Iimp (10/350) µs (wire-ground) 0.5 kA
- Response time TA (wire-earth): ≤ 100 ns
- Colour (plug): Light gray (RAL 7035)
- Colour (base element): Grey (RAL 7042)
- Impulse reset time (wire-earth): ≤ 500 ms
- EN 61643-21, EN 61643-21
- Nominal suppression current In (8/20) µs (wire-wire) 0.5 kA
- Response time TA (wire-wire): ≤ 1 ns
- AE insertion loss, sym.: Typ. 0.3 dB (≤ 12 MHz / 150 Ω)
- Cut-off frequency FG (3 dB), balanced In the 150 Ω system: Typ. 60 MHz
- Surge current resistance (wire) C1 - 1 kV / 500 A; C3 - 100 A
- Impulse reset time (wire): ≤ 30 ms
- Conformity/Approvals: Conformity/approvals
- UL, USA / Canada: Class I, div. 2, GROUPS A, B, C, D T4A
- Maximum input current 5 A (55 °C)
- Maximum input voltage 30 V DC
- Product type
Surge protection device
- Leakage current
10 kA
- Type
Mounting rail module can be plugged in two parts
IP20
- Manufacturer part #
1061383
- Dim
(W x H x D) 6.2 x 105.8 x 100 mm
- Width
6.2 mm
- Height
105.8 mm
- Depth
100 mm
- Ex Zoning
2
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562663 Phoenix Contact 1061383 TTC-6P-3-24DC-PT-I Surge protection device 10 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3562663 Phoenix Contact 1061383 TTC-6P-3-24DC-PT-I Surge protection device 10 kA 1 pc(s)
Description
Overvoltage protection, consisting of safety plug and base element, with integrated status display for a 3-wire floating-ground signal circuit operated with Hohem nominal current, EX e-approval for zone 2, HART-enabled. Can be used in safety-related circuits up to SIL 3.
