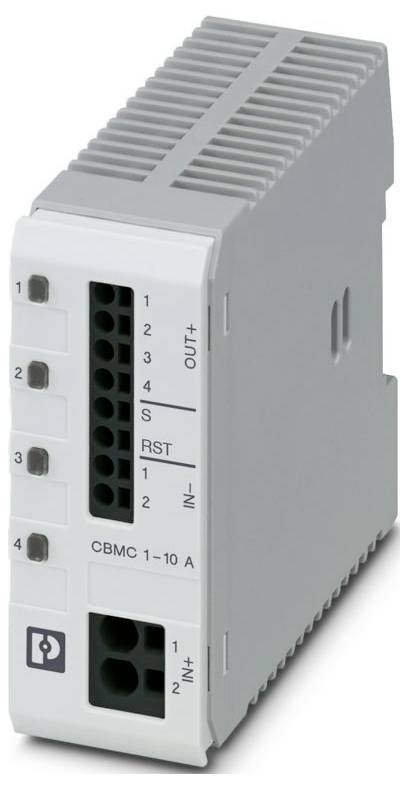

Phoenix Contact 1065729 CBMC E4 24DC/1-10A S-R Eelectronic RCCB 1 pc(s)
EAN:
Part number:
Item no:
Product type
Eelectronic RCCB
Type
Support rail module one piece
Connection
Push-in spring-loaded terminal
IP rating
IP20
Length
98 mm
Datasheet (PDF)
Technical specifications
- Family: CBMC
- Designed: Single piece mounting rail module
- Number of poles: 1
- Push-in connection
- Conductor cross-section rigid: 0.2 mm² ... 10 mm²
- Wire cross-section AWG: 24 ... 8
- Width 36 mm
- Height: 90 mm
- Depth: 98 mm (including mounting rail 7.5 mm)
- Colour: Light gray (RAL 7035)
- Flammability class according to UL 94 V-0
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Altitude: ≤ 3000 m to 52 °C (amsl);≤ 4000 m to 46 °C (amsl)
- Standards/regulations EN 50178
- Note: Equipment of power plants with electronic equipment
- Mounting type: Rail: 35 mm
- Insulation properties: Insulation properties
- Pollution level: 2
- Shock (Operation): 30g (IEC 60068-2-27, Test EA)
- Vibration (operation): 10 Hz ... 57.6 Hz (amplitude ±0.35 mm | according to IEC 60068-2-6, test FC);57.6 Hz ... 150 Hz (Acceleration 5g | according to IEC 60068-2-6, Test FC)
- Operating voltage: 18 V DC ... 30 V DC
- Stripped length: 15 mm
- General: General
- Voltage strength: Max. 35 V DC (load circuit)
- Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 4 mm².
- Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 6 mm².
- Identification: ISA S71.04.2013 G3 Harsh Group A
- PC;PA 6.6;PA 6.3T;POM
- Fuse: Electronic
- Power loss: Type 0.6 W (at idle);< 9 W (at rated)
- Rated voltage 24 V DC
- Protection class III
- Output voltage: 24 V/DC
- Input voltage range: 7 V DC ... 30 V DC (reset with falling edge)
- Current consumption: Type 0.4 mA at 24 V
- Efficiency level > 99 %
- Regenerative resistance: Max. 35 V DC
- MTBF (IEC 61709, SN 29500): 8403361 h (at 25 °C with 21 % load);3067484 h (at 40 °C with 34.25 % load);534188 h (at 35 °C with 100 % load)
- Voltage: < 5 Vdc (low state);> 8 Vdc (high state)
- Pollutant test: Pollutant gas test
- Number of channels: 4
- Switch-on delay 0.1 s (per output channel)
- UL-approval: UL-approval
- Output current: Max. 0.04 A (short circuit-proof)
- Contact design: Without galvanic separation
- Dimensioning surge voltage: 0.5 kV
- Load circuit: Load circuit
- Trigger type E (electronic)
- Necessary backup: Only required if Imax of the supply > short-circuit switching capacity. Integrated fail-safe element.
- Quiescent current I0: Type 25 mA
- Temperature derating: 24 A DC (at 60 °C);28 A DC (at 54 °C) ;32 A DC (at 47 °C) ;36 A DC (at 41 °C);40 A DC (at 35 °C)
- 15 A DC (per output channel) fail-safe element
- Switch-off time: ≤ 10 ms (short circuit > 2.0 x IN);1 s (1.2 ... 2.0 X IN)
- Low-voltage cut-off: ≥ 17.8 V DC (active); ≤ 18.8 V DC (inactive)
- Max. Capacity load: 45000 µF (depending on current setting and available short circuit current)
- Reset
- Pulse length ≥ 50 ms (high);≥ 50 ms (low)
- Status output: Status output
- Moisture testing 96 h, 95 % RH, 40 °C.
- Rated current IN: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 A DC (adjustable per output channel)
- Short circuit switching capacity 300 A.
- Rated current (preset): 4 A.
- Tolerance I ± 15%
- Overvoltage cut-off: ≥ 30.5 V DC (active);≤ 29.5 V DC (inactive)
- Channel LED off: Off (channel off)
- Channel LED yellow: Lit (channel on, channel utilization > 80 %);flashing (programming mode active)
- Channel LED green: Lights up (channel on)
- Red channel LED: Lights up (channel switched off, over or undervoltage active); lights up temporarily (channel switched off, cool -down phase 5 s, overload or short-circuit triggering); flashes (channel switched off, ready to switch on again, overload or short-circuit triggering); flashes twice (channel switched off, device total current limit 40 A)
- Module initialization time:1.6 s
- Waiting time after switch-off of a channel: 5 s (in case of overload / short circuit)
- Main circuit IN+: Main circuit IN+
- Main circuit IN-: Main circuit IN-
- OUT+ main circuit: OUT+ main circuit
- Product type
Eelectronic RCCB
- Type
Support rail module one piece
- Connection
Push-in spring-loaded terminal
IP20
- Length
98 mm
- Width
36 mm
- Height
90 mm
- Compatible with (details)
35 mm mounting rail
- Content
1 pc(s)
- Type
CBMC E4 24DC/1-10A S-R
- Dim
(L x W x H) 98 x 36 x 90 mm
- Depth
98 mm
- Operating voltage
30 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562585 Phoenix Contact 1065729 CBMC E4 24DC/1-10A S-R Eelectronic RCCB 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3562585 Phoenix Contact 1065729 CBMC E4 24DC/1-10A S-R Eelectronic RCCB 1 pc(s)
Description
Multi-channel, electronic device protection switch to protect four consumers at 24 V DC with overload and short circuit. With status output, reset input and electronic locking of the set nominal currents. For installation on DIN mounting rails.
