Buy Phoenix Contact 1066704 DC/DC converter 12 V DC 2.5 A Content 1 pc(s)

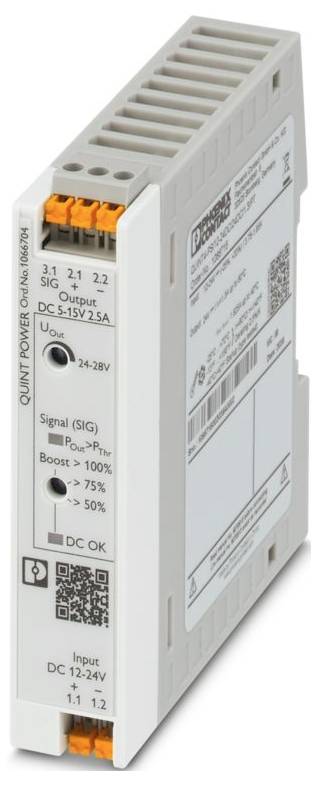

A white and gray electronic module labeled 'QUINT POWER', indicating input and output specifications with port connections on the sides.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Product family: QUINT Power
Push-in connection
Width 22.5 mm
Height: 106 mm
Depth: 90 mm
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -25 °C ... 70 °C (> 60 °C DERATING 2.5 %/K)
Ambient temperature (storage/transport): -40 °C ... 85 °C
Standards/regulations EN 61000-4-10
Mounting type: Rail mounting
Insulation properties: Insulation properties
Overvoltage category: Overvoltage category
Pollution level: 2
Vibration (operation): < 15 Hz, amplitude ±2.5 mm | 15 Hz ... 100 Hz: 2.3 g 90 min. (According to IEC 60068-2-6)
Stripped length: 10 mm
Frequency range: 50 Hz ... 60 Hz
Identification: DNV
Protection class: II
Frequency:50 Hz;100 Hz;150 Hz;300 Hz
Rated input voltage range: 12 V DC ... 24 V DC
Input voltage range: 12 V DC ... 24 V DC -25 % ... +33 % (SELV)
Wide-range input: Yes
Voltage strength max. 35 V DC (60 s)
Switch-on current impulse: Typical 1.5 A
Switch-on current impulse integral (I2t): Typ. 0.05 A2S
Switch-on current surge limitation: Typical 1.5 A
Mains failure bridging time: Typ. 20 ms (24 V DC)
Current consumption: Type 3.55 A (12 V DC);TYPE. 1.75 A (24 V DC)
Switch-on time < 1 seconds
15 A (fast, internal) input fuse
Selection of suitable fuse for the input protection: 10 A ... 16 A (characteristic B, C, D, K or comparable)
Efficiency: Type. 92.2 % (12 V DC)
Output characteristic U/I Advanced
Rated output voltage 12 V DC
Setting range of output voltage (USet): 5 V DC ... 15 V DC (> 12 V DC, CONSTANT POWER)
Nominal output current (IN): 2.5 A.
Static boost (ISTAT.Boost): 3.125 A (≤ 40 °C)
Dynamic Boost (IDyn.Boost): 5 A (≤ 60 °C (4.9 s))
Short-circuit-proof: Yes
Idle: Yes
Output power (PN) 30 W
Output power (PStat. Boost) 37.5 W
Output power (PDyn. Boost) 60 W
Regenerative resistance ≤ 25 V DC
Protection against overvoltage at output (OVP): ≤ 18 V DC
Remaining ripple < 20 mV
Control deviation static: < 1 % (load change static 10 % ... 90 %
Control deviation dynamic: < 1 % (load change static 10 % ... 90 %
Control deviation Input voltage change: < 1 % (load change static 10 % ... 90 %
Rise time: < 1 s (UOUT (10 % ... 90 %)
Series switching capability: Yes
No-load operation Power Maximum < 0.5 W
Power loss Nominal load maximum: < 2.7 W
Parallel switching capability: Yes, for redundancy and power increase
Safety (secondary side): Electronic
Input: 1 kV (test efficiency 3 - symmetric);2 kV (test efficiency 3 - asymmetric)
Position: 3.x
Wire connection: Conductor connection
rigid: 0.2 mm² ... 2.5 mm².
flexible: 0.2 mm² ... 2.5 mm².
Flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 2.5 mm².
Flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 2.5 mm².
Output:1 kV (test efficiency 3 - symmetric);2 kV (test efficiency 3 - asymmetric)
Signal:1 kV (test efficiency 4 - symmetric);2 kV (test efficiency 3 - asymmetric)
LED signaling: LED signaling
Signal threshold: > PThr (LED is yellow, output power > PThr, depending on the position of the rotary selection switch);> 0.9 x USSET (LED is green);< 0.9 x USSET (LED flashes green)
Default: 12 V DC;22 mA;12 V DC for Uout > 0.9 x USSet
Digital 0 V DC;12 V DC;22 mA
Number of phases: 1.00
Insulation voltage input/output: 2.6 kV DC (type test);1.2 kV DC (routine test)
Switching frequency: 4.00 kHz ... 70.00 kHz (auxiliary converter stage);70.00 kHz ... 150.00 kHz (main conversion stage)
MTBF (IEC 61709, SN 29500): > 2804000 h (25 °C);> 1590000 h (40 °C);> 687000 h (60 °C)
Service life (electrolytic capacitors): Life expectancy (electrolytic capacitors)
Current: 2.5 A
Temperature 30 °C.
Time: 50 ms
Additional text: Testing degree of accuracy 2
Article dimensions: Article dimensions
Mounting dimensions
Right/left (active) mounting distance: 15 mm / 15 mm (pout ≥50 %)
Right/left mounting distance (passive) 5 mm / 5 mm (pout ≥50 %)
Top/bottom (active) mounting distance: 30 mm / 30 mm (pout ≥50 %)
Top/bottom (passive) mounting distance: 30 mm / 30 mm (pout ≥50 %)
Mounting instructions: Modular: PN ≥50 %, horizontal 5 mm, next to active components 15 mm, vertical 50 mm
Modular: PN <50%, horizontal 0 mm, vertical top 40 mm, vertical bottom 20 mm
Protective coating: No.
Flammability class to UL 94 (housing / terminals): V0
Housing material: Plastic
Operating height: ≤ 5000 m (> 2000 m, observe derating)
Climate class 3K22 (according to EN 60721-3-3)
Max. ass. Humidity (operating): ≤ 95% (at 25°C, no condensation)
Shock: 18 ms, 30 g, per direction of room (according to IEC 60068-2-27)
Temp code: T4 (-25 ... +70 °C | > 60 °C, DERATING 2.5 %/K)
EN 61010-1: II (≤ 5000 m)
Standard name: Network variation/undervoltage
Safety Measuring, control, control and laboratory equipment: Safety of measuring, control, control and laboratory equipment
Low voltage: Protective extra-low voltage
Mains voltage dips: Mains voltage dips
UL
CSA
SIQ: SIQ
Shipbuilding: Shipbuilding
Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
EMC requirements for emission of interference EN 61000-6-3;EN 61000-6-4
EMC requirements for immunity EN 61000-6-1;EN 61000-6-2
EMC requirements for power station: EN 61850-3;EN 61000-6-5
Line-guided interference emission: Line-guided interference emission
Interference radiation: Interference radiation
DNV GL conductive emission of interference: DNV GL conductive emission of interference
DNV: Class B
DNV GL interference radiation: DNV GL interference radiation
Discharge of static electricity: Discharge of static electricity
Contact discharge 8 kV (test efficiency 4)
15 kV (test efficiency 4)
Note: Criterion B
Electromagnetic HF-field: Electromagnetic HF-field
Test field strength 1000 A/m
Fast Transients (Burst): Fast Transients (Burst)
Surge voltage load (SURGE): Surge current load (SURGE)
Conducted interference: Conducted interference
Input/output/signal: Asymmetrical
Voltage: 1 kV
Magnetic field with energy-technical frequency: Magnetic field with energy-technical frequency
Voltage dips: Voltage dips
Voltage dip 0%
Pulse-shaped magnetic field: Pulse-shaped magnetic field
Asymmetric conductive interference variables: Asymmetric conductive interference variables
100 kHz testing level 1
Test level 2 1 MHz
1.5 kHz 15 kHz (test level 3 3) test level
15 kHz 150 kHz (test level 4 3) test level
Test level 5: 16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (test efficiency 3)
Test level 6: 0 Hz 16.7 Hz 50 Hz 60 Hz (test efficiency 3)
Alternating portion of DC voltage: Alternating share of DC voltage
Switching percentage: 10% (UN)
Dampened oscillating shaft: Dampened vibrating shaft
Input, output (test level 1): 1 MHz (test level 2 - balanced)
Input, output (test level 2): 1 MHz (test level 2 - unbalanced)
Signals (test level 1) 1 MHz (test level 2 - balanced)
Signals (test level 2): 1 MHz (test level 2 - unbalanced)
Dampened oscillating magnetic field: Damped oscillating magnetic field
Criteria: Criteria
Criterion A: Normal operating behavior within the defined limits.
Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
Criterion C: Intermittent impairment of the operating behavior that the device itself corrects or can be restored by operating the controls.
Surrounding temperature (startup type tested): -40 °C
AWG: 24 ... 14
Derating: > 60 °C (2.5 %/K of out nom.)
Number of periods: 0.5 / 1 / 5 / 50 periods
Installation distance right/left (active, passive): 0 mm / 0 mm (pout ≤50 %)
Top/bottom mounting distance (active, passive): 30 mm / 30 mm (pout ≤50 %)
Design of the casing: Polycarbonate (PC), UL 94 V0
Signal output can be configured: Signal output
