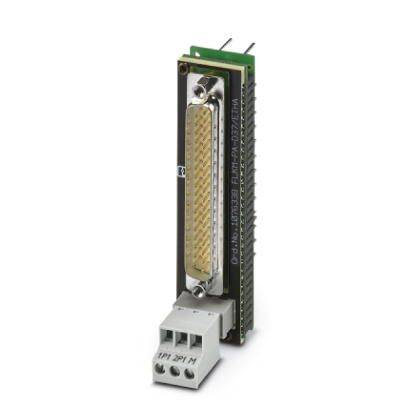

Phoenix Contact 1076338 FLKM-PA-D37/ETHA PLC adapter
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Ambient temperature (operation): -20 °C ... 70 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Connection type: Plug connection
- Designation Connection: Control level
- Conductor cross-section rigid: 0.34 mm² ... 2.5 mm²
- Conductor cross-section AWG: 24 ... 12
- Rated insulation voltage 63 V.
- Rated surge voltage 0.6 kV (functional insulation)
- Schutzart1: ≥ IP54 (installation location)
- Max. Permissible operating voltage 25 V AC
- Number of ports: 1
- Number of pins: 36
- Pollution level: 2
- Overvoltage category II
- CONTROLLER: SIEMENS ET200SP HA
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm²
- All mounting positions permitted
- Max. Permissible current: 1 A (per path)
- Product type
PLC adapter
- Type
FLKM-PA-D37/ETHA
- Height
89 mm
- Width
22 mm
IP00
- Dim
(W x H) 22 mm x 89 mm
- Manufacturer part #
1076338
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209095 Phoenix Contact 1076338 FLKM-PA-D37/ETHA PLC adapter
Datasheet 2209095 Phoenix Contact 1076338 FLKM-PA-D37/ETHA PLC adapter
User & Safety Instructions
User & Safety Instructions 2209095 Phoenix Contact 1076338 FLKM-PA-D37/ETHA PLC adapter
Description

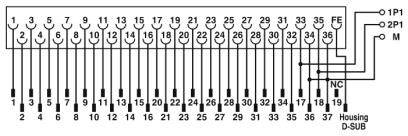

Varioface front adapter for Siemens SIMATIC® ET 200SP HA, with a 37-pin D-SUB pin strip for 24 V DC digital and analogue I/O modules, can be connected to a maximum of 32 channels
