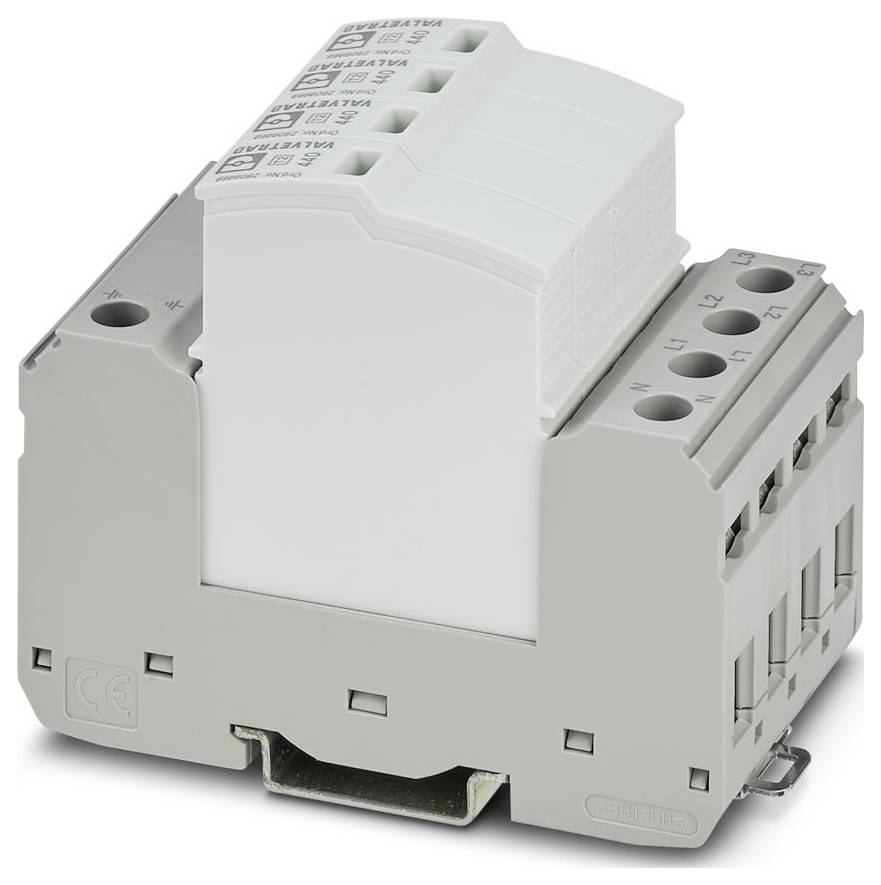

Phoenix Contact 1076468 VAL-SEC-T2-4+0-440-FM Surge arrester 40 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Family: SEC Family
- IEC TEST CLASS II;T2
- Model: Two-part rail module can be plugged
- Number of poles: 3
- Message Surge protection defective: Optical, telecommunication contact
- NOMINAL VOLTAGE UN:400/690 V AC (TN-S);400 V AC (IT)
- Display / distance message: Display / remote message
- Switching function: Changer
- Connection type: Plug/screw connection via COMBICON
- Screw thread M2
- Tightening torque 0.25 Nm
- Conductor cross-section flexible: 0.14 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.14 mm² ... 1.5 mm².
- Wire cross-section AWG: 28 ... 16
- Width 49.2 mm
- Height: 97.9 mm
- Depth: 74.5 mm (including mounting rail 7.5 mm)
- Division unit 2.7 TE
- Flammability class according to UL 94 V-0
- Material housing: PA 6.6-FR 20 % GF;PBT-FR
- DIRECTION OF ACTION 3L-N/PE
- Highest continuous voltage UC 440 V AC
- Nominal impulse surge current In (8/20) µs: 20 kA
- Response time TA ≤ 25 ns
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 80 °C
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Altitude: ≤ 2000 m (amsl)
- Standards/regulations EN 61643-11
- Note: 2012
- Mounting type: Rail: 35 mm
- EN type T2
- POWER SUPPLY SYSTEM IEC TN-S;IT
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- Nominal frequency FN 50 Hz (60 Hz)
- CTI value of material: 600
- INSULATION MATERIAL PA6.6-FR 20% GF;PBT-FR
- Material group: I
- PROTECTION PATHS L-N;L-PE;N-PE
- Standby power consumption PC: ≤ 720 MVA
- Maximum Surge current Imax (8/20) µs 40 kA
- TOV behavior at UT: 581 V AC (5 s / resistance mode);762 V AC (120 min / safe failure mode)
- Permissible air humidity (operation): 5 % ... 95 %.
- Shock (operation): 30g (half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
- Naming of connection: Remote fault signaling contact
- Operating voltage: 5 V AC ... 250 V AC;125 V DC (200 MA DC)
- Operating current: 5 mA AC ... 1 A AC;1 A DC (30 V DC)
- Stripped length: 7 mm
- Remote defect signaling contact: Defect signaling contact
- Rated current IL: 40 A (Bi-connect M4 fork cable lug 6 mm²);63 A (TWIN cable end sleeve 2x 10 mm²)
- Short circuit protection ISCCR: 25 kA (with backup fuse up to 315 A gG);50 kA (with backup fuse up to 200 A gG)
- Protection level Up (L-N): ≤ 4 kV
- Protection level Up (L-PE): ≤ 1.9 kV
- Protection level Up (N-PE): ≤ 1.9 kV
- Residual voltage Ures (L-N):≤ 4 kV (in); ≤ 3.5 kV (at 10 kA);≤ 3.2 kV (at 5 kA);≤ 3.1 kV (at 4 kA); ≤ 2.85 kV (at 2 kA)
- Residual voltage Ures (L-PE):≤ 1.9 kV (in); ≤ 1.65 kV (at 10 kA);≤ 1.5 kV (at 5 kA);≤ 1.45 kV (at 4 kA); ≤ 1.35 kV (at 2 kA)
- Residual voltage Ures (N-PE):≤ 1.9 kV (in); ≤ 1.65 kV (at 10 kA);≤ 1.5 kV (at 5 kA);≤ 1.45 kV (at 4 kA); ≤ 1.35 kV (at 2 kA)
- Maximum pre-fuse for V-passage wiring: 40 A (gG / Biconnect M4 fork cable lug 6 mm²);63 A (gG / TWIN cable end sleeve 2x 10 mm²)
- Maximum fusing for stub cable wiring: 315 A (gG)
- General: General
- EN 61643-11, EN 61643-11
- Colour (plug): Light gray (RAL 7035)
- Colour (base element): Grey (RAL 7042)
- Product type
Surge arrester
- Leakage current
40 kA
- Type
Mounting rail module can be plugged in two parts
IP20
- Manufacturer part #
1076468
- Type
2
- Dim
(W x H x D) 49.2 x 97.9 x 74.5 mm
- Width
49.2 mm
- Height
97.9 mm
- Depth
74.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562952 Phoenix Contact 1076468 VAL-SEC-T2-4+0-440-FM Surge arrester 40 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3562952 Phoenix Contact 1076468 VAL-SEC-T2-4+0-440-FM Surge arrester 40 kA 1 pc(s)
Description
Pluggable surge arrester, according to Type 2 / Class II, for 3-phase power supply networks with separate N and PE (5-conductor system: L1, L2, L3, N, PE), with telecommunication contact.
