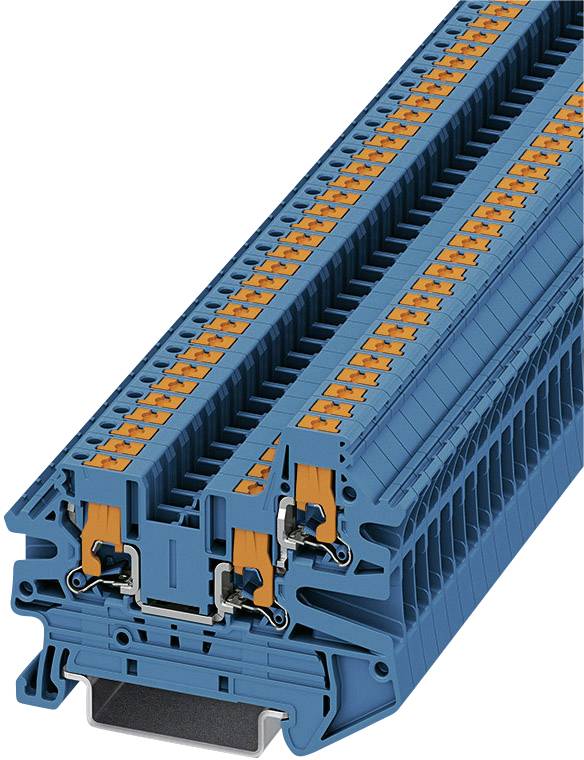

Phoenix Contact 1078971 Continuity 5.2 mm Push-in connector Blue 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
4.00 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Technical specifications
- Product type
Continuity
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4.00 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
1078971
- Content
50 pc(s)
- Type
PTV 2,5-TWIN BU
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2138856 Phoenix Contact 1078971 Continuity 5.2 mm Push-in connector Blue 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2138856 Phoenix Contact 1078971 Continuity 5.2 mm Push-in connector Blue 50 pc(s)
Description
Clear wiring through lateral conductor feed. The push-in terminals are characterized by the system features of the CLIPLINE complete system. The compact design enables wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
