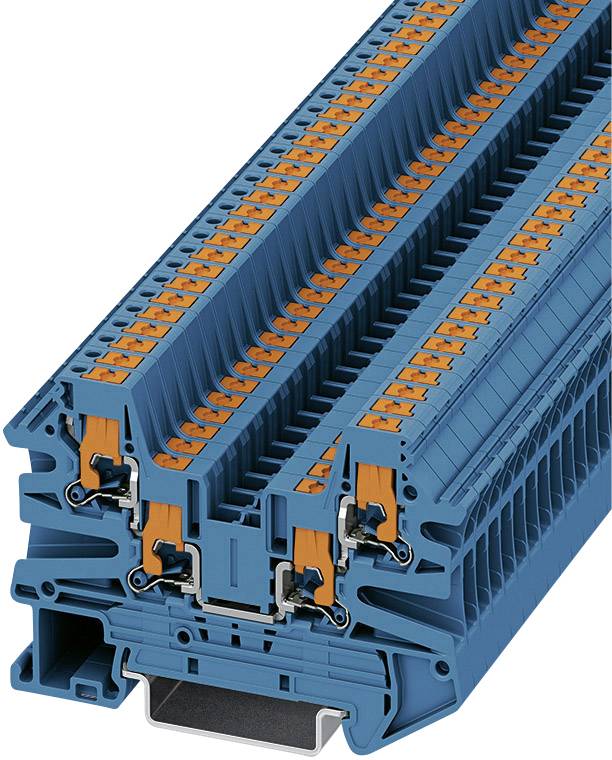

Phoenix Contact 1079006 Serial terminal 5.2 mm Push-in connector Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial terminal
Connection
Push-in connector
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
4.00 mm²
Datasheet (PDF)
Highlights & Details
Continuity
- PTV 2,5-QUATTRO BU
Technical specifications
- Packaging type
Piece
- Product type
Serial terminal
- Features
+ push-in spring bracket
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4.00 mm²
- AWG (min.)
26
- AWG max.
12
- Clamp width
5.2 mm
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
1079006
- Content
50 pc(s)
- Type
PTV 2,5-QUATTRO BU
- Width
5.2 mm
- Connector colour
Blue
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2138855 Phoenix Contact 1079006 Serial terminal 5.2 mm Push-in connector Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2138855 Phoenix Contact 1079006 Serial terminal 5.2 mm Push-in connector Blue 50 pc(s) Piece
Description
Clear wiring through lateral conductor feed. The push-in terminals are characterized by the system features of the CLIPLINE complete system. The compact design enables wiring in the smallest possible space. In addition to the test option in the double function slot, an additional test tap is available for all terminals.
