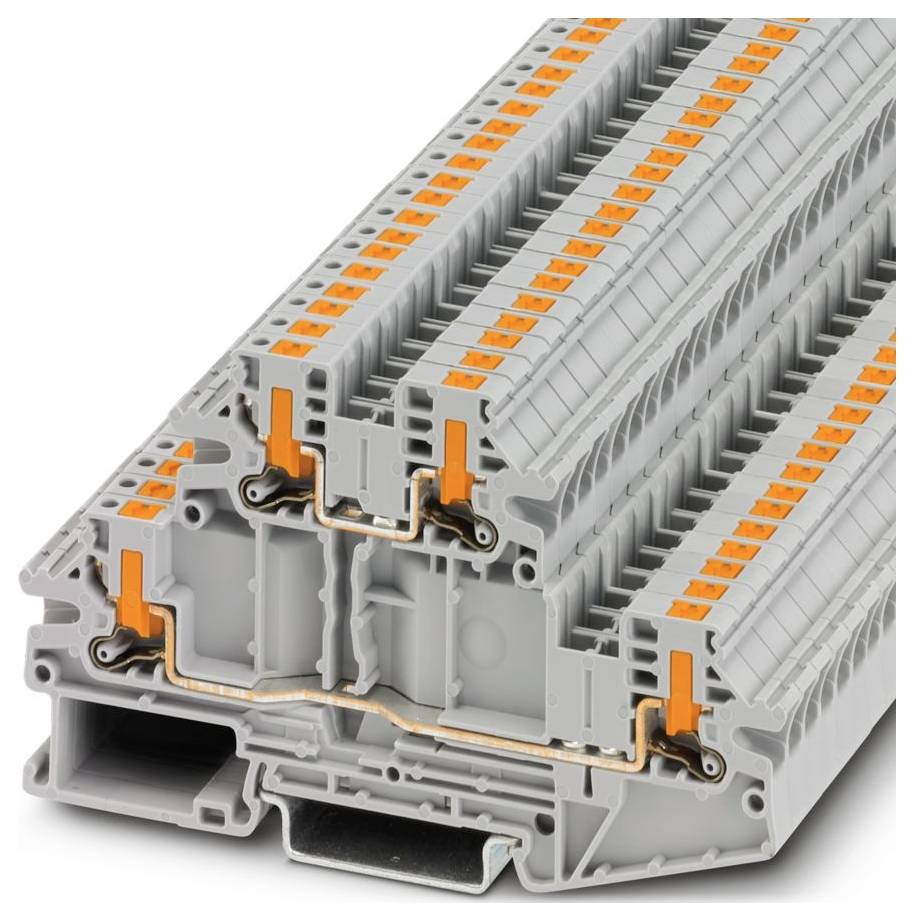

Phoenix Contact 1079073 Dual port terminal Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Dual port terminal
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
22 A
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
Two-level terminal block
- PTTBV 2,5
Technical specifications
- Cover plate required: Yes
- Suitable for single wire cross sections of 0.14-4 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.14 to 0.14 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.14-4 mm²
- Number of floors: 2
- Number of clamping points per level: 2
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Rated current In:22 A.
- Flammability class of insulation material according to UL94: V0
- Floors internally bridged: No.
- Suitable for conducting material: Aluminium/copper
- Mounting type: Top hat rail TH35
- Material of the insulating body: Other
- Product type
Dual port terminal
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
2
- Factory colour
Grey
- Nominal current
22 A
- Nominal current - rounded value
22 A
- Nominal voltage
800 V
- Manufacturer part #
1079073
- Content
50 pc(s)
- Type
PTTBV 2,5
- Dim
(W x H x D) 5.2 x 99.5 x 56 mm
- Width
5.2 mm
- Height
99.5 mm
- Flammability rating
V0
- Depth
56 mm
- Rated voltage
800 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563241 Phoenix Contact 1079073 Dual port terminal Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3563241 Phoenix Contact 1079073 Dual port terminal Grey 50 pc(s)
Description
Double level terminal, rated voltage 800 V, rated current 22 A, type of connection: Push-in connection, 1. And 2. Floor, rated cross-section: 2.5 mm², cross-section: 0.14 mm² - 4 mm², mounting type: NS 35 /7.5, NS 35/15, color: Gray
