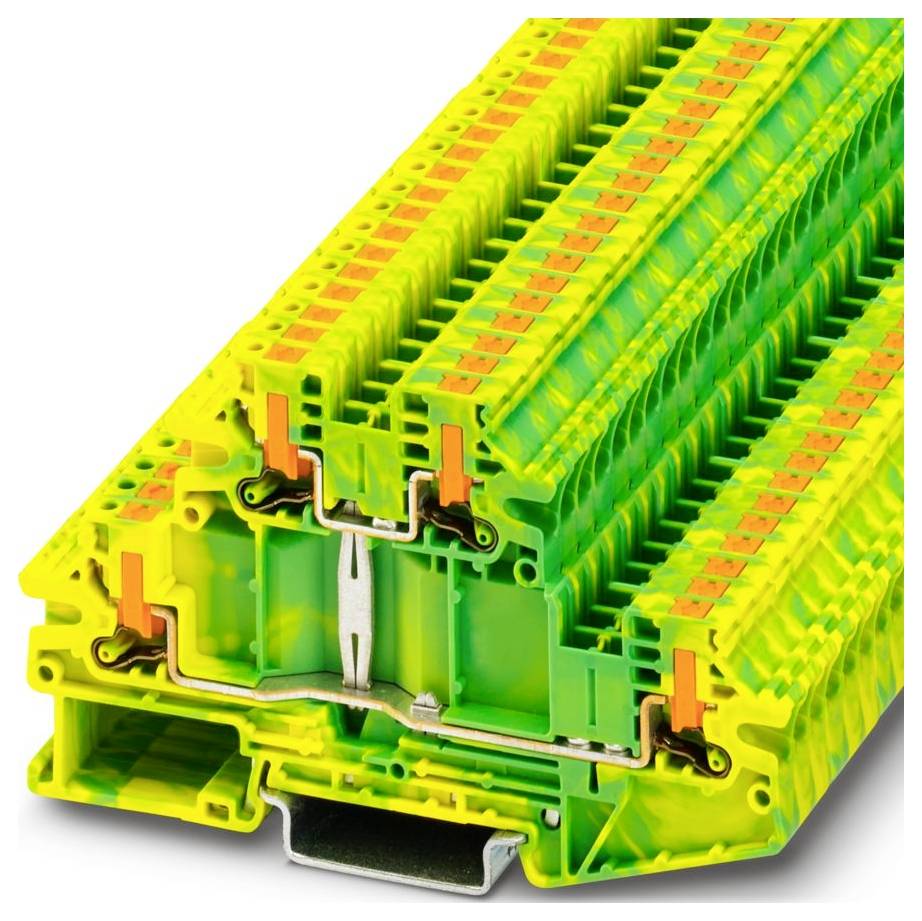

Phoenix Contact 1079076 Dual port PG terminal Total number of pins: 4 50 pc(s) Bulk
EAN:
Part number:
Item no:
Product type
Dual port PG terminal
Total no. of pins
4
Connection
Push-in connector
Content
50 pc(s)
Type
PTTBV 2,5-PE
Datasheet (PDF)
Technical specifications
- Cover plate required: Yes
- Suitable for single wire cross sections of 0.14-4 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves from 0.14 to 2.5 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.14-4 mm²
- Number of clamping points per level: 2
- Design of electrical connection 1: Other
- Design of electrical connection 2: Other
- Flammability class of insulation material according to UL94: V0
- Mounting type: Top hat rail TH35
- PEN function possible: No.
- Material of the insulating body: Other
- Type
PTTBV 2,5-PE
- Product type
Dual port PG terminal
- Total no. of pins
4
- Connection
Push-in connector
- Factory colour
Green-yellow
- Content
50 pc(s)
- Leading contact (PE)
No
- Manufacturer part #
1079076
- Number of pins
4
- Width
5.2 mm
- Height
99.5 mm
- Depth
56 mm
- max. cross section
4 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 4 mm²
- Packaging type
Bulk
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563263 Phoenix Contact 1079076 Dual port PG terminal Total number of pins: 4 50 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3563263 Phoenix Contact 1079076 Dual port PG terminal Total number of pins: 4 50 pc(s) Bulk
Description
Double level protective conductor terminal, number of connections: 4, connection type: Push-in connection, 1. And 2. Floor, rated cross-section: 2.5 mm², cross-section: 0.14 mm² - 4 mm², mounting type: NS 35 /7.5, NS 35/15, color: Green-yellow
