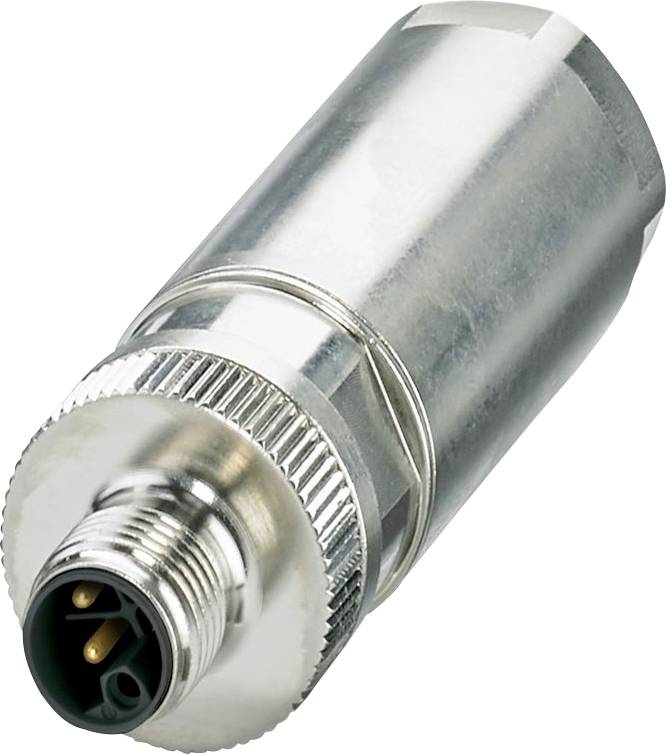

Phoenix Contact 1080239 Connector Total number of pins: 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Total no. of pins
4
Connection
Push-lock spring terminal
Content
1 pc(s)
Nominal current - rounded value
16 A
Datasheet (PDF)
Technical specifications
- Type
SACC-M12MSL-4PL-CM SH
- Product type
Connector
- Total no. of pins
4
- Connection
Push-lock spring terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
16 A
- Min. temperature
-40 °C
- Nominal current - rounded value
16 A
- Leading contact (PE)
No
- Contact material
Gold
- Cable Ø (max.)
11 mm
- Cable Ø up to
6 mm
- Case material
Brass
- Manufacturer part #
1080239
- Insulation material
UL 94 V0 standard
- Cable Ø range
6 - 11 mm
- Number of pins
4
- (Ø)
23 mm
- Feature
shielded
IP65 (when installed)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452748 Phoenix Contact 1080239 Connector Total number of pins: 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3452748 Phoenix Contact 1080239 Connector Total number of pins: 4 1 pc(s)
