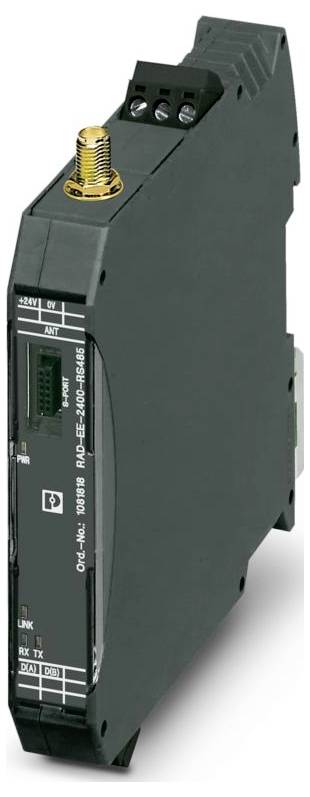

Phoenix Contact 1081818 RAD-EE-2400-RS485 Transmitter module
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection type: S-PORT (socket)
- Width 17.5 mm
- Height: 116 mm
- Depth: 114.5 mm
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -20 °C ... 70 °C;-4 °F ... 158 °F
- Ambient temperature (storage/transport): -20 °C ... 70 °C;-4 °F ... 158 °F
- Altitude: 2000 meters
- Standards/regulations: EN 300328;EN 61000-6-4;EN 61000-6-2;EN 50371;EN 60950-1
- Note: RED 2014/53/EU
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category II
- Pollution level: 2
- Permissible air humidity (operation): 20 % ... 85 %
- Vibration (operation): According to IEC 60068-2-6: 5g, 10 Hz ... 150 Hz
- Stripped length: 7 mm
- Conductor cross-section flexible min.: 0.2 mm²
- Conductor cross-section flexible max.: 2.5 mm²
- Conductor cross-section rigid min.: 0.2 mm²
- Conductor cross-section rigid max. 2.5 mm²
- All mounting positions permitted
- Frequency range: 0.15 MHz ... 80 MHz
- Identification: 508 Listed
- UL, USA / Canada: UL, USA / Canada
- Maximum power loss at rated conditions 1.152 W.
- Radio: Radio
- Description of the interface: Trusted Wireless
- Antenna connection type: RSMA (female)
- Operating mode: Serial data (activation and configuration via software PSI-CONF)
- Frequency: 2400 MHz
- Transfer length ≤ 1200 m
- Supply voltage range: 19.2 V DC ... 30.5 V DC
- CE CE
- MSIP-CRI-PCK-2901541 CERTIFICATE
- Connection technology: 2-conductor
- Permissible humidity (storage/transport): 20 % ... 85 %
- Note for application: Only for industrial use
- Input: ± 0.5 kV (symmetrical);± 1 kV (asymmetrical)
- Signal: ± 1 kV (asymmetric)
- Installation instructions: On standard rail NS 35 according to EN 60715
- Shock 16g, 11 ms
- Standard name: RED Directive 2014/53/EU
- Electromagnetic compatibility: Compliance with RED Directive 2014/53/EU
- Discharge of static electricity: Discharge of static electricity
- Contact discharge ± 6 kV (test efficiency 3)
- Air discharge ± 8 kV (test efficiency 3)
- Note: Criterion A
- Electromagnetic HF-field: Electromagnetic HF-field
- Fast Transients (Burst): Fast Transients (Burst)
- Conducted interference: Conducted interference
- Voltage 10 V
- Criteria: Criteria
- Criterion A: Normal operating behavior within the defined limits.
- Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
- Wire cross section AWG min 24
- Conductor cross-section AWG max. 14
- Emitted interference: Interference
- Status display: LED supply voltage, PWR (green);Yellow LED (reception quality, LINK); Green LED (reception data serial, RX); Green LED (transmission data serial, TX)
- Radio interference radiation according to EN 55011: EN 55016-2-3 Class A Application area industry
- Load resistance: 390 Ω (can be activated via DIP switch);150 Ω (can be activated via DIP switch);390 Ω (can be switched via DIP switch)
- Naming: Radio module
- Applications: RS-485
- MTTF: 1064 years (SN 29500 standard , temperature 25°C, duty cycle 21 %);492 years (SN 29500 standard , temperature 40°C, duty cycle 34.25 %);196 years (SN 29500 standard, temperature 40 °C, duty cycle 100 %)
- Supply: Supply
- Range: ≤ 500 m (The range can be exceeded or fallen short of very clear and depends on the environment, antenna technology and the used product)
- Colour (housing): Traffic gray B (RAL 7043)
- Radio approval Europe: Radio approval Europe
- Field strength 10 V/m
- Surge current load (SURGE): Impulse current load (SURGE)
- Maximum power consumption: ≤ 48 mA (at 24 V DC, at 25 ° C)
- Transient overvoltage protection: Yes
- Material (casing) PA 6.6-FR
- Functions: Functions
- Indirect discharge: ± 6 kV
- Suitable mounting rail type: Rail: 35 mm
- Supply voltage 24 V DC
- Transmission power minimum: 0 dBm
- Maximum transmission power: ≤ 18 dBm (adjustable via software)
- Minimum receiver sensitivity: -106 dBm (16 kBit/s);-96 dBm (125 kBit/s);-93 dBm (250 kBit/s)
- Wireless
- System limits: System limits
- Number of supported subscribers: ≤ 250 (addressing via software PSI-CONF)
- Serial: RS-485: Serial: RS-485
- Data rate: 16 kBit/s (adjustable);125 kBit/s (factory setting, adjustable);250 kBit/s (adjustable)
- Serial: Configuration interface: Serial: Configuration interface
- Direction: Bidirectional
- Channel spacing 1.3 MHz
- Number of channel groups: 8
- Number of channels per group: 55
- Radio approvals: Europe, USA, Canada, other countries in the e-shop
- Frequency band: 2.4 GHz
- Trusted Wireless standard
- Radio approval Australia, RCM: Radio approval Australia, RCM
- Radio approval Brazil, ANATEL: Radio approval Brazil, ANATEL
- Radio approval India, WPC: Radio approval India, WPC
- Radio approval Mexico, IFT: Radio approval Mexico, IFT
- Approval of South Korea, KC: Approval of South Korea, KC
- Type
RAD-EE-2400-RS485
- Product type
Transmitter module
- Operating voltage
24 V DC
- Manufacturer part #
1081818
- Dim
(L x W x H) 114.5 x 17.5 x 116 mm
- Operating temperature
-20 °C (min)
- Min. operating temperature
-20 °C
- Width
17.5 mm
- Height
116 mm
- Length
114.5 mm
- Max. ambient temperature
70 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563375 Phoenix Contact 1081818 RAD-EE-2400-RS485 Transmitter module
User & Safety Instructions
User & Safety Instructions 3563375 Phoenix Contact 1081818 RAD-EE-2400-RS485 Transmitter module
Description
2.4 GHz radio transceiver with RS-485 interface, antenna connection RSMA (female), point-to-point, star and mesh networks up to 250 stations, range up to 500 m (free view), used worldwide
