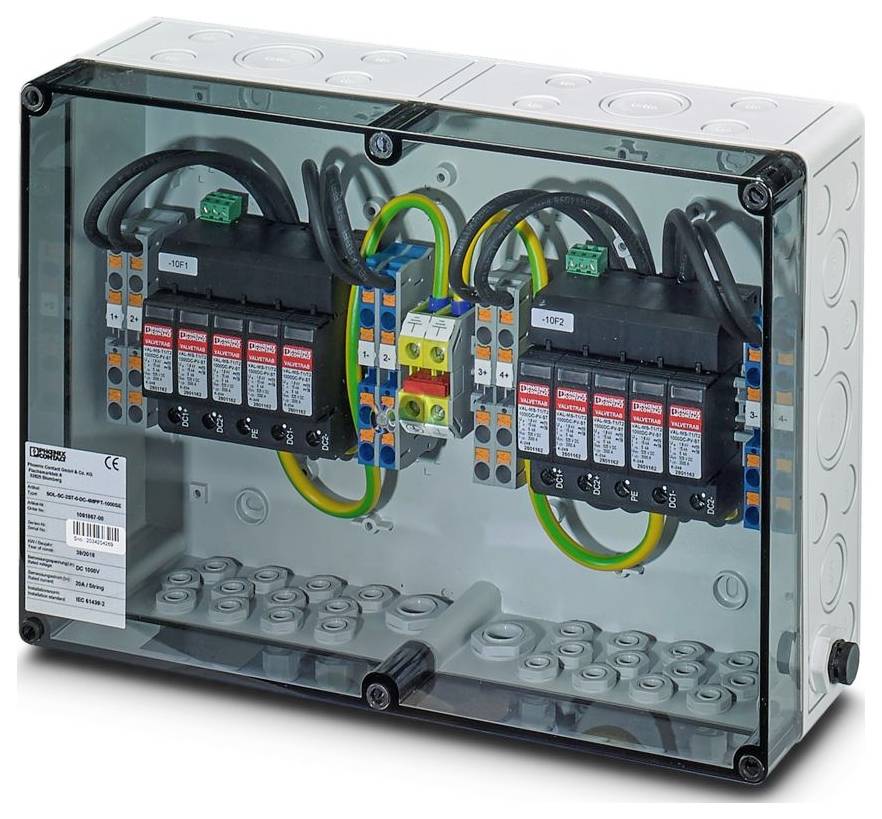

Phoenix Contact 1081867 SOL-SC-2ST-0-DC-4MPPT-1000SE Generator junction box
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- MPP Voltage Un. Max. 1000 V DC
- Protection system: IP65
- Ambient temperature (operation): -20 °C - +55 °C
- Material housing: Polycarbonate
- Material cover/door: Polycarbonate (transparent)
- Number of inputs (strings): 2 (per MPP tracker)
- Number of supported MPP trackers: 4
- Number of outputs (MPP tracker): 4
- Number of outputs (± per MPP tracker): 1 (per MPP tracker)
- Type of cable entry: Cable gland
- Push-in connection
- Product type
Generator junction box
- Dim
(W x H x D) 361 x 254 x 111 mm
- Content
1 pc(s)
- Width
361 mm
- Height
254 mm
- Depth
111 mm
- System voltage
1000 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563363 Phoenix Contact 1081867 SOL-SC-2ST-0-DC-4MPPT-1000SE Generator junction box
User & Safety Instructions
User & Safety Instructions 3563363 Phoenix Contact 1081867 SOL-SC-2ST-0-DC-4MPPT-1000SE Generator junction box
Description
Generator junction box, MPP voltage: 1000 VDC, number of strings: 2, number of supported MPP trackers: 4, equipment: Without special equipment, overvoltage protection: T1, type of cable entry: Cable gland.
The Solarline generator connection boxes (GAKs) are used in small roof-mounted systems as well as in large open-field systems. The main tasks of the GAKs are the overvoltage protection of the PV system, if necessary the collection of strings and the looping through of the protective equipotential bonding conductor to the local equipotential bonding.
Further functions are optional and dependent on the equipment.
Examples of optional functions are the protection of the strings by means of string fuses as well as the activation of the strings via DC switch disconnectors or DC fire switch.
The full functional scope of the GAKs can be derived from its article name (see user note for the type key of the GAKs, which can be downloaded from the "Downloads" area).
This text is machine translated.
The Solarline generator connection boxes (GAKs) are used in small roof-mounted systems as well as in large open-field systems. The main tasks of the GAKs are the overvoltage protection of the PV system, if necessary the collection of strings and the looping through of the protective equipotential bonding conductor to the local equipotential bonding.
Further functions are optional and dependent on the equipment.
Examples of optional functions are the protection of the strings by means of string fuses as well as the activation of the strings via DC switch disconnectors or DC fire switch.
The full functional scope of the GAKs can be derived from its article name (see user note for the type key of the GAKs, which can be downloaded from the "Downloads" area).
This text is machine translated.
